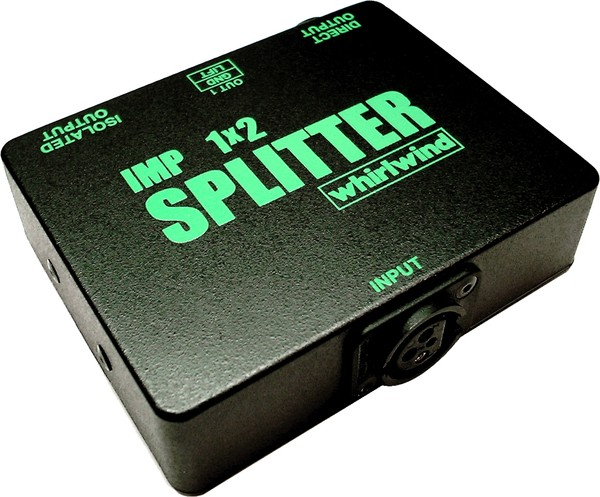

Whirlwind SP1X2 Mic Splitter with 1 In, 1 Direct Out and 1 Isolated Out

Whirlwind's SP1X2 is a 1 x 2 line-level splitter that provides one direct and one transformer-isolated outputs from a line-level input. The signal level at each transformer isolated output is 6 dB lower than the level of the direct output. The transformer outputs have individual ground lift switches.

Specifications

• Operating Level: -0.5dB to +4dB
• Frequency Response: 20Hz-20kHz ± 0.63dB
• Max input level: -0.5 dBu
