FSR, Inc RGB-4
1x 4 RGBHV 5-BNC Video Dist Amp

OUR PART #:  RGB-4

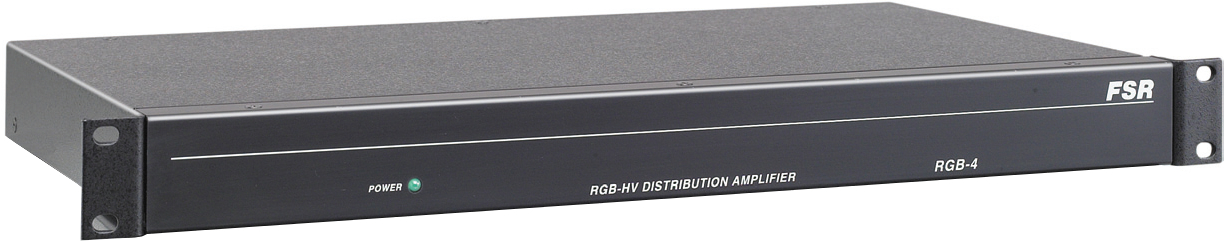

The FSR RGB-4 is an ultra high resolution, ultra high bandwidth 1 x 4 video distribution amplifier made for applications requiring the highest possible video quality.
Learn More
Our Price: $517.79
List Price: $569.00
You save 9%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

FSR, Inc RGB-4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The FSR RGB-4 is an ultra high resolution, ultra high bandwidth 1 x 4 video distribution amplifier made for applications requiring the highest possible video quality. The first 2 output channels include independent cable equalization permiting long cable runs while maintaining exceptional signal integrity for even the highest video resolutions.
Not only does this unit have over 400 MHz of bandwidth but also special FSR advanced sychronizing circuitry, ensuring a rock stable video image at any resolution and signal level.

The first 2 outputs have independent equalization to maintain high quality signal integrity for all video resolutions. 175 foot cable runs are possible with 180 MHz of full amplitude bandwidth and +/- 0.5 dB flatness to 130 Mhz, plus a 0.2V p-p input signal yields 316 MHz of bandwidth and +/- 0.75 dB flatness to 250 MHz, which means that the signal you feed into the RGB-4 will arrive at the far end of the cable with an virtually immeasurable amount of loss with no distortion due to peaking effects.

You work hard to generate the best possible image, so don't trust that image to long cable runs. The first 2 channels permit independent equalization so you can deliver your image to 2 different locations with the same color and clarity that you created it with-high bandwidth, flat frequency response, and advanced sync processing-just what you need. Additionally, the RGB-4 has a universal onboard power supply that can be used for operation anywhere in the world.

Even using standard 75 ohm BNC connectors the RGB-4 is housed in a 1RU metal enclosure which frees up valuable rack space.

Typical Applications:

  • Boardrooms
  • Houses of Worship
  • Control Rooms
  • Classrooms
  • Staging and Rental


FSR RGB-4 Key Features:

  • Minimum 400 MHz of bandwidth fully loaded
  • +/- 0.5 dB flatness to 300 MHz typical
  • Advanced sychronizing circuitry
  • (5) 75 Ohm BNC connectors for the input and each output
  • Independent cable equalization control for the first 2 output channels
  • Compatible with all RGB-HV and HD TV standards

FSR RGB-4 Specifications:

Video Input

  • Number/Type: 1 RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, or 3 CV
  • Connectors: 5 female BNC
  • Impedance: 75 Ohms
  • Output Offset: +/-20 mv
  • Level (nominal): Analog 0.7V p-p
  • Level (maximum): 2V p-p

Equalized Video Output

  • Number/Type: 2 (each independent of the other) RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, or 3 CV
  • Connectors: 2 by 5 female BNC
  • Bandwidth:
    • This performance data is based on the CDA-2EQA plus the specified length of WP8255 (West Penn) cable with a full amplitude (0.7V p-p) signal applied.
      • 50' cable 325 MHz (-3dB) 0-261 MHz +/-0.75dB
      • 100' cable 245 MHz (-3dB) 0-200 MHz +/-0.75dB
      • 150' cable 180 MHz (-3dB) 0-133 MHz +/-0.75dB
    • This performance data is based on the CDA-2EQA plus the specified length WP8255 (West Penn) cable with a small amplitude (0.2V p-p) signal applied.
      • 50' cable 360 MHz (-3dB) 0-300 MHz +/-0.75dB
      • 100' cable 335 MHz (-3dB) 0-285 MHz +/-0.75dB
      • 150' cable 316 MHz (-3dB) 0-262 MHz +/-0.75dB
  • Level (nominal): Unity / User adjustable via potientiometer
  • Impedance: 75 ohms
  • Design Cable: West Penn WP8255 or equal

Video Output

  • Number/type: 2 (RGB-4), 4 (RGB-6), RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, or 3 CV
  • Connectors: All female BNC
  • Bandwidth: 400 MHz @ -3 dB (minimum) fully loaded with a 0.7V p-p input signal
  • Flatness: +/-0.5 to 300 MHz (typical) fully loaded with a 0.7V p-p input signal
  • Gain: Unity (buffered)
  • Impedance: 75 Ohms

Sync

  • Input level: 0.5 Vp-p to 5.0 Vp-p
  • Output level: 5.0 Vp-p into Hi-Z, 2.4 Vp-p into 75 ohm
  • Delay Time: 15nS
  • Rise & Fall Time: 1nS
  • Input Impedance: 75 ohms
  • Output impedance: 75 ohms
  • Polarity: Positive or negative
  • Horizontal frequency: 15 kHz - 200 kHz
  • Vertical frequency: 50 Hz - 150 Hz

General

  • Power: 100VAC to 240VAC, 50/60 Hz, internal, autoswitch .65A/115V, .4A/230V
  • Enclosure: Metal 1 Rack Unit
Add to Cart
