AJA Video Systems Inc R44E
4 Channel D/A Converter - SDI to NTSC/PAL

OUR PART #:  R44E

You'll get 4 composite analog monitoring outputs from 4 separate SDI inputs with the AJA Video R44E.
Learn More
Our Price: $990.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

AJA Video Systems Inc R44E
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

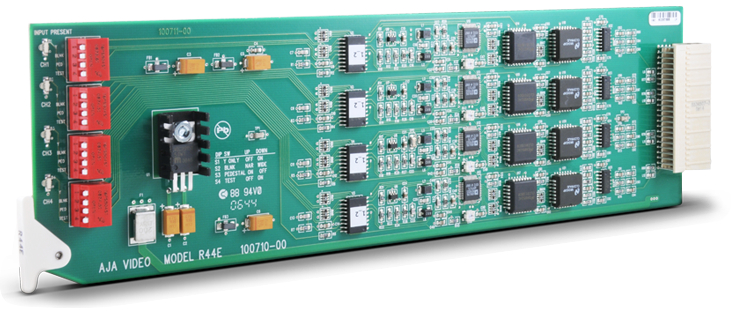

You'll get 4 composite analog monitoring outputs from 4 separate SDI inputs with the AJA Video R44E. It features a separate D/A converter with a 10-bit DAC and 8-bit broadcast encoding for each channel, with no clipping for values below black and above white. A test pattern generator with separate user-selectable blanking controls are provided for each channel, as well as automatic NTSC or PAL configuration. Mountable in the AJA R-Series Frames as well as other standard industry frames.

AJA Video R44E Features:

  • 4 Channel SDI to NTSC/PAL Converter
  • 4 Separate SDI Inputs
  • 4 Separate Composite Analog Outputs
  • Onboard Test Pattern
  • Configurable Pedestal
  • 40 Channels of Conversion in 2 RU

AJA Video R44E Specifications:

  • Inputs: 4 Channel SDI (SMPTE 259M) Inputs, 4x BNC
  • Outputs: 4 NTSC/PAL, 4x BNC
  • Frequency Response: +/- .25dB to 5Mhz
  • User Controls:
    • Dipswitch (Separate Control For Each Channel)
    • Composite/YC
    • Pedestal
    • H/V Blanking
  • Size:
    • Fits AJA R-Series Rack Frames
    • Compatible With Leitch & regular 6800 Series Rack Frames
  • Power: 8 watts
