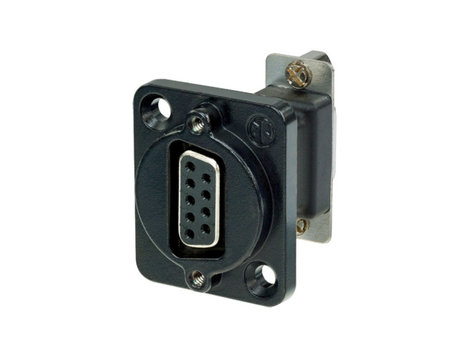

Neutrik NADB9FF-B
9-Pin Female to Female DSUB Feedthrough, Black Housing

OUR PART #:  NADB9FF-B

The Neutrik NADB9FF-B is a 9 pin female to female D-SUB feedthrough connector with D-shape black housing.
Learn More
Our Price: $11.92
List Price: $15.00
Save up to 33% when you order by quantity!
  • Buy 25: $10.77 each.
  • Buy 50: $10.38 each.
  • Buy 100: $10.00 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NADB9FF-B
Qty:
Similar Products

The Neutrik NADB9FF-B is a 9 pin female to female D-SUB feedthrough connector with D-shape black housing.

Neutrik NADB9FF-B Features:

  • Ideal for audio networking and integration of equipment into video systems
  • Universally accepted standard D-shape housing

Neutrik NADB9FF-B Specifications:

  • Contact Resistance:  30 mOhms
  • Dielectric Strength:  > 0.5 kVac
  • Insulation Resistance:  > 5 GigOhms
  • Number of Electrical Contacts:  9
  • Rated Current per Contact:  3 A
  • Rated Voltage:  50 V AC
  • Wiring:  Feedthrough
  • Chassis Shape:  D
  • Contact Plating:  Au
  • Contacts:  Brass (CuZn39Pb3)
  • Insert:  Steel, tin plated, PBT
  • Shell:  Zinc diecast (ZnAl4Cu1)
  • Shell Plating:  Black chromium
  • Flammability:  UL 94 V-0
  • Temperature Range:  -25°C to +85°C
