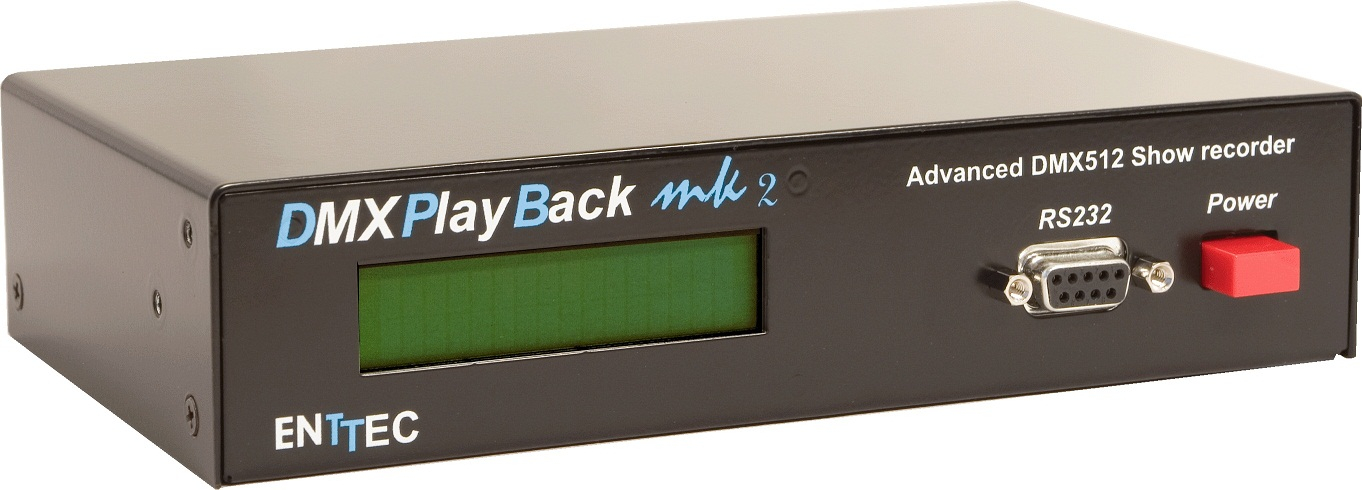

Enttec DMXPlayBack MK2
DMX Light Show Record/Playback Device

OUR PART #:  70014

With Enttec's DMXPlayBack MK2 unit [Manufacturer Part #: 70014], you'll be able to record and store a light show...
Learn More
Our Price: $314.00
List Price: $330.00
You save 5%!
Write the first review.
Enttec DMXPlayBack MK2
Please call for availability.

Related Products

With Enttec's DMXPlayBack MK2 unit [Manufacturer Part #: 70014], you'll be able to record and store a light show, then just let it playback the show for however long you like. The DMXPlayBack MK2 is great for unattended/automated light shows or continuously running demonstrations, and can store up to 500 static scenes per show.

A show can be programmed to start when the unit is powered on, or use an external RS232 trigger to start/stop a show. Plus, it even allows you to control the PlayBack from any RS232 capable device, including: show control system, Hyper Terminal, and basic stamp (check the "Enttec RS-232 Protocol" item under the "Documentation" tab for a complete set of commands).

This handy device has even been used with more sophisticated control systems like AMX™ systems, where multiple DMXPlayBack units have been implemented to output DMX512 pre recorded scenes, featuring the loading and fading of the scenes commanded from RS232.

Real time control of your lighting fixtures is also possible; when you change a parameter on a PalmPilot or PC the changes occur on the DMX output too. It's also very useful as a debugging tool.


  • Architectural
  • Trade Shows
  • Restaurants
  • Retail Stores
  • More

Enttec DMXPlayBack MK2 Includes:

  • DMXPlayBack MK2 Unit
  • PC Serial Port Cable (DB9 to DB9 Connector)
  • Software
  • User manual

Enttec DMXPlayBack MK2 Major Features:

  • Scene capture from the DMX512 input
  • Up to 12 Shows
  • Up to 65,535 Scenes per Show
  • Fade times and delay times (0 to 100 minutes in 0.1sec steps)

Enttec DMXPlayBack MK2 Specifications:

  • Manufacturer Part #:70014

  • Functional:
    • Record up to 12 shows which can contain all or some of the channels patched
    • Up to 65,535 Scenes total and per show
    • Actual number of cues that will fit in storage determined by total number of channels used. For 512 channel show, 12 shows can each store 80 cues before compression is applied. (Optional compression increases storage efficiency, but interferes with RS232 commands to Load or Jump to scene)
    • RS232 port allows interconnection with Enttec DMXPlayback Remote (sold separately) for seamless manual triggering of 12 shows, and Show Editor software
    • Supports a wide range of RS232 commands allowing integration with other control systems. See Enttec RS232 Protocol for details
    • LCD display provides status information on current show and fade position.
    • Includes Show Editor software (required to store shows) which is compatible with Windows 95/98/ME/NT/2000/XP
    • ShowEditor can take snapshots of DMX input or create new scenes from scratch, including support for moving lights with its Intensity, Color, Beam, and Focus Inspector
    • External power supply for 9-12V DC, or use AC power input on 2.1mm DC Jack
    • CE, FCC certified
  • General:
    • Power Requirements: 110v-240v AC
    • Dimensions (WxHxD): 7.53” x 1.75” x 4.14” (191 x 44.45 x 105mm)
    • Weight: 1.65 lbs (0.75 kg)
    • Shipped Weight: 3.19 lbs (1.45 kg)
    • Rack: 1RU high x ½ RU wide
    • Operating Environment: 0°-50°C in noncondensingenvironment
