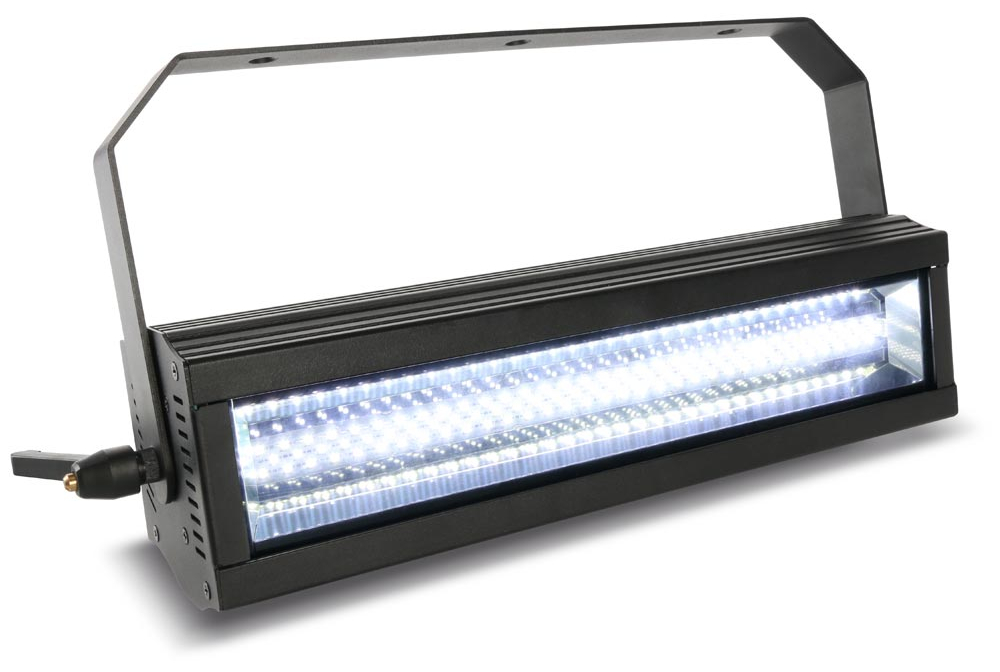

Martin Professional RUSH Strobe CWL
99x 3W LED Strobe, Manufacturer Part #: 90480115

OUR PART #:

The Martin Professional RUSHâ„¢ Strobe CWL is a great effect fixture for lounge bars, mobile DJs, cruise ships, and lots of other venues.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The Martin Professional RUSHâ„¢ Strobe CWL is a great effect fixture for lounge bars, mobile DJs, cruise ships, and lots of other venues. From single flash to blinder effect, this compact, bright LED linear strobe features 99 x 3 W Cree XP-D LEDs using a reflector design that gives a traditional Xenon strobe look with a 17,000 lumen output.

Martin Professional RUSH Strobe CWL Includes:

  • RUSH Strobe CWL Fixture
  • 1.5 m (5 ft.) Power Cable with Mains Plug
  • Mounting Bracket

Martin Professional RUSH Strobe CWL Features:

  • Compact LED Linear Strobe
  • 17,000 lumens output
  • Color System: 99 x cold white LED
  • 87° Beam Angle
  • 8 Strobe Macros

Martin Professional RUSH Strobe CWL Specifications:

  • Manufacturer Part #: 90480115

Physical

  • Dimensions: Length: 19.9" L x 5.5" W x 8.9" H (505 x 140 x 226 mm)
  • Weight: 8.9 lbs (4.0 kg)

Dynamic Effects

  • Strobe:
    • Rate: 0 - 25 Hz
    • Duration: 0 - 10 ms (50 Hz supply), or 0 – 8.3 ms (60 Hz supply)
  • Blinder effect:
    • Continuous with auto fade Special effects:
      • Ramp up/down
      • Up-down
      • Random flash
      • Lightning
      • Blinder
      • Single flash

Control and Programming

  • Control options: DMX, stand-alone, master/slave, sound trigger
  • DMX channels: 1 or 4 Setting and addressing: Control panel with LCD display
  • Compliance: USITT DMX512/1990

Optics

  • Beam angle: 87°
  • Light source: 99 x 3 W CREE white XB-D LED
  • Color temperature: 7000-8000 K Minimum
  • LED lifetime: 50 000 hours (to >70% luminous output)*
    *Figure obtained under test conditions.

Construction

  • Color: Black Housing: Steel and aluminum
  • Protection rating: IP 20

Installation

  • Mounting points: Bracket with 13.5 mm holes
  • Orientation: Any
  • Location: Indoor use only, must be fastened to surface or structure
  • Minimum distance to illuminated surfaces: 0.2 m (8 in.)
  • Minimum distance to combustible materials: 0.1 m (4 in.)
  • Minimum clearance around fans and vents: 0.1 m (4 in.)

Connections

  • AC power in/thru: Neutrik PowerCon
  • DMX data in/thru: 3-pin and 5-pin locking XLR

Electrical

  • AC power: 100-240 V nominal, 50/60 Hz
  • Power supply unit: Diode bridge
  • Typical Power and Current: 110 V, 60 Hz: 2.5 A, 250 W, PF 0.9 230 V, 50 Hz: 2.7 A, 380 W, PF 0.6
    Measurements made at nominal voltage. Allow for a deviation of +/-10%. PF = Power Factor

Environmental/Thermal

  • Cooling: Forced air (temperature regulated, low noise)
  • Maximum ambient temperature (Ta max.): 104° F (40° C)
  • Minimum ambient temperature (Ta min): 32° F (0° C)

Approvals

  • EU safety: EN 60598-2-17 (EN 605981-1) EU EMC: EN 55015, EN55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573 US EMC: FCC Part 15 Class A
  • Canadian safety: CSA 22.2 No. 166
  • Australia/NZ: C-Tick N4241
3-Pin XLR Male Termination Plug (120 Ohms)
Martin Professional 91613017 3-Pin XLR Male Termination Plug (120 Ohms)
Link termination is achieved by inserting a 120 ohm resistor across the signal + (hot) and signal - (cold) wires; it is important for trouble-free communication. If a splitter is used, terminate each branch of the link. The easiest way to ...
