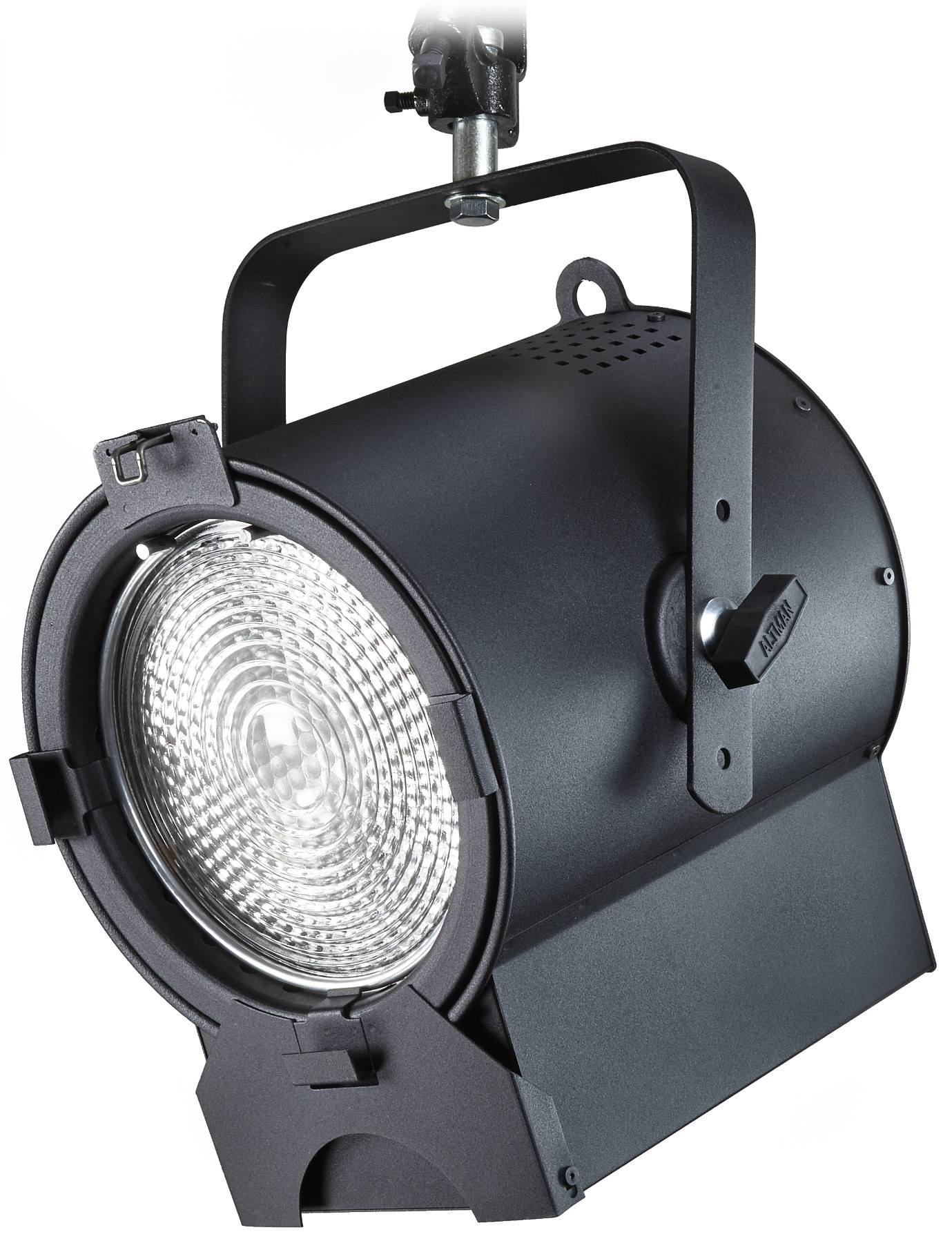

Altman Pegasus8
8" 140W, 3000K LED Fresnel


The Altman Pegasus8 [model PEG8-3K] is part of their Pegasus line of 8" white output LED Fresnels that offer both Mains Dimmability and DMX control all in one fixture.
Learn More
Selected Model Price: $1,065.60
List Price: $1,332.00
Save up to 20%!
Write the first review.
Altman Pegasus8
Select a Model: (shipping times are approximate)

Related Products

The Altman Pegasus8 [model PEG8-3K] is part of their Pegasus line of 8" white output LED Fresnels that offer both Mains Dimmability and DMX control all in one fixture. Designed to replicate the soft light output expected from a Theatrical or Studio Fresnel, the 8" LED Pegasus series fixtures, at under 150 Watts, keep right up with the output of their 750 Watt incandescent counterparts. The PEG8-3K model is the 3000K white light output version.

You can plug these fresnels directly into your theatrical phase cut dimmers, whether they are forward or reverse phase, under Mains Dim Control, and have been specially designed to replicate the smooth dimming curve of their incandescent twin, and a 120/230 switch on the unit lets you set the dimming curve for both 120 volt and 230 volt dimming systems.

NOTE: Available finishes include: Black, White, and Silver (please specify when ordering), with custom colors also available (consult your Sales Pro for more information).

Altman PEG8-3K Pegasus6 Includes:

  • PEG8-3K Pegasus8 Fixture
  • Color Frame
  • C-Clamp
  • 36” Black Safety Cable with Spring Clip
  • 5’ 20A PowerCON With Edison Connector

Altman PEG8-3K Pegasus8 Features:

  • Delivers the output performance of its incandescent counterpart
  • Mains Dimmable or DMX Controlled
  • Power CON & DMX in/thru connections
  • Fully RDM Compliant
  • Electronic Universal power supply 100-240VAC
  • Fully homogenized beam
  • High resolution digital dimming for both Mains Dimmable and DMX control.
  • 10°-50° spot to flood beam spread
  • 50,000 hours of life expectancy
  • All Metal Construction
  • Spot to Flood Focus adjustment
  • C-Clamp, Color Frame and Safety Cable included
  • Proudly made in the USA

Altman PEG8-3K Pegasus8 Specifications:

  • Output : >11,620 Lumens LED Color Temp. Dependent
  • Materials: Construction employs all corrosion-resistant materials and hardware
  • Control: Mains Dimmable and DMX (Full RDM Compliance)
  • Light Engine: 140W, 3000K White
  • Lumens/Watt: 83.0 LED Color Temp Dependent
  • Quiescent Load: 12W @120VAC (Only Under DMX Control) 0.1A
  • CRI: >90
  • Input Voltage: 100-240 VAC 50/60hz
  • Amperage:
    • 1.16A @120VAC
    • 0.59A @ 240VAC
  • Inrush Current: 15Apk Max 1/2 Cycle @ 230VAC
  • Cooling: Silent Active Cooling (<19dBa @ 0.5 M)
  • Ambient Temperature: 32° to 104° F (0° to 40° C)
  • BTU’s/Hr: 425.5
  • Beam Angle: Ranging from 10° to 50°
  • Weight: 14.2 lbs (6.44 kg) with included C-Clamp and Yoke
  • Rating: ETL, cETL and CE PENDING
