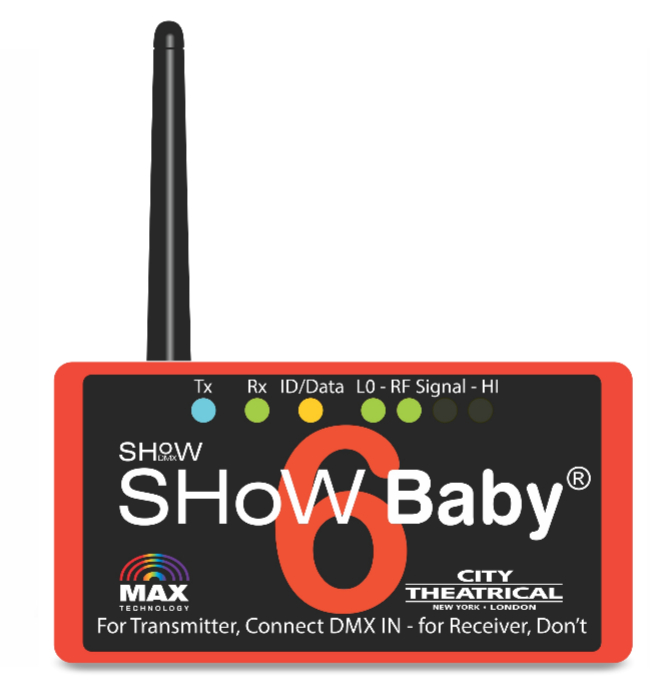

City Theatrical Show Baby 6 Wireless DMX Transceiver Image 1
City Theatrical Show Baby 6 Wireless DMX Transceiver Image 2
City Theatrical Show Baby 6 Wireless DMX Transceiver
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Experience the ultimate simplicity of plug and play with the power of SHoW DMX Neo® Max Technology with City Theatrical's Show Baby® 6. The SHoW DMX SHoW Baby 6 is incredibly easy to use and affordable, while for the first time offering the quality and advanced features of SHoW DMX Neo Maximum Bandwidth Technology. SHoW DMX Maximum Bandwidth Technology allows SHoW DMX users to avoid nearly all broadcast interference by confining their radio output to the general area of Wi-Fi channel 14, which is not used at all in the U.S. and is used relatively less in other countries. The new, sixth, SHoW ID in SHoW Baby 6 gives SHoW Baby Max Technology capability to help avoid interference in a crowded spectrum.

The SHoW DMX SHoW Baby 6 represents a breakthrough in plug-and-play wireless DMX and RDM transmission - a single unit that can be used either as a wireless DMX Transmitter or Receiver. Set-up couldn’t be simpler with SHoW DMX SHoW Baby’s instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don’t.

When a DMX cable is plugged into the SHoW DMX SHoW Baby’s DMX Input, the SHoW DMX SHoW Baby senses the connection and configures itself as a transmitter. If no cable is connected to the DMX Input, the SHoW Baby configures itself as a Receiver. All you need now to set up a SHoW DMX wireless DMX system is two SHoW DMX SHoW Baby units and two minutes!

Includes

  • CL2 12VDC Power Supply with international plug set
  • 2dBi Omni-directional Antenna
  • Mounting Bracket

Features

  • SHoW DMX Neo™ 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio
  • Wirelessly broadcast and receive a full Universe (512 slots) of DMX
  • Robust wireless DMX512 and RDM data transmission
  • 6 Possible SHoW IDs – including the original SHoW Baby 201, and Neo Max
  • Full compatibility with previous SHoW Babys
  • Extremely low 7mS latency
  • RDM proxy and responder functions
  • Instant plug-and-play configuration: For aTransmitter, connect DMX IN, for a Receiver, don’t!
  • 72mW ETSI broadcast power
  • Neutrik® 5P XLR Connectors for DMX IN and DMX OUT

Specifications

  • Model: SHoW DMX SHoW Baby® 6
  • Applications: Indoor Shows, Events, Environments, Clubs, Schools, Churches
  • Catalog Number: 5702M
  • Broadcast Power:
    • 1mW ETSI
    • 14mW ETSI
    • 28mW ETSI
    • 72mW ETSI
    • (Settable only through RDM)
  • SHoW DMX Neo Broadcast Modes:
    • SHoW ID 201: Adaptive Neo Full Bandwidth
    • SHoW ID 102: Neo Full Bandwidth
    • SHoW ID 117: Neo Low Bandwidth
    • SHoW ID 133: Neo Mid Bandwidth
    • SHoW ID 149: Neo High Bandwidth
    • SHoW ID 165: Neo Max Technology
  • Mechanical:
    • NEMA 1 Steel and ABS enclosure
    • Aluminum Mounting Bracket for ½” Hardware for C-Clamp or other hanging hardware
  • Electronic/ Functional Features:
    • DMX IN and OUT via Neutrik 5P XLRs
    • LED indicators:
    • Tx (set as transmitter)
    • Rx (set as receiver)
    • Data (data present): color indicates SHoW ID
      • Green – 201
      • Cyan – 102
      • Magenta – 117
      • White – 133
      • Red – 149
      • Yellow – 165
    • RF Signal Strength (4 LEDS) Low to High
  • Compliance: RoHS Certified, CE Certified, and FCC Certified
  • DMX Burst Modes: Full (512 Slots)
  • Ethernet Protocols Supported: N/A
  • Hopping Patterns: 3
  • Show IDs: 6
  • Radio Transceiver: CTI 5792
  • RF Sensitivity: -95dBm
  • Maximum Line of Sight Ranges with standard antenna:
    • Indoor: 300’
    • Outdoors: 1500’
  • RDM Features:
    • RDM Proxy
    • RDM Responder
  • Compliance Certifications: FCC, IC, CE
  • Power: 12VDC 200mA (100-240VAC 50/60 Hz to 12VDC Adapter provided)
  • Dimensions (WxHxD): 3.625”x 1.8”x 3” (92 x 46 x76mm)
  • Weight: 6.4 oz (0.18 g)
