Pathway Connectivity Choreo 512 512-Channel DMX Controller

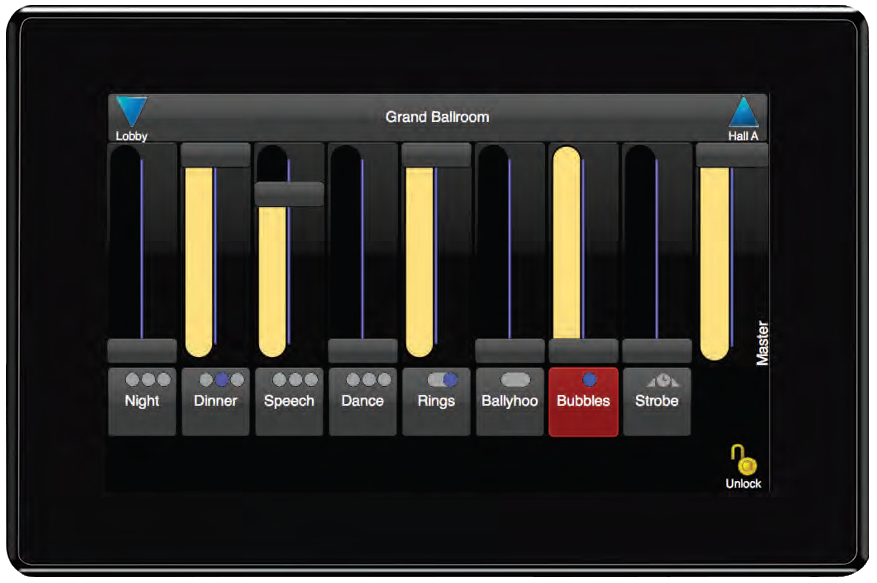

The Pathway Connectivity Choreo™512 is part of Pathway's Choreo series, gives full-featured, stand-alone programming and playback for DMX512 lighting systems, all within a 3-gang wall box, with 512 output DMX addresses. Choreo's natural language interface makes fast and simple work out of light selection, attribute adjustment, reference library, cues and memories. Once you have it programmed, you can use the screen as a virtual button/fader station, or run shows from time code, serial input, or contact closures.

Choreo uses the same programming philosophy and concepts as the Pathway Cognito.

Pathway Connectivity Choreo512 Features:

• 512 Output DMX Addresses
• DMX512 Input Trigger
• Power-over-Ethernet operation simplifies installation
• No hard limits on number of memories, cues, chases or playbacks
• Pathport Protocol, ANSI E1.31 sACN, Art-Net, KiNET
• 7" capacitive touchscreen with silent, capacitive operation
• Natural language control uses “real-world” terms and labels instead of channel numbers and data-level values
• Edit all show attributes including color, intensity, position and timing from the touchscreen without a computer or console
• Continually updated fixture library, currently with over 2000 commonly available, multiple-attribute lights
• Context-sensitive Help Overlays provide assistance without interrupting work flow
• Timecode-based playback and astronomical or time clock event triggering
• USB port for updates and showfile backup
• Seamless file transfer with Pathway Connectivity's Cognito2 lighting consoles
• Support for neato™, a free iOS app for remote control of lights and memories via WiFi
• Free downloadable off-line editor (OLE) for Windows or Mac
• Standards:
  • ANSI E1.11 DMX512-A
  • ANSI E1.31 streaming ACN
  • IEEE 802.3AF Power-over-Ethernet
  • RS-232/485
  • RoHS 2002/95/EC

Pathway Connectivity Choreo512 Specifications:

• DMX512 OUT Ports: 2* * Universe 1 repeated on both OUTPUT ports
• PoE or regulated 24VDC input
• 15 watts maximum power consumption
• Operating Conditions: 32°F-105°F (0°C to 40°C );
• 10-90% relative humidity, non-condensing
• Manufacturer Part #: 0700-7302BL
• Physical
  • 2.5 lbs (1.1 kg)
  • 7.9" W x 1.59" D x 5.2" H (200 x 40 x 132mm)
