Chief Manufacturing PIWRFUB
Large Low-Profile In-Wall Display Mount with Universal Bracket

OUR PART #:  PIWRFUB

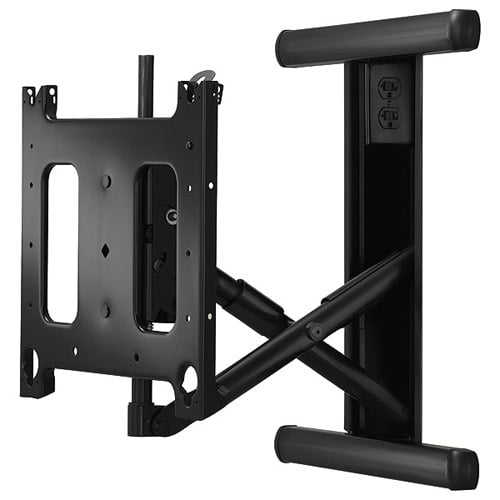

Chief Manufacturing's PIWRFUB is a 15" in-wall swing arm display mount designed to create a low-profile installation when mounting a flat screen display with articulation.
Learn More

Add to Cart to See Price

Write the first review.
Chief Manufacturing PIWRFUB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Chief Manufacturing's PIWRFUB is a 15" in-wall swing arm display mount designed to create a low-profile installation when mounting a flat screen display with articulation.

Chief Manufacturing PIWRFUB Features:

  • Limitless centering on the wall between 16" center studs without cutting studs
  • Low profile design ensures the mount remains concealed behind the flat panel
  • Centris Technology uses the center of gravity to achieve smooth, fingertip tilt
  • ClickConnect Technology provides an audible click to confirm the flat panel is locked in place
  • Easy connect/disconnect with no tools needed
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management

Chief Manufacturing PIWRFUB Specifications:

  • Color:  Black
  • Lateral Shift:  5" (127.mm)
  • Manual Height Adjustment:  1
  • Maximum Extension:  15" (381.mm)
  • Minimum Depth:  1.7" (43.2mm)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
  • Notes:  Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
  • Orientation:  Landscape, Portrait
  • Overall Dimensions:  22.8" H x 20.4"W x 5.5" D (580 x 518 x 141mm)
  • Pivot (numerical value):  +/- 40.3°(depending on screen width)
  • Post-Installation Leveling (Roll):  Yes
  • Shipping Weight:  64.00 lbs
  • Solution Type:  Universal
  • Tilt:  + 2° , - 15°
  • Typical Screen Sizes:  42 - 71"
  • Wall Stud Compatibility (inches):  16
  • Weight Capacity:  200 lbs (90.7kg)
