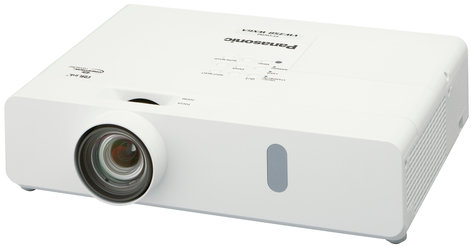

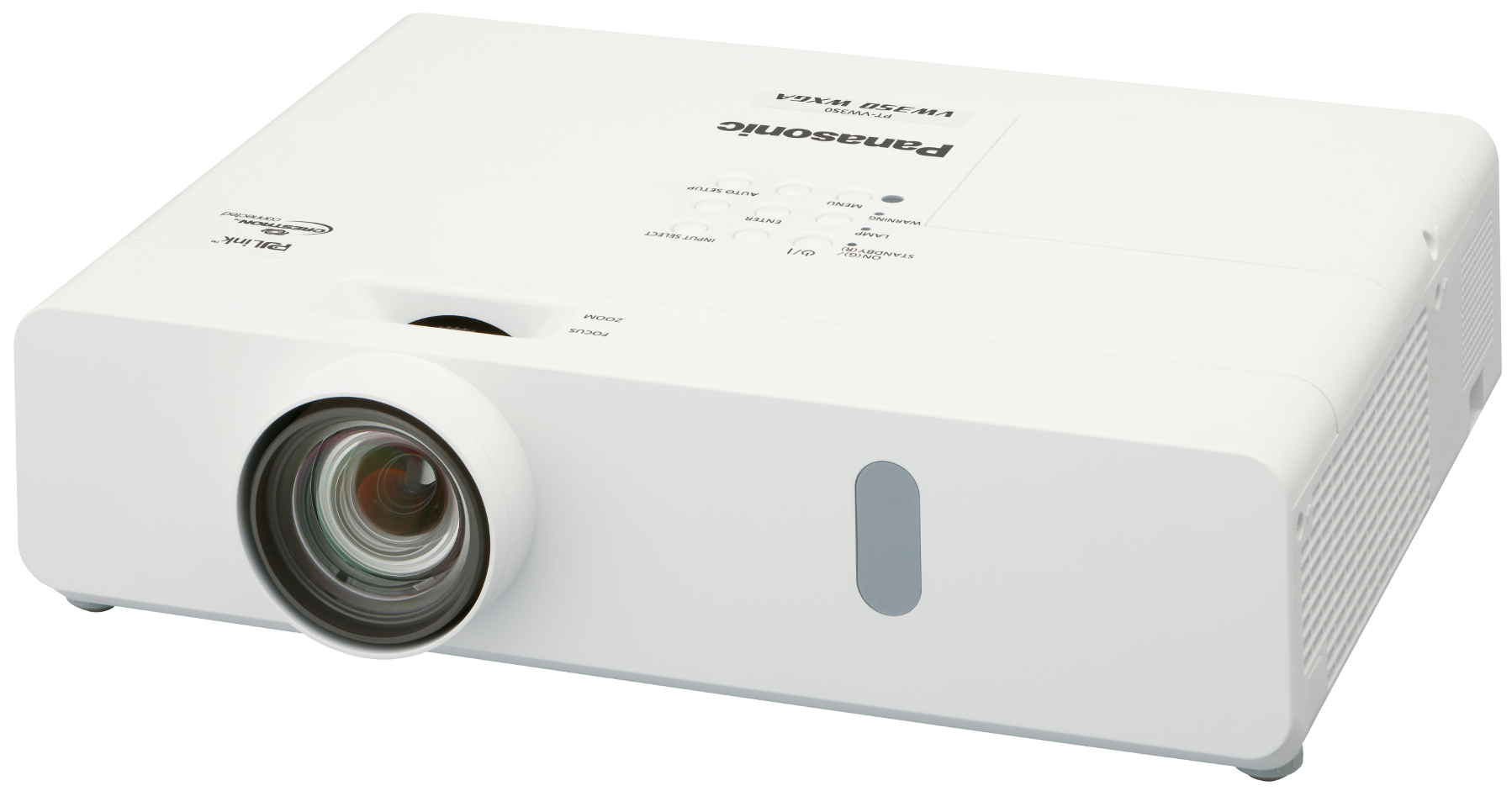

Panasonic PT-VW350U
4,000 Lumens WXGA LCD Video Projector

OUR PART #  PTVW350U

Our Price: $1,074.91
List Price: $1,599.00
You save 33%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The lightest portable LCD projector in its class, Panasonic's PT-VW350U is a WXGA projector that offers flexible installation with 1.6x Zoom Lens along with a host of useful features, including:

Corner Keystone Correction
Designate four corners on the projection surface and horizontal and vertical corner keystone correction creates a perfectly symmetrical image.

10 W Speaker and Mic Input
An internal 10 W speaker plays sound in presentations or videos as well as audio from a connected microphone—there’s no need for separate amp and speakers.

Flexible 1.6x Zoom Lens
When projecting onto a 100-inch-wide screen, the included 1.6x zoom lens supports a range of projection distances from 2.5 to 4.1 m (8.2 to 13.5 ft).

Extremely Bright Images
Despite its light 3.3 kg weight and compact dimensions, the PT-VW350 outputs 4,000 lm of brightness for spectacularly clear and brilliant images.

High 12,000 :1 Contrast
A new iris mechanism optimizes light output according to content. Blacks are deep and rich while colors and highlights are reproduced with realism.

Daylight View Basic
Daylight View Basic uses a sensor to measure ambient light, optimizing brightness, color, and contrast for vividly punchy images in bright rooms.

7,000 hrs. Maintenance-free*
When used for eight hours per day, lamp and filter replacement is not required for up to 4 years (or 7,000 hours* of operation), slashing cost of ownership.

Quiet Operation
The quiet design keeps noise levels down to a low 29 dB on Eco Mode with the cooling fan hardly audible, minimizing distractions during presentations.

* This is the maximum value when the lamp power is set to Eco, with the lamp turned on for 3 hours and off for 0.5 hour. Increases in the lamp on cycle or extended use with the lamp continuously turned on will reduce lamp replacement cycle. With lamp power is set to Normal, replacement cycle is 5,000 hours. Usage environment affects lamp and filter replacement cycle.

Panasonic PT-VW350U Includes:

  • Panasonic PT-VW350U unit
  • Wireless remote control unit × 1
  • Power cord × 1 (× 2 for UK and Asia only)
  • Batteries for remote control (R03/LR03/AAA type battery × 2)
  • RGB signal cable × 1
  • Lens cap × 1
  • Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software)

Panasonic PT-VW350U Other Features:

  • Direct Power Off Function
  • Low 0.5 W Power Consumption on Standby*
    *With Standby mode set to ECO.
  • Auto Input Signal Search
  • Input Guidance Function
  • Real-Time Keystone Correction
  • Color-Board and Blackboard Modes
  • Easy Remote Monitoring and Control Over LAN
  • Crestron Connected™, AMX DD, and PJLink™ Compatible
  • Ecology-Conscious Design

Panasonic PT-VW350U Specifications:

  • Power supply: AC 100–240 V, 50 Hz/60 Hz
  • Power consumption:
    • 100–240 V: 320 W
      (0.5 W when Standby mode set to ECO1, 1.6 W when Standby mode set to Network, 9.5 W when Standby mode set to Normal)
  • LCD panel:
    • Panel size: 15.0 mm (0.59 in) (16:10 aspect ratio)
    • Display method: Transparent LCD panel (× 3, R/G/B)
    • Pixels: 1,024,000 (1280 × 800) pixels
  • Lens: Manual zoom (1.6x) (throw ratio: 1.18–1.90:1), manual focus, F 1.60–1.90, f 15.31–26.24 mm
  • Screen size (diagonal): 0.76–7.62 m (30–300 in), 16:10 aspect ratio
  • Resolution: 1280 × 800 pixels (Input signals that exceed this resolution will be converted to 1280 × 800 pixels.)
  • Brightness2:
    • 4,000 lumens
      (input signals: PC, lamp power: Normal, picture mode: Dynamic, Iris: Off, Daylight View: Off, Auto Power Save: Off )
  • Lamp: 240 W × 1 lamp
  • Lamp replacement cycle: Normal: 5000 h / Eco: 7000 h
  • Center-to-corner uniformity2: 85 %
  • Contrast2:
    • 12,000:1 (Full On/Off)
      (input signals: PC, lamp power: Normal, picture mode: Dynamic, Iris: On, Daylight View: Off, Auto Power Save: Off )
  • Scanning frequency:
    • HDMI IN: fH: 15–91.1 kHz, fV: 50–100 Hz, dot clock: 162 MHz or lower
    • RGB (analog): fH: 15–100 kHz, fV: 24–100 Hz, dot clock: 162 MHz or lower (Signals exceeding the dot clock rate of 140 MHz are downsampled.)
    • YPBPR (YCBCR): fH: 15.73 kHz, fV: 59.94 Hz [525i (480i)], fH: 15.63 kHz, fV: 50 Hz [625i (576i)], fH: 31.50 kHz, fV: 60 Hz [525p (480p)], fH: 31.25 kHz, fV: 50 Hz [625p (576p)], fH: 45.00 kHz, fV: 60 Hz [750p (720)/60p], fH: 37.50 kHz, fV: 50 Hz [750p (720)/50p], fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i], fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i], fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p], fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p], fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF], fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p], fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p], fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p]
    • Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N]
  • Optical axis shift: 49:1 (fixed)
  • Keystone correction range:
    • Vertical: ±40 ° (±30 ° when using AUTO) (maximum value of WXGA input),
    • Horizontal: ±30 ° (maximum value of WXGA input)
  • Installation: Ceiling/floor, front/rear
  • Terminals:
    • HDMI IN: HDMI 19-pin x 1 (compatible with HDCP, Deep Color), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
    • COMPUTER 1 IN: D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
    • COMPUTER 2 IN /MONITOR OUT: D-sub HD 15-pin (female) x 1 (RGB), (input/output selectable using on-screen menu)
    • VIDEO IN: Pin jack x 1 (Composite VIDEO)
    • S-VIDEO IN: Mini DIN 4-pin x 1 (S-VIDEO)
    • AUDIO IN 1: M3 x 1 (L-R x 1)
    • AUDIO IN 2 (MIC IN): M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
    • AUDIO IN 3: Pin jack x 2 (L, R x 1)
    • AUDIO OUT: M3 x 1 (L-R x 1) for output (variable)
    • LAN: RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)
    • SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  • Built-in speaker: 4.0 cm (1 9/16? ) round shape x 1, output power: 10.0 W (monaural)
  • Operation noise2: 37 dB (lamp power: Normal), 29 dB (lamp power: Eco)
  • Cabinet materials: Molded plastic
  • Dimensions: 13-27/32" W x 3-27/32" H3 x 11" D4 (352 x 983 x 279.44 mm)
  • Weight5: Approx. 7.3 lbs (3.3 kg)
  • Operating environment:
    • Operating temperature: 0–40 °C [32–104 °F] (less than 1,400 m [4,593 ft] above sea level, HIGH ALTITUDE MODE: OFF); 0–30 °C [32–86 °F] (1,400 m [4,593 ft] to 2,000 m [6,562 ft], HIGH ALTITUDE MODE: 1); 0–30 °C
      [32–86 °F] (2,000 m [6,562 ft] to 2,400 m [7,874 ft], HIGH ALTITUDE MODE: 2)
    • Operating humidity: 20–80% (no condensation)

Notes:
1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for external control using the serial terminal.
2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
3 With legs retracted to minimum.
4 Including protruding parts.
5 Average value. May differ depending on the actual unit.

For more information, please contact your Sales Pro.
