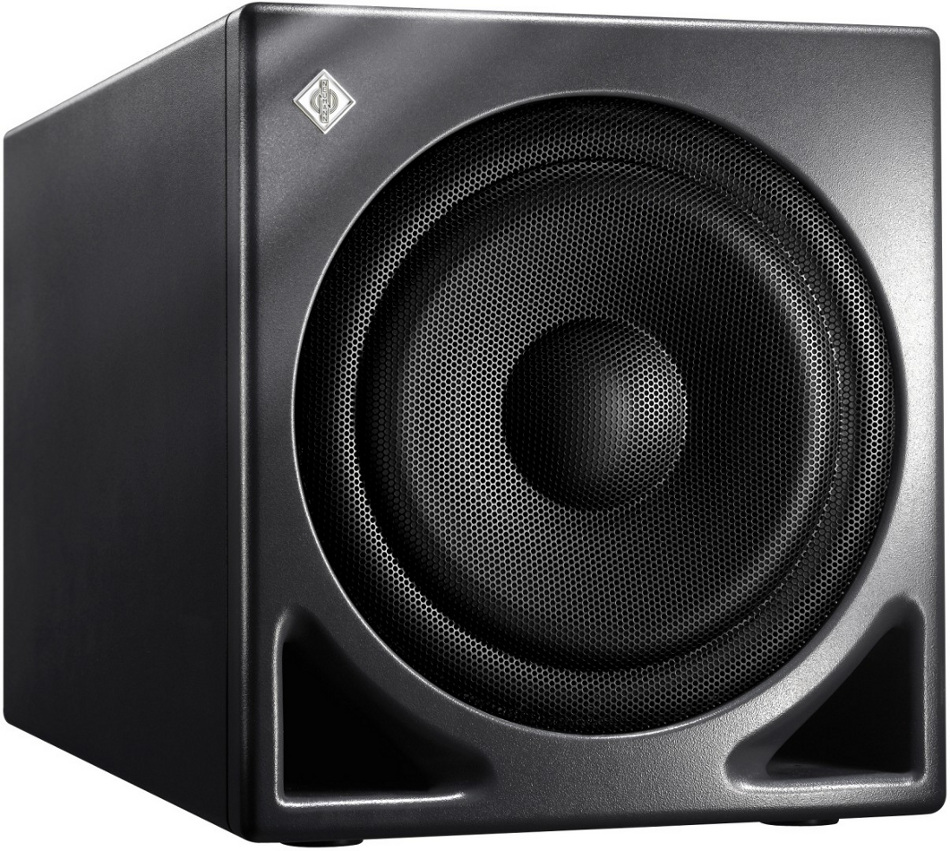

Neumann KH 805
10”, 200W Active Studio Subwoofer

OUR PART #:  KH805

Neumann's KH805 is a 10", 200-watt active studio subwoofer whose 4-mode operation is tailored for a wide variety of uses...
Learn More
Our Price: $1,499.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann KH 805
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Neumann's KH805 is a 10", 200-watt active studio subwoofer whose 4-mode operation is tailored for a wide variety of uses, and makes for a high level of installation flexibility. The KH 805 is based on the acoustic performance of the KH 810 subwooer - also an optimal choice for stereo set-ups - and works especially well in combination with the KH 120 or KH 310 loudspeakers for tracking, mixing and mastering in recording, broadcast, or post-production studios.

The unit's solid, well-braced cabinet construction has a feature set of its own, which includes extremely low tuning frequency to minimize unwanted resonance; a long excrusion, low-distortion, magnetically shielded 10" driver; high efficiency, low-heat dissipation power amplification techniques, and electronics that can be remote located (REK 3) for reduced cabling and ease of use.

This subwoofer can be used as bass extension for loudspeakers down to 18 Hz, to increase the maximum SPL of loudspeakers by up to 8 dB, to decrease harmonic and intermodulation distortion of loudspeakers, to reproduce the LFE channel, to reproduce the "sub" signal of a bass managed multichannel source, make a Plane Wave Bass Array™ system (to increase low frequency linearity), or work as an extension for KH 810, KH 870 and KH 805 subwoofer systems.

The KH 805 2.0 / 0.1 Bass Manager can be used for stereo and multichannel applications like bass management with 4th order, 80 Hz crossover (compatible with typical systems). The Bass Manager can also be bypassed using a simple switch or footswitch. Acoustic controls that contribute to installation flexibility are output level, low cut, parametric EQ, and a 45° step phase control. Last but not least, the right input connector has four routing modes: right channel bass management, LFE to subwoofer (up to 120 Hz), wide for multichannel systems where bass management is in the source and daisy chain for subwoofer arrays.

Neumann KH805 Includes:

  • 1x KH 805
  • 3x Power cables (Euro, UK, USA)
  • 1x Operating manual
  • 1x Supplement “Getting Started Quickly”

Neumann KH805 Features:

  • Robust driver and cabinet
  • Sum output for multiple subwoofer systems (higherSPL, decreased distortion)
  • Four routing modes on right input connector
  • Planet Wave Bass Array™ (PWBA™) reduces lateral room modes
  • Extensive acoustic controls (output level, low cut, parametric EQ, 45° step phase control)
  • Switchable mains voltage
  • Input Ground lift
  • Remoteable electronics (REK 3) for installation convenience, less cabling
  • Low heat dissipation amplifier
  • Integrated limiter for amp and driver protection

Neumann KH805 Specifications:

  • ACOUSTICS
    • -3 dB free field frequency response: 18 - 300 Hz, ± 3 dB
    • Pass band free field frequency response: 19 - 300 Hz, ± 2 dB
    • Self-generated noise  level at 10 cm: < 20 dB(A)
    • Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m: > 40 Hz
    • Max. SPL In half space at 3% THD: 110.7 dB SPL
    • Max. SPL with pink noise In half space at 1 m: 112 dB SPL
    • Averaged between: 40 and 90 Hz
  • ELECTRONICS
    • Amplifier, cont. (peak) output power (THD < 0,1 %): 160 W (200 W)
    • Controller design: Analog, active
    • Main channel crossover frequency: 80 Hz
    • Crossover slope: 24 dB/oct
    • Equalization: Low cut: 30 Hz, 0 … -12 dB
    • Parametric Equalizer: Bypassable
    • Parametric Equalizer - Gain: +4 … -12 dB
    • Parametric Equalizer - Frequency: 20 … 120 Hz
    • Parametric Equalizer - Q: 1 … 8
    • Time of Flight adjustment delay: 0 … 4.69 ms @ 80 Hz (4-step 0, 45, 90, 135), - 180° Switch
    • Bass Management Remote Control: Bass management on/off
      • Optional via a standard foot switch on a 6.3 mm jack
    • Protection circuitry: Peak and Thermo Limiters
    • Infrasonic filter frequency; slope: 6.5 Hz; 12 dB/oct.
    • Analog Inputs and Outputs:
      • Input/Output channels: 2.0 or 0.1 / 2 + Daisy Chain
      • Impedance electrically balanced: XLR, 13 kOhm
      • Input sensitivity: 94, 100, 108, 114 dB SPL at 1m for a 0 dBu input level
      • Max. input level: +24
      • Signal routing modes: Right, LFE 120 Hz, Wide, Daisychain
      • CMRR: > 56 dB @ 15 kHz
      • Interchannel isolation (1 kHz), level matching: -95 dB, ±0.1  dB
      • Dynamic range, THD+N: 119 dB(A), <0. 001% (-100 dB)
      • Gain Control: +2 … -12 dB
      • Displays and indicators:
        • power on: Green LED
        • limit/clip: Red LED “Flashing
        • bass management active: Green LED
      • Mains power: 220 - 240 / 100 - 120 V AC (switchable)
      • Power consumption: Idle - 14 W; Full output - 280 W
  • MECHANICS
    • Cabinet surface finish  Painted
    • Color: Standard
    • Metallic Anthracite (RAL 7021)
    • Baffle cover: Metal grille (included)
    • Drivers: Magnetically shielded
    • Woofer: 265 mm (10")
    • Product dimensions (height x width x depth), mm (inches): 360 x 330 x 645 mm (14 1/8" x 13" x 25 3/8")
    • Net volume, internal / external: 41.5 l /76.6 liters
    • Product weight: 26 kg (57 lbs., 5 oz.)
    • Packed dimensions (height x width x depth), mm (inches): 515 x 490 x 750 mm (20 1/4" x 19 1/4" x 29 1/2")
    • Packed weight and cube: 32.0 kg (70 lbs., 9 oz.), 0.1893 m³
