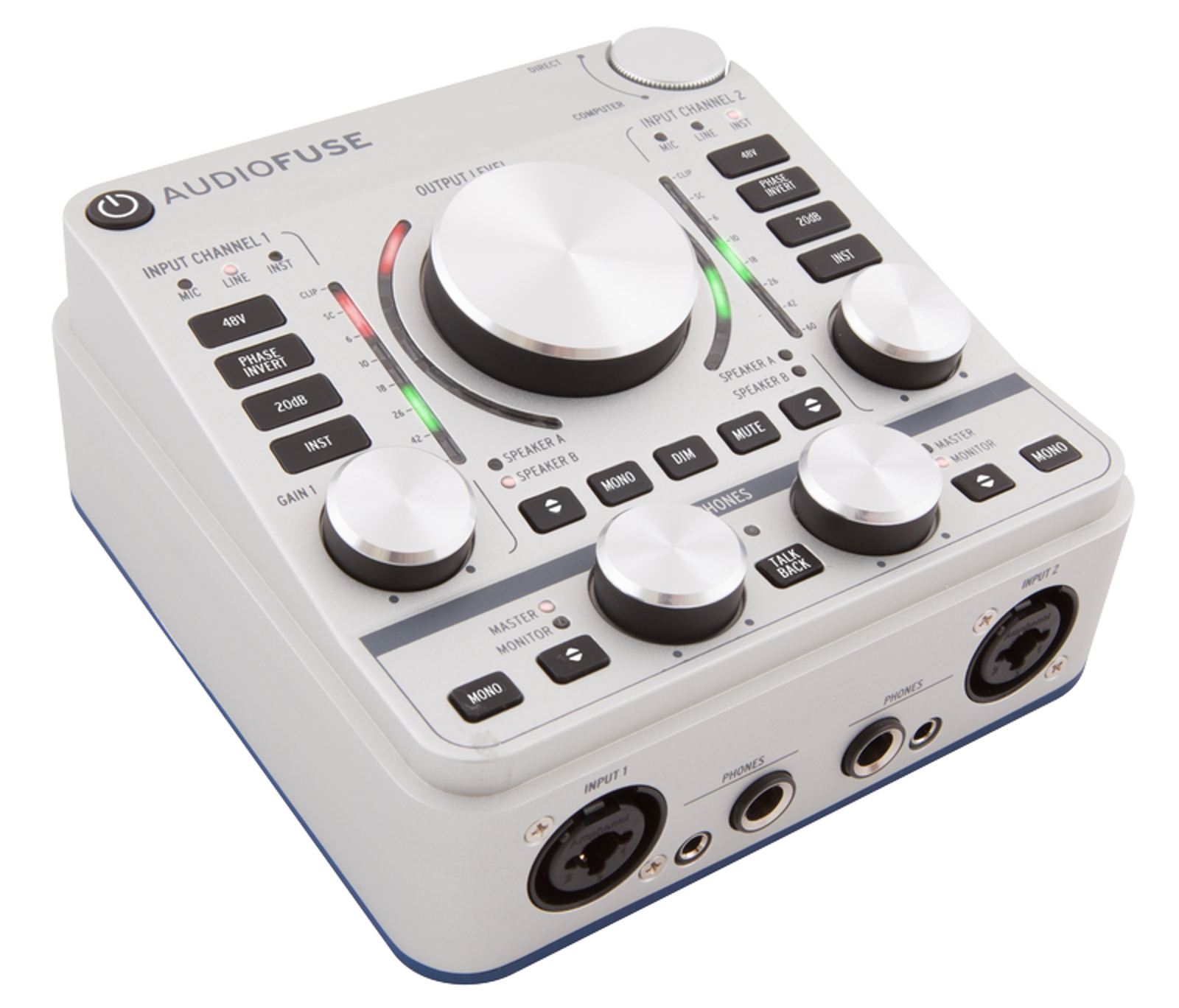

Arturia AudioFuse
14 x 14 USB Audio Interface

OUR PART #:  AUDIOFUSE-ARTURIA

AudioFuse from Arturia is a pro audio interface that combines the sound of high-quality analog studio consoles with the flexibility of a mobile interface.
Learn More
Arturia AudioFuse - Space Grey View
Arturia AudioFuse - Deep Black View
Arturia AudioFuse - Bottom View

Click a thumbnail to see more images. (6 total)

Selected Model Price: $599.00
List Price: $699.00
Save up to 14%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Arturia AudioFuse
Select a Model: (shipping times are approximate)
Qty:

Similar Products

AudioFuse from Arturia is a pro audio interface that combines the sound of high-quality analog studio consoles with the flexibility of a mobile interface. AudioFuse is built upon a fully symmetrical audio chain with every stage carefully engineered. The 2 custom-designed DiscretePRO® microphone preamps combine vintage consoles with modern technology, which delivers superior audio performance.

There are no menus in AudioFuse, so there's nothing hidden, and every control is at your fingertips without confusion or hassle. AudioFuse can connect with virtually everything: mics, instruments, turntables, studio equipment, Mac, PC, Linux, tablets, even iOS and Android phones, so it's a versatile powerhouse.

AudioFuse has a super-solid aluminum chassis you can trust, complete with hard cover to protect it from damage and dust. The build quality goes far beyond a great-looking exterior as well. A test specification printout is included with each unit, as a confirmation of it's quality testing.

Arturia AudioFuse Features:

  • 2 DiscretePRO microphone preamps
  • 2 RIAA phono preamps
  • 4 analog inputs
  • 2x Mic/Instrument/Line (XLR / 1/4" TRS)
  • 2x Phono/Line (RCA / 1/4" TRS)
  • 4 analog outputs (1/4" TRS)
  • 2 analog inserts (1/4" TRS)
  • ADAT in/out
  • S/PDIF in/out
  • Word clock in/out
  • MIDI in/out
  • 24-bit next-generation A-D/D-A converters at up to192kHz sampling rate
  • Analog soft-clipping option
  • Talkback with dedicated onboard microphone
  • A/B speaker switching
  • Direct monitoring
  • Separate master and monitor mix channels
  • USB interface with PC, Mac, iOS, Android and Linux compatibility
  • 3-port USB hub
  • 3 models: Classic Silver, Space Grey, Deep Black
  • Aluminum chassis, hard leather-covered top cover
  • DiscretePRO® Technology

Arturia AudioFuse Specifications:

  • Line/Instrument Inputs
    • Line input impedance: 20k ohm (symmetric), 10k ohms (asymmetric)
    • Instrument input impedance: 1.1M ohms asymmetric
    • Instrument maximum input level: +10dBu
    • Frequency response: 20Hz to 20kHz +/-0.05dB
  • Line Input (Gain Switch 0dB)
    • THD+N @ -10dB gain: (TBA, work in progress)
    • Dynamic range @ -10dB gain, insert output level: +18dBu (127.5dB A-weighted)
    • THD+N @ 10dB gain: (TBA, work in progress)
    • Dynamic range @ 10dB gain, insert output level: +18dBu (115dB A-weighted)
    • Maximum input level: >+24dBu
  • Line Input (Gain Switch +20dB)
    • HD+N @ 10dB gain: (TBA, work in progress)
    • Dynamic range @ 10dB gain, insert output level: +18dBu (106dB A-weighted)
    • THD+N @ 30dB gain: (TBA, work in progress)
    • Dynamic range @ 30dB gain, insert output level: +18dBu (106dB A-weighted)
    • Maximum input level: +8dBu
  • Microphone Preamps
    • Input impedance: 4k ohms
    • Signal-to-noise ratio (EIN): >129dB, unweighted, (>131dB A-weighted)
    • Frequency response: 20Hz to 20kHz +/-0.05dB
    • Gain range: 18dB to 72dB
    • THD+N (unweighted): (TBA, work in progress)
    • Dynamic range insert output level: +18dBu (113dB A-weighted)
  • Line Output
    • Output impedance:
      • Maximum output level: >+24dBu
      • Dynamic range: 118dB A-weighted
      • THD+N: (TBA, work in progress)
  • Inserts
    • Output impedance:
    • Input impedance: 10k ohms asymmetric
    • Maximum output level: +18dBu
    • Nominal input level: +14dBu
