Video Streaming and Recording Appliance


This is a specially priced product for educational institutions . Please call your Sales Pro at 800-356-5844 for more information on how to place your order.
Learn More

Call for price! Not available online.

Related Products

This is a specially priced product for educational institutions . Please call your Sales Pro at 800-356-5844 for more information on how to place your order. A faxed purchase order from your organization is usually required to fulfill this order at this price.

Matrox Monarch HD is an easy-to-use video streaming and recording appliance designed for professional video producers that allows simultaneous streaming and recording for high-quality post-event editing. The device generates an H.264-encoded stream compliant with RTSP or RTMP protocols from any HDMI input source. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.

Record master quality video while streaming
Monarch HD allows recording at the highest possible quality, and allows for fast turnaround VOD files or fully post produced highlight reels. Combining the power of the built-in H.264 encoder with Matrox's high quality deinterlacing and scaling engines provides excellent results.

Ready to edit and upload with MP4 and MOV
Monarch HD provides the option of recording high quality H.264 video as MP4 or MOV files. Upload files to your own web server or to a Content Delivery Network (CDN) like YouTube, or directly import the file into most creation tools without the need for file transcoding.

Robust and practical design

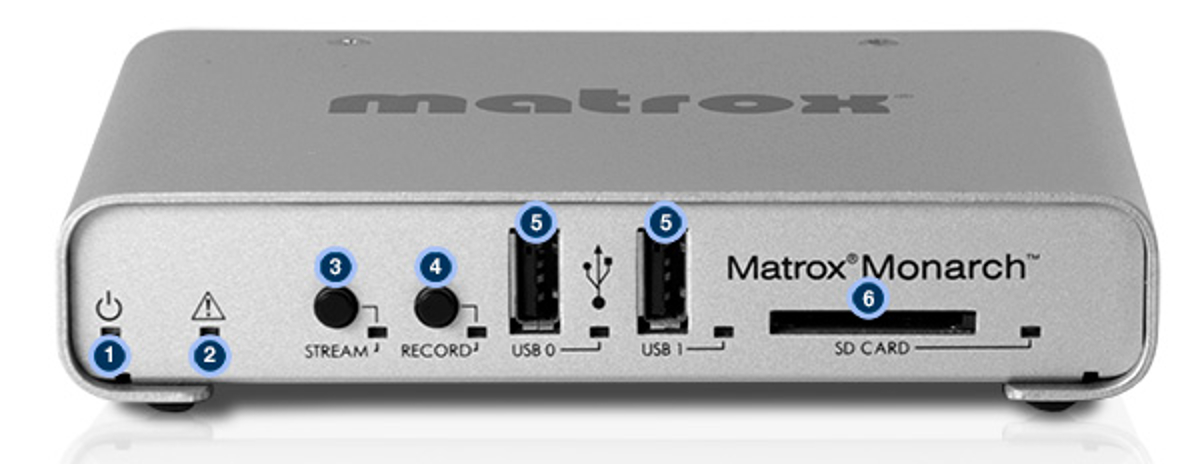

Monarch HD allows one touch streaming and recording pushbuttons, low power consumption, a locking power connector, and a fanless design. The HDMI output makes it easy to monitor what you are streaming and recording regardless of whether the signal is received from a camera, a switcher, or a computer.

Record to anything
Select from a variety of media types such as SD card, USB drive, or system drive on a computer. The ability to create split files while recording is particularly useful when recording for longer periods of time.

Matrox Monarch HD Specifications:

  • HDMI Video Input:
    • Progressive
      • 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
      • 1280x720@ 60/59.94/50 Frames per second
    • Interlaced
      • 1920 x 1080 i 29.97/25 frames per second
    • HDMI Video Output: Preview output of video input signal. 2 Frame delay from input to output.
    • Audio Input
      • Processes first two channels of audio embedded in HDMI input signal.
      • Unbalanced analog stereo input via 1/8” (3.5mm) jack.
      • Line Level
  • H.264/MPEG-4 Part 10 (AVC) Video Encoder
    • Resolutions
      • Selectable encoding resolutions ranging from:
      • 128 x 128 to 1920 x 1080
    • Bit Rates Ranges
      • Record Only Mode: 100 kbps to 30 Mbps
      • Stream Only Mode: 100 kbps to 20 Mbps
    • Encode Frame Rates
      • Encode frame rates representing 1:1, 1/2 and 1/4 of the input frames rates are supported
    • Encoding Profiles: Baseline, Main and High
    • Encoding Controls
      • 2.0, 3.0, 3.1, 4.0, 4.1 Level Support
      • GOP Size and Structure
      • Variable bit rate support
      • Average max/min data rate controls
      • Deblocking Filter
  • MPEG-4 AAC Audio Encoder
    • Standard: AAC-LC
    • Sample Frequency: 32, 44.1 and 48 KHz when digitized from analog source
    • Channels: 2 channels Stereo (L/R)
    • Bit Rates: Range from 32 kbps to 256 kbps
  • Scaler
    • High Quality multi-tap 10 bit Down Scaler and De-Interlacer. Available to both streaming and recording operations.
  • Recording File Format
    • File Type: Industry Standard MP4 and MOV files with two channels of embedded AAC audio.
    • Recording Lengths: Maximum file length of 300 minutes - irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch HD will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes.
  • Network Interfaces
    • Connector: RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing
    • Protocols:
      • RTMP, RTSP/RTP
      • IPv4 Support
      • Unicast and Multi Unicast (number of clients may vary from 3 to 10)
  • User Interface
    • Computer Based control: HTTP via standard PC or Mac web browser using Matrox Command Center. The simple Monarch HD Control API is also available to programmers to create their own application to start and stop the Monarch HD.
    • Physical Interface: On Device push buttons for independent streaming and recording Start/Stop control
  • Storage Types for File Recording
    • 2 x USB 2.0: Support for NTFS (3.1) and FAT32 file system
      The Monarch HD will support writing to USB3 devices at USB2 speeds. Also note, there is a very high variability in the performance capabilities of “thumb” drives (even USB3 versions). Many are optimized for “read” operations while the Monarch HD requires sustained “write” capabilities. For best results, Matrox recommends using powered USB drives. If small portable media is required, SD cards may be more suitable.
    • 1 x SD card Slot: Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported. (Class 10 highly recommended).
    • Network Mapped Drive: Support for writing to shared folders in computers found on a network using Windows Share protocols (suitable for windows system) as well as NFS protocols (suitable for Mac and Linuxsystems).
  • Matrox Command Center Web UI
    • Status Page: Provides relevant operational information concerning Status of Monarch HD unit at that time including; Input video detection and resolution, State and configuration of Streaming operation, State and configuration of Recording operation, Error conditions, etc.
    • Control Page: Recording and Streaming operations initiated here including Synchronized start/stop operations. Multiple Monarch devices can be synchronized in a Master/Slave topology to allow for synchronized record and streaming operations across multiple units via a single interface.
    • Record Settings: Configuration of recording parameters set within this page. A number of presets are included which are selected based on post event use of the recorded asset. If file is to be uploaded for VOD purposes, a YouTube preset may be selected. If content is to be edited for high quality production, a higher bitrate preset may be preferable.
    • Streaming Settings: Configuration of Streaming parameters performed on this page. The RTMP or RTSP credentials as well as encoding parameters are entered. Encoder presets have been included to quickly select an ideal encoder settings based on desired delivery resolution or bitrate. The loading of Flash Media Server XML configuration files is supported.
    • Administrative Tools: Device Naming, IP configuration, Date/Time settings and a variety of other tasks performed via this page.
    • Additional Tools: Matrox provide PC or Mac based utilities to help detect Monarch HD Device on a particular Network (DHCP serverrequired).
  • Physical:
    • Dimensions
      • 5.60 in. long (14.2 cm)
      • 4.30 in. deep (10.9 cm) excluding inserted SD-CARD
      • 4.40 in. deep (11.2 cm) including inserted SD-CARD
      • 1.22 in. (3.1 cm) high including rubber feet
    • Weight: 0.66 lbs (300 grams) excluding power supply
    • Operating conditions: 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
    • Power:
      • Line Voltage: 100-240V AC, 0.5A
      • Frequency: 50-60 Hz
      • Input: External AC/DC adapter - IEC320-C8
      • Output: +5VDC, 3A max
      • Total power consumption: 15 Watts
      • DIN4 Locking Power Connector
    • Transport and Storage:
      • Max Operating Altitude: 3000 meters
      • Max Transport Altitude: 12,000 meters
      • Storage Humidity 5 to 95% relative humidity (non-condensing)
    • Warranty: 2 years with free telephone support
  • Kit Contents
    • Matrox Monarch HD device
    • Matrox Monarch HD external power supply
    • IEC-C8 power cords (US, GB and EU)
