Aphex 120B
1x4 Distribution Amplifier, 220 Volt

OUR PART #:  120B-220V

The Aphex Model 120B is a high performance audio distribution amplifier with a single high impedance input and four low impedance outputs...
Learn More
Our Price: $399.00
List Price: $475.00
You save 16%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Aphex 120B
Qty:
In Stock

Similar Products

The Aphex Model 120B is a high performance audio distribution amplifier with a single high impedance input and four low impedance outputs, all electronically servo-balanced and designed to be as transparent as possible. The 120's transformerless circuits are designed for wide, flat frequency response, free from ringing or overshoot, making it ideal for distribution of time code or audio. Each output has its own amplifier and level control for maximum versatility and isolation. The sturdy steel chassis may be used stand-alone or rackmounted, singly or in pairs.

Input

The input circuit is adjusted for optimal common-mode rejection. Servo-balancing compensates for high common-mode voltages, so headroom isn't sacrificed. The high input impedance allows bridging of the input signal with minimum loading. This way several amplifiers can be easily driven from the source.

Outputs

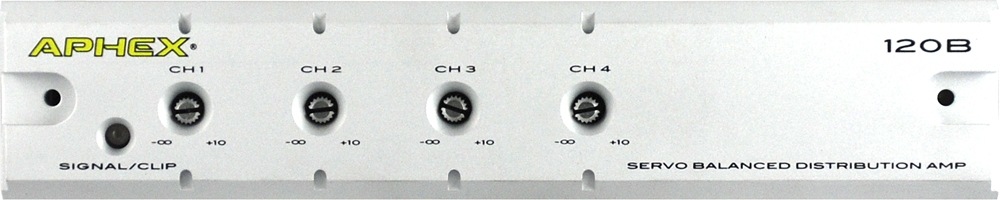

The individual output amplifiers are very low impedance so long lines and capacitive loads are easily driven with no loss of stability or high frequency response. Servo-balancing permits the outputs to be used single-ended at any time without a change in gain by simply grounding the unused pin. Individual output level controls are recessed for bump-proof operation, yet can be easily adjusted without tools. The front panel power LED also acts as a signal present and clip indicator for the input.

Aphex 120B Features:

  • 1 input, 4 output with output trim adjustments
  • Transformerless design for wide, flat frequency response
  • Works for audio or time code

Aphex 120B Specifications:

  • Audio:
    • Frequency Response: 5 Hz - 100 kHz (+0, -0.5 dB)
    • Dynamic Range: 94 dB
    • Hum and Noise: Better than -90 dBm at unity gain
    • THD: 0.002% @ + 4 dBm, 0.005% @ +20 dBm
    • IMD: 0.002% @ +10 dBm
    • Channel Isolation: 70 dB
    • Slew Rate: 13 V/usec
  • Input:
    • Connector: XLR 3-pin Female
    • Type: Transformerless, differential servo balanced
    • Impedance: 100 k ohms balanced
    • Maximum Level: +25 dBm
    • CMRR (typical): > 45 dB
  • Output:
    • Connector: XLR 3-pin Male
    • Impedance: 65 ohms
    • Maximum Level: + 25 dBm into 600 ohms balanced, +21 dBm unbalanced
    • Output Gain Range: +/- 15 dB
  • Other Specifications:
    • Power Requirements: 100, 120, 220, OR 240 VAC, 50-60Hz
    • Dimensions (H x W x D): 1.75 x 8.25 x 7.25" (44.5 x 209.5 x 184.2 mm)
    • Net Weight: 3.5 lbs (1.6 kg)
