ADJ XS 600 6x10W RGBW LED Dual Axis Moving Head Effect Fixture with Continuous Pan / Tilt

OUR PART #: XS600 MFR #: xs6600

Copied to clipboard

The ADJ XS 600 is a dual moving head LED fixture with six lenses with both the head and the yoke offering continuous 360° rotation in both directions. ...Read more

ADJ XS 600 6x10W RGBW LED Dual Axis Moving Head Effect Fixture With Continuous Pan / Tilt Image 1
ADJ XS 600 6x10W RGBW LED Dual Axis Moving Head Effect Fixture With Continuous Pan / Tilt Image 2
ADJ XS 600 6x10W RGBW LED Dual Axis Moving Head Effect Fixture With Continuous Pan / Tilt Image 3
ADJ XS 600 6x10W RGBW LED Dual Axis Moving Head Effect Fixture With Continuous Pan / Tilt Image 4
ADJ XS 600 6x10W RGBW LED Dual Axis Moving Head Effect Fixture With Continuous Pan / Tilt
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

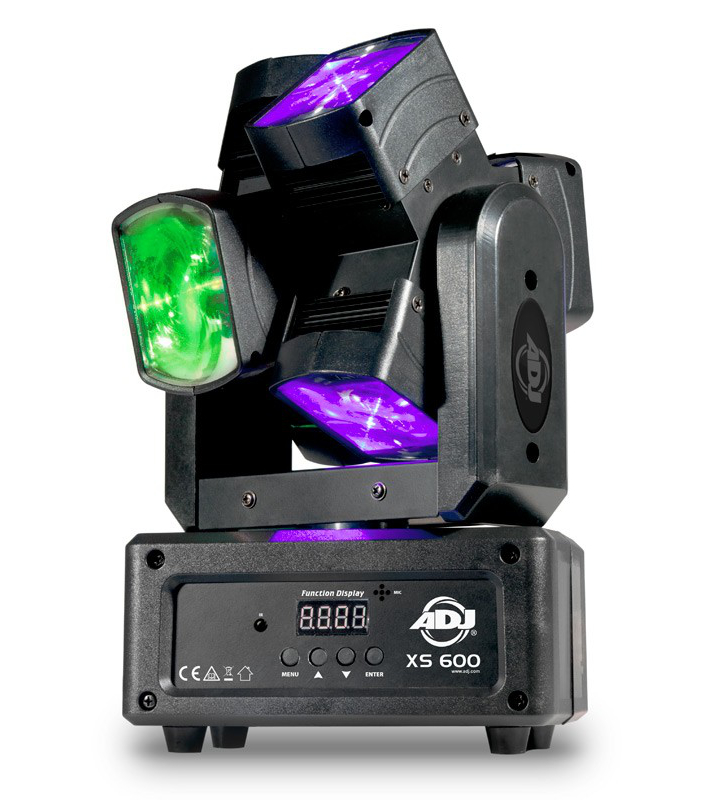

The ADJ XS 600 is a dual moving head LED fixture with six lenses with both the head and the yoke offering continuous 360° rotation in both directions. The XS 600 utilizes 6 x 10-Watt LED that project sharp beams of light. Its compact size and lightweight makes it an ideal option for mobile entertainers, small club and bars, roller rinks, bowling centers or any mobile production.

The XS 600 creates the ultimate visual effect by using fast moving light beams and color changes. In show mode you can access 9 different shows or create your own color palette by color mixing the RGBW LEDs via DMX control. The XS 600 comes with 3 different operating modes; sound active mode with sound sensitivity adjustment, show mode, or DMX control, used to create your own moving light shows or color combinations. The Axis 600 can be used as a stand alone unit or in master-slave set up. The xS 600 is UC IR and Airstream IR compatible (sold separately ) and is used to control various functions for the XS 600.

ADJ XS 600 Specifications:

  • Unique dual axis Moving Heads
  • 360° continuous rotation, of both the head andyoke, in both directions
  • 6 x 10W 4-in-1 RGBW LEDs
  • Pixel control of each LED
  • RGBW Color Mixing in DMX mode
  • 3 Operational modes: DMX, Show Mode & SoundActive
  • Stand Alone or Master-slave set up
  • 2 DMX Channel modes: 25 Channels & 31 Channels
  • 4-Button menu system LED Display making it easy tonavigate
  • 9 Built-in shows
  • 5° Beam Angle
  • 3-pin XLR DMX connectors
  • Lifetime of the LEDs (50,000 hr. rating)
  • Power consumption: 60W total
  • UC IR wireless controller & Airstream IR wireless App compatible (sold separately)
  • IEC In & Out to daisy chain power (Connect up to8 Fixtures)
  • Multi-voltage operation: AC 100-240V 50/60Hz- I.E.C.In
  • Dimensions (LxWxH): 7” x 7.75” x 12.5” (180.2 x195.6 x 317.7mm)
  • Weight: 7 lbs. (3 kgs.)
