Product Overview

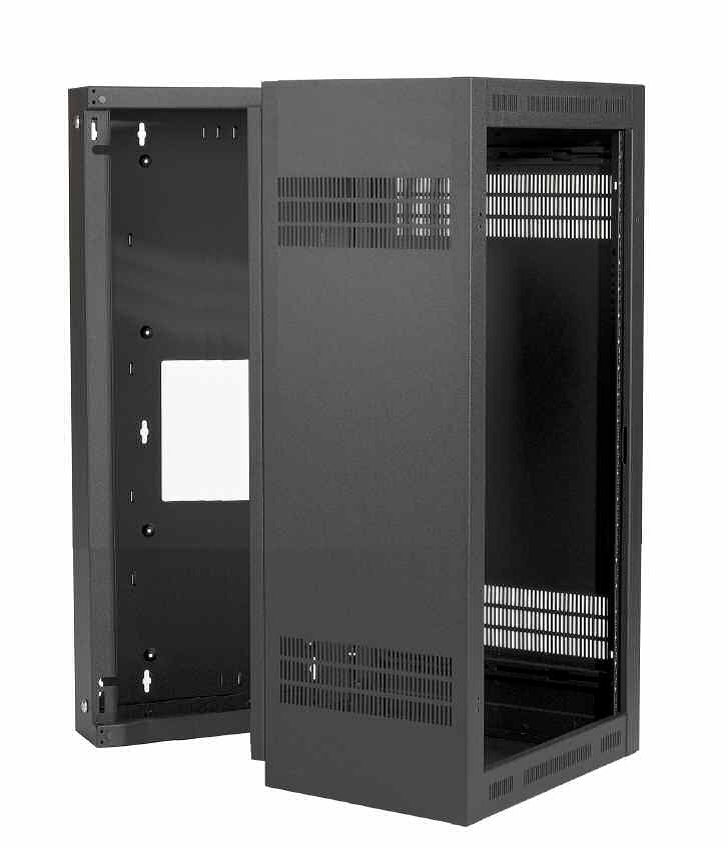

Middle Atlantic's LWR Series racks are heavy duty, sectional wall-mount racks with a steel backbox and separate front cabinet, boxed separately so the back can be field-installed while the front is loaded at the shop. Includes adjustable front mounting rails, tapped 10-32 and integral rails on the top and bottom. Black powder epoxy finish.
Lowell LWR-2119 Features:
- Backbox has center opening in rear to fit around wall protrusions. Embossed dimples and lacing points allow flush installation of board-mounted accessories.
- Knockouts for wireless antennas and conduit.
- Removable knockout panels on top and bottom.
- Two keyed side locks.
- Front cabinet mounts to backbox from the inside with self-seating, positive locking L-pins that can be repositioned to change swing orientation (right or left).
- Roller closure seats cabinet securely in closed position without mandatory locking.
- Open front with vents at top and bottom. Ready to mount optional front door.
- Welded sides have top and bottom vents.
- Adjustable mounting rails, tapped 10-32, can be repositioned anywhere along side rail supports. Printed RU scale facilitates gear mounting.
- Integral top and bottom rails on EIA spacing for mounting or lacing.
- EIA, TIA, RoHS compliant, UL2416 Listed
- Made in the USA with certified U.S. steel
Lowell LWR-2119 Specifications:
- Rack Units: 21 RU
- Racking Space: 36.75" (933 mm)
- Usable Depth: 16" (406 mm)
- Overall Depth: 19.05" (484 mm)
- Overall Height: 42.875" (1089 mm)
- Overall Width: 23.06" (586 mm)
- Backbox Depth: 5.80" (147 mm)
- Mounting Section Depth: 13.06" (332 mm)
- Load Capacity: 250 lbs (113.6 kg)
