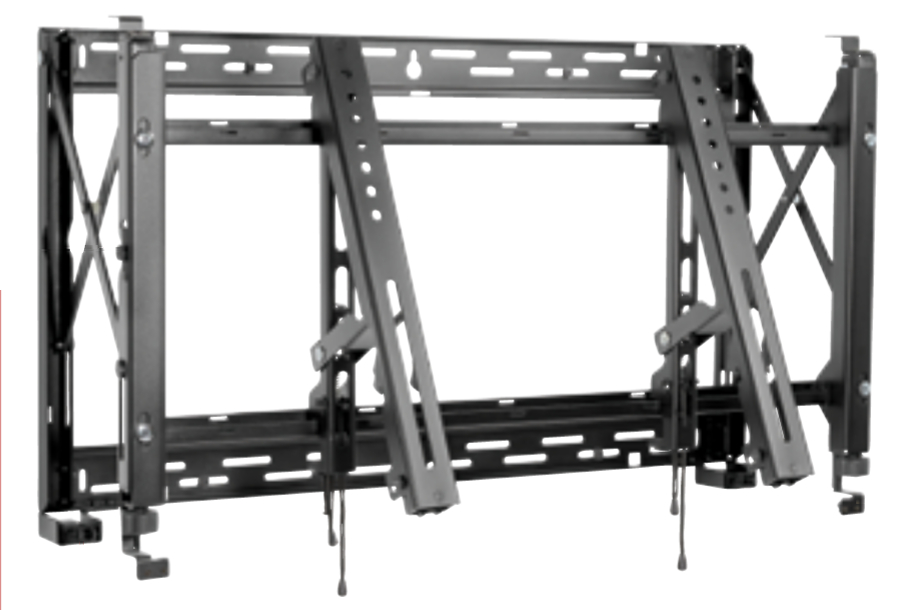

Peerless DS-VW765-LQR
SmartMount Full-Service Video Wall Mount with Quick Release - Landscape View

OUR PART #  DS-VW765-LQR

Our Price: $339.84
List Price: $539.00
You save 37%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The DS-VW765-LQR from Peerless-AV is one of their SmartMount® Full-Service Video Wall Mounts - with this model offering a quick release feature while your display is shown in the landscape position. This wall mount is designed for displays 46" - 65" in size and weighing up to 125 lbs.

Video walls should be easy to configure, quick to install, and a snap to maintain. The DS-VW765-LQR Full-Service Video Wall Mount with a Quick Release from Peerless-AV is designed for quick service access in recessed video wall applications. It provides versatility demanded by installers. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR has a no-tool-required micro-adjustment feature and provides easy-access to any display, creating the ideal video wall. The custom wall plate spacers eliminate guesswork and on-site installation calculations and measurements, reducing installation time and cost. This innovative design, combined with a ready-to-install mount, makes this the fastest video wall installation. Loaded with time saving features, this Full-Service Video Mount is the ultimate video wall mounting solution.

NOTE: The DS-VW765-LQR’s pop-out mechanism provides easy-access and quick serviceability, so you can achieve a seamless video wall in no time.

Peerless-AV DS-VW765-LQR Features:

  • Quick release pop out mechanism provides convenient display access in recessed applications
  • Quick release can be disabled with a locking screw to prevent unintentional pop-outs
  • Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick release to activate with gentle force
  • Modular mount for unlimited video wall display configurations
  • Custom wall plate spacers eliminate the guesswork and on-site installation calculations
  • Tool-less micro-adjustments at 8 points allows the mount to overcome uneven walls to create a seamless video wall display
  • Pull-out/prop-open mechanism provides quick service access
  • Integrated cable management tie-backs make display-to-display cabling simple

Peerless-AV DS-VW765-LQR Specifications:

  • Minimum to Maximum Screen Size: 46" to 65"
  • VESA Pattern: 200x200 up to 700x400
  • Weight Capacity: 125lb (56.8kg)
  • Color: Black
  • Finish: Powder Coat
  • Security Features: Security Hardware
  • Distance from Wall: 3.08 - 3.83" (78 - 97mm)
  • Product Dimensions: 35.59 X 21.37 X 3.08 - 3.83" (904 X 543 X 78 - 97mm)
  • Ship Dimensions: 23.25 x 4.75 x 36.25" (590.6 x 120.7 x 920.8mm)
  • Shipping Weight: 38.8lb (17.6kg)



Peerless DS-VW765-LQR
SmartMount Full-Service Video Wall Mount with Quick Release - Landscape View

OUR PART #  DS-VW765-LQR

Product Information:

The DS-VW765-LQR from Peerless-AV is one of their SmartMount® Full-Service Video Wall Mounts - with this model offering a quick release feature while your display is shown in the landscape position. This wall mount is designed for displays 46" - 65" in size and weighing up to 125 lbs.

Video walls should be easy to configure, quick to install, and a snap to maintain. The DS-VW765-LQR Full-Service Video Wall Mount with a Quick Release from Peerless-AV is designed for quick service access in recessed video wall applications. It provides versatility demanded by installers. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR has a no-tool-required micro-adjustment feature and provides easy-access to any display, creating the ideal video wall. The custom wall plate spacers eliminate guesswork and on-site installation calculations and measurements, reducing installation time and cost. This innovative design, combined with a ready-to-install mount, makes this the fastest video wall installation. Loaded with time saving features, this Full-Service Video Mount is the ultimate video wall mounting solution.

NOTE: The DS-VW765-LQR’s pop-out mechanism provides easy-access and quick serviceability, so you can achieve a seamless video wall in no time.

Peerless-AV DS-VW765-LQR Features:

  • Quick release pop out mechanism provides convenient display access in recessed applications
  • Quick release can be disabled with a locking screw to prevent unintentional pop-outs
  • Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick release to activate with gentle force
  • Modular mount for unlimited video wall display configurations
  • Custom wall plate spacers eliminate the guesswork and on-site installation calculations
  • Tool-less micro-adjustments at 8 points allows the mount to overcome uneven walls to create a seamless video wall display
  • Pull-out/prop-open mechanism provides quick service access
  • Integrated cable management tie-backs make display-to-display cabling simple

Peerless-AV DS-VW765-LQR Specifications:

  • Minimum to Maximum Screen Size: 46" to 65"
  • VESA Pattern: 200x200 up to 700x400
  • Weight Capacity: 125lb (56.8kg)
  • Color: Black
  • Finish: Powder Coat
  • Security Features: Security Hardware
  • Distance from Wall: 3.08 - 3.83" (78 - 97mm)
  • Product Dimensions: 35.59 X 21.37 X 3.08 - 3.83" (904 X 543 X 78 - 97mm)
  • Ship Dimensions: 23.25 x 4.75 x 36.25" (590.6 x 120.7 x 920.8mm)
  • Shipping Weight: 38.8lb (17.6kg)
