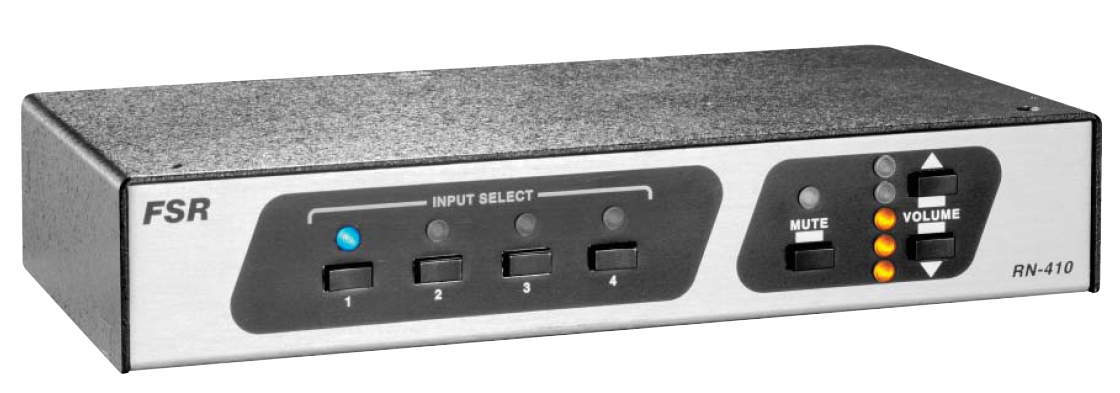

FSR, Inc RN-410PA
4x1 HD-15 RGBHV Audio Video Switcher


The RN-410PA from FSR is one of their affordable and simple A/V switcher offerings.
Learn More
Our Price: $595.82
List Price: $679.00
You save 12%!
Write the first review.
FSR, Inc RN-410PA
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The RN-410PA from FSR is one of their affordable and simple A/V switcher offerings. Its a member of the RN-410 series, also known as the switching group of the Room Navigator family which are 4X1 audio video switchers. S-Video, composite, component and RGB models are available to fit your application. All models can be controlled from the front panel or remotely via RS-232. They are housed in 1RU high, 1/2 rack wide cases with front panels, similar to the Room Navigator.

Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

FSR RN-410PA Applications:

  • Classrooms
  • Boardrooms
  • Houses of Worship
  • Rental and Staging

FSR RN-410PA Features:

  • Affordable
  • Ultra high bandwidth
  • Easy to use
  • Select models with and without stereo audio
  • RS-232 or front panel controls
  • Audio breakaway capability via RS-232
  • Independent audio input trim controls
  • Audio output level adjust and muting
  • Rack mount kit and power supply included

FSR RN-410PA Specifications:

  • Video Input:
    • Signal Type: RGB
    • Connector Number/Type: 4 HD-15 Female
    • Impedance: 75 OHM
    • Level: 1 VOLT P/P
    • VSWR: <1.1 @ 250MHz
    • Isolation:
      • >80dB@10MHz
      • >65dB@100MHz
    • Differential Phase: NA
    • Differential Gain: NA
  • Video Output:
    • Signal Type: RGB
    • Connector Number/Type: 1 HD-15 Female
    • Impedance: 75 OHM
    • Gain: Unity Into 75 Ohms
    • Offset: 15mV MAX
    • Bandwidth: 450 MHz
    • Flatness:
      • +/-0.25dB 0 to 150MHz
      • +/-1dB 150 to 400 MHz
  • Audio:
    • Bandwidth: 20 Hz to 20 kHz (+/- 0.1dB)
    • THD+Noise: 0.1% @20 kHz at rated max output
    • Noise Floor: <-90dBu
    • Channel Separation: <-85dB @ 1kHz
  • Audio Inputs:
    • Signal Type: 4 stereo balanced (may be used with unbalanced sources)
    • Connector Number/Type: 5 pin pluggable screw terminal
    • Impedance: 20k ohms balanced
    • Trim Range: -15dB to +5dB in 1dB steps
    • Gain Range: -45dB to +5dB in 1dB steps
  • Audio Output:
    • Number/Type: 1 stereo balanced or unbalanced
    • Connector Number/Type: One 5 pin pluggable screw terminal
    • Impedance: 50 ohms
    • Maximum Level:
    • 600 ohms: +12dBm balanced / +6dBm unbalanced
    • HI-Z: +14dBm balanced / +8dBm unbalanced
  • Sync (RN-410P/PA only):
    • Input Impedance: 511 ohms
    • Output Impedance: 75 ohms
    • Input Level: TTL 2.0 V minimum
    • Output Level: 5 V Into HI-Z / 2.4 V Into 75 Ohms
    • Output Rise And Fall Time: 1nS
    • Propagation Delay: 16nS
  • Power and Physical:
    • Power: 9 VAC @500mA power supply included or 12VDC @ 300mA
    • Connector Type: 2 pin pluggable screw terminals
    • Mounting: Standard 19” rack mount included
    • Shipping Weight: 3 lbs.
