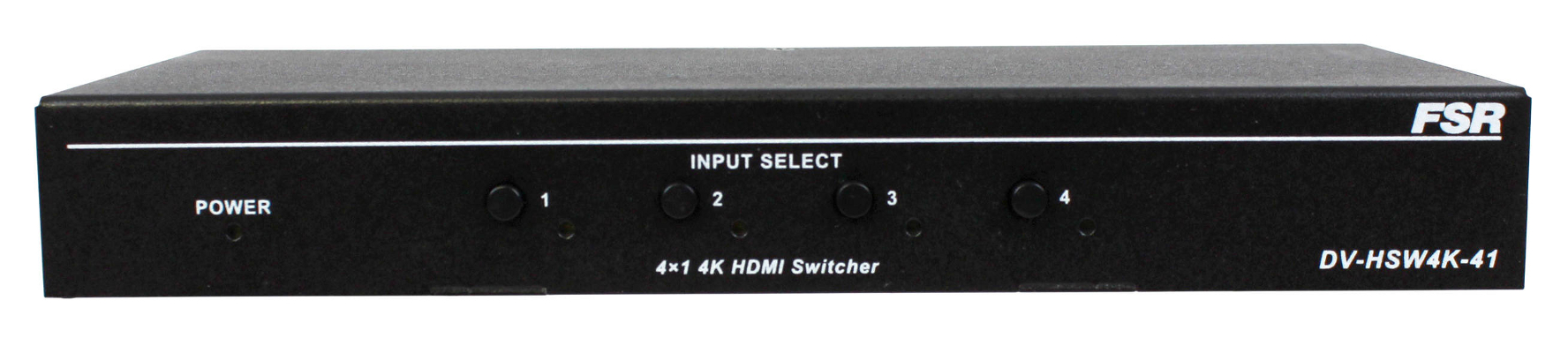

FSR DV-HSW4K-41 4x1 HDMI Switcher And 4K Resolutions Image 1
FSR DV-HSW4K-41 4x1 HDMI Switcher And 4K Resolutions Image 2
FSR DV-HSW4K-41 4x1 HDMI Switcher And 4K Resolutions
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The DV-HSW4K-41 from FSR is a 4 x 1 HDMI switcher - but it is also capable of handling 4k resolutions in place of the current DV-HSW-41, which cannot handle 4k, with the same footprint. This model can be controlled via front panel push-buttons or RS-232. The DV-HSW4K-41 is also an integral part of FSR's HuddleVU Collaboration Systems.

The DV-HSW4K-41 is a 4 by 1 4K HDMI switcher, a perfect solution for managing multiple sources. It provides four inputs for direct connection of HDMI devices, which gives you a high performance connection between four sources and a display without signal loss. Simply pressing one button to selects the desired HDMI source for display on the HDTV. The front panel indicators show the currently selected source. It can be widely used in digital entertainment centers, control centers, conference rooms, schools and corporate training environments.

FSR DV-HSW4K-41 Includes:

  • 1 x HDMI Switcher DV-HSW4K-41
  • 1 x 12VDC Power Supply
  • 2 x Mounting Ears
  • 1 x 3.81mm Phoenix Connector (3 Pin)

FSR DV-HSW4K-41 Features:

  • Easy installation
  • Resolutions up to 4K @30Hz
  • Both input/output port support HDMI cable up to 10m
  • Four push buttons to select the input source
  • HDMI 1.4 with 4K
  • HDCP compliant
  • EDID management
  • 12V DC Power Supply with locking connector included

FSR DV-HSW4K-41 Specifications:

  • Video:
    • Input: 4 x HDMI
    • Output: 1 x HDMI
    • Input/ output Signal Type:
      • HDMI: HDMI 1.4 with HDCP
    • Input/output Resolution Support:
      • HDMI: 480i,576i,480p,576p,720p @50, 720p @60,1080p @24, 1080i @25, 1080i @30,1080p @30, 1080p @50, 1080p @60, 4K x 2K @30
    • Maximum Pixel Clock: 297 MHz
    • Input Video Signal: 0.5~1.5 volts p-p
    • Video Impedance: 100 ohms
  • General:
    • Power Supply: 12V 0.5A DC
    • Power Consumption: 4.1 Watts Max
    • Control Method: Front Panel Buttons, RS232 control
    • Operating Temperature:
      • 32°F to 113°F (0°C to 45°C)
      • 10% to 90%, non-condensing
    • Storage Temperature:
      • -4°F to 140°F (-20°C to 70°C)
      • 10% to 90%, non-condensing
    • ESD Protection:
      • Human-body Model: ±4kV (Contact discharge)
    • Dimensions (L x W x H): 7.51" x 3.50" x 1.03" (191mmx 89mm x 26.1mm)
    • Weight: 1.00 lb (0.45kg.)
