Product Overview
The Shure BLX14/PGA31 Wireless System combines professional quality sound with simple setup and an intuitive interface for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it’s the most accessible way to own the stage.
The PGA31 performance headset microphone for general, speaking and performance use is a permanently-biased electret condenser microphone. Engineered to provide maximum versatility and reliable performance in a wide array of conditions at an affordable price.

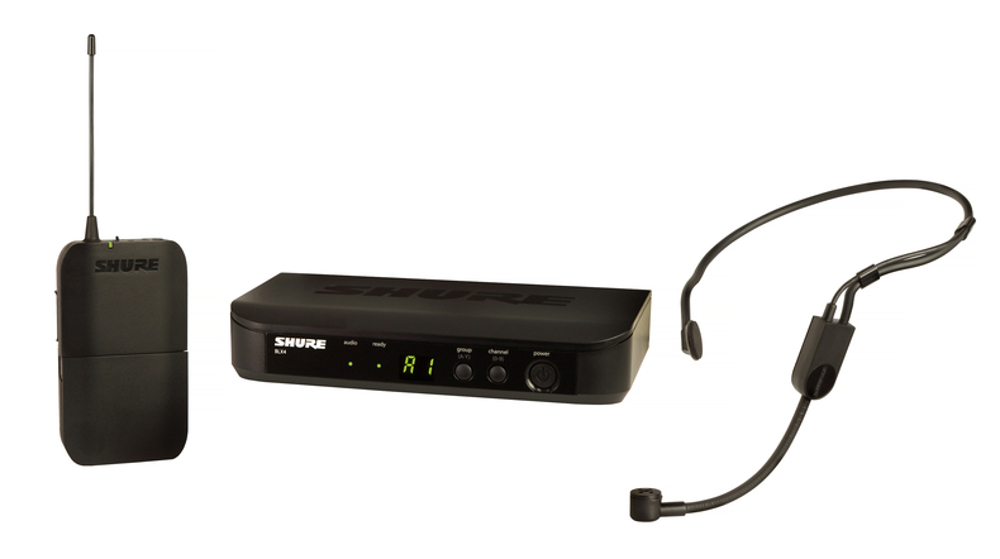

Includes
- BLX4 Wireless Receiver
- BLX1 Bodypack Transmitter
- PGA31 Headset Condenser Microphone
- Power Supply
- Windscreen
- Clothing clip
Features
- BLX System Features
- Up to 12 compatible systems per frequency band (region dependent)
- Microprocessor-controlled internal antenna diversity
- One-touch QuickScan frequency selection quickly locates the best frequency
- 1/4" and XLR audio outputs
- Two color audio status indicator LED
- Headset Microphone Features
- Wearable wireframe headset fits securely for multi-instrumentalists and active performers
- Permanently charged electret condenser element for detailed, crisp vocals
- Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
- Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
- TA4F (TQG) connector seamlessly integrates with existing Shure bodypack systems
- Also available with a wide variety of Shure wireless systems, renowned for ease of use and reliable performance
- Included windscreen tames plosive, breath and wind noise for clean and intelligble sound
- Tailored frequency response primed for great sound on vocals
- Legendary Shure precision engineering for durability and performance
Specifications
- System
- Working Range: 91 m (300 ft) Line of Sight (actual range depends on RF signal absorption, reflection and interference)
- Audio Frequency Response: 50 to 15,000 Hz (dependent on microphone type)
- Total Harmonic Distortion, Ref. ±33 kHz deviation with 1 kHz tone: 0.5%, typical
- Dynamic Range: 100 dB, A-weighted, typical
- Operating Temperature: -18°C (0°F) to 57°C (135°F) (battery characteristics may limit this range)
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
- BLX4 Wireless Receiver
- Output Impedance
- XLR connector: 200 Ω
- 6.35 mm (1/4") connector: 50 Ω
- Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone
- XLR connector: –27 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
- RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions (H x W x D): 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm)
- Weight: 8.5 oz. (241 g)
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
- BLX1 Bodypack Transmitter
- Audio Input Level
- max: -16 dBV maximum
- min (0 dB): +10 dBV maximum
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 MΩ
- RF Transmitter Output: 10 mW, typical (varies by region)
- Dimensions (H x W x D): 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm)
- Weight: 2.6 oz. (75 g), without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
- PGA31 Headset Condenser Microphone
- Type: Electret Condenser
- Frequency Response: 60 Hz to 20,000 Hz
- Polar Pattern: Unidirectional (Cardioid)
- Output Impedance, @ 1 kHz: 600 Ω
- Audio Output Level: -50.0 dBV/Pa
- Signal-To-Noise Ratio, @ 1 kHz: 66 dB
- Maximum SPL, 1000 Ω load, @ 3%THD: 145.0 dB
- Dynamic Range, @ 1 kHz, 1000 Ω load: 117.0 dB
- Equivalent Output Noise, typical, A-Weighted: 28 dB
- Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
- Cable: 1.3 m (50 in.)
- Connector: TA4F
