Product Overview

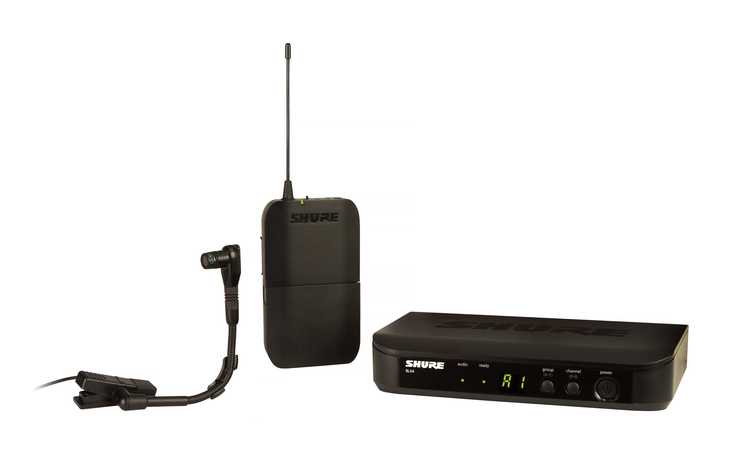

The ShureBLX14/B98-H9 is a bodypack wireless system that features a W8981-1/C cardioid condenser instrument microphone. Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage. The BETA 98 H/C comes in the H9 (512 - 541 MHz).
Includes:
- BLX1 Bodypack transmitter
- BLX4 single-channel receiver
- BETA 98 H/C instrument microphone
Features:
- BLX1
- Quick and easy receiver frequency matching
- TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
- Easily accessible On / Off switch
- BLX4
- XLR and 1/4" output connectors
- Two-color audio status indicator LED:
- Green: Normal audio levels
- Red: Excessive audio levels (overload / clipping)
- BETA 98 H/C
- Transformerless preamplifier circuitry which improves linearity across the full frequency range.
- Pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise
- Tailored frequency response for open, natural sound reproduction
- Compact, lightweight construction provides a low degree of visibility
Specifications:
- BLX1
- Dimensions (H x W x D): 110 x 64 x 21 mm
- Weight: 75 g (without batteries)
- Battery Life: up to 14 hours (alkaline)
- BLX4
- Dimensions (H x W x D): 40 x 188 x 103 mm
- Weight: 241 g (8.5 oz)
- Power Requirements: 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied byexternal power supply (tip positive)
- BETA 98 H/C
- Cartridge Type: Electret Condenser
- Frequency Response: 20 to 20,000 Hz
- Polar Pattern: Cardioid
- Output Impedance: 150 Ohms
- Power Requirements: 11–52 VDC phantom power (IEC-61938), 1.2 mA
