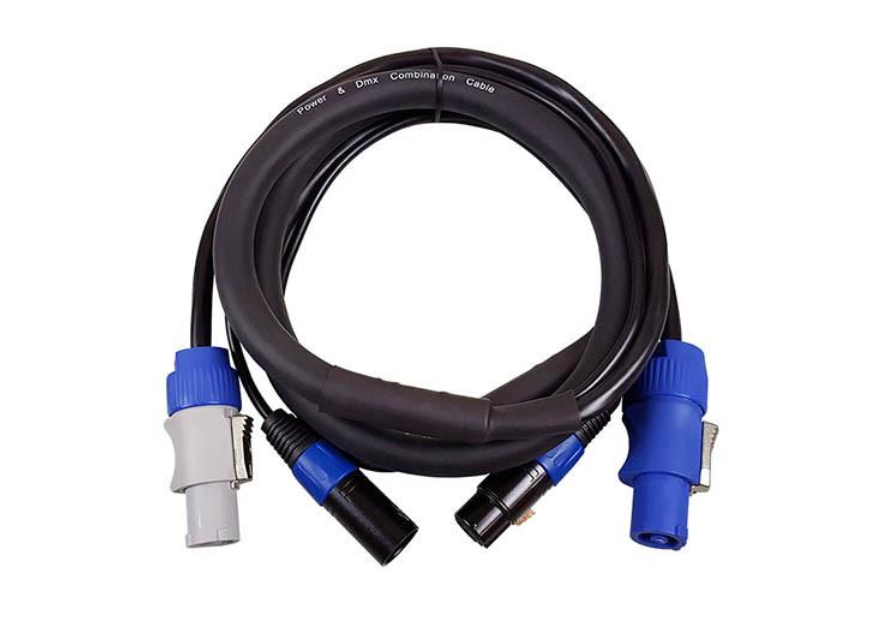

Blizzard Lighting DMX5PC-3
3 ft Combo Cable with Powercon to Powercon PLUS 5-pin DMX XLRM to XLRF

OUR PART #:  DMX5PC-3

The Blizzard Lighting DMX5PC-3 is a 3 ft PowerCon compatible (male-blue) to (male-white) 14 AWG power PLUS 5-pin XLR(M) – XLR(F) 120 ohm DMX combo cable.
Learn More
Our Price: $18.31
List Price: $32.95
You save 44%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blizzard Lighting DMX5PC-3
Qty:
Similar Products

The Blizzard Lighting DMX5PC-3 is a 3 ft PowerCon compatible (male-blue) to (male-white) 14 AWG power PLUS 5-pin XLR(M) – XLR(F) 120 ohm DMX combo cable.

Now you can make your lighting setup simpler and cleaner with this Cool Cables™ powerCON® + DMX combo cable. It can replace any set of individual power and DMX extensions with a single neatly wrapped cable. It comes in various lengths, with this version offering 5-pin XLR connectors, and can be used to link the power and data of any equipment with DMX and powerCON® input/output connections. The power cable features heavy-duty 14AWG wire, and is fitted with powerCON® compatible input (blue) to output (white) connectors on either end.

Since this is a DMX cable it offers 120 ohm impedance, low capacitance, and a double (foil and braid) shield. On either end of the cable are high quality XLR(M) to XLR(F) connectors. And like all Cool Cables™ DMX cables, they offer reliable data transfer through their data-specific design and wire that is wrapped 5x tighter than any traditional XLR cable. Finally, both power and DMX cables are encased together in a highly flexible outer jacket with heat shrink.

Blizzard Lighting DMX5PC-3 Specifications:

  • Power Cable:
    • Heavy-Duty 14AWG
    • powerCON® compatible input (blue) connector
    • powerCON® compatible output (white) connector
    • 3 conductor cord, heavy duty - black
    • Maximum amperage: 15 amps
  • DMX Signal/Data:
    • 3-pin or 5-pin XLR (male/female) connectors, black/blue
    • Double shield (foil and braid)
    • 120 ohm impedance
    • Low capacitance
    • Limited lifetime warranty
    • Dual velcro straps included with each cable
