Product Overview

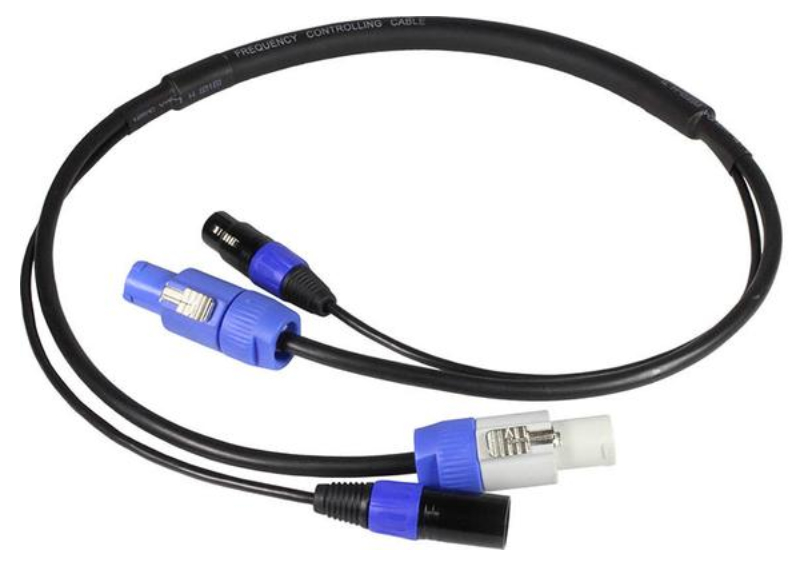

Blizzard Lighting's DMXPC-3, a 3' Cool Cables™ powercon and DMX combo cable, can be used to link the power and data of any equipment with DMX and powercon input/output connections. The Cool Cables™ powercon and DMX combo cables come in various lengths, with 3-pin or 5-pin XLR connectors so they can replace any set of individual power and DMX extensions with a single neatly wrapped cable making your lighting setup simpler and cleaner. This model, DMXPC-3, features heavy-duty 14AWG wire fitted with powercon compatible blue input to white output connectors on either end for power, plus its 120 ohm impedance, low capacitance with foil and braided double shield, 3-pin XLR male to female DMX cable.

Blizzard DMXPC 3 Features:

  • Power Cable:
    • Heavy-Duty 14AWG
    • powercon compatible input (blue) connector
    • powercon compatible output (white) connector
    • 3 conductor cord, heavy duty - black
    • Maximum amperage: 15 amps
  • DMX Signal/Data:
    • 3-pin XLR (male/female) connectors, black/blue
    • Double shield (foil and braid)
    • 120 ohm impedance
    • Low capacitance
  • Limited lifetime warranty
  • Dual velcro straps included with each cable

Blizzard DMXPC 3 Specifications:

  • Length: 3 ft
  • Power Cable:
    • Heavy-Duty 14AWG
    • powercon compatible input (blue) connector
    • powercon compatible output (white) connector
    • 3 conductor cord, heavy duty - black
    • Maximum amperage: 15 amps
  • DMX Signal/Data:
    • 3-pin XLR (male/female) connectors, black/blue
    • Double shield (foil and braid)
    • 120 ohm impedance
    • Low capacitance
  • Limited lifetime warranty
