Blizzard Lighting Motif Vignette
18x 10w RGBW LED Light Strip with Remote Control Compatibility

OUR PART #:  MOTIF-VIGNETTE

With the Motif Vignette™ from Blizzard Lighting, you'll get an IP65 rated outdoor lighting fixture capable of making a statement, while able to provide brilliant...
Learn More
Selected Model Price: $379.90
List Price: $499.90
Save up to 24%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blizzard Lighting Motif Vignette
Select model: (shipping times are approximate)
Qty:

Similar Products

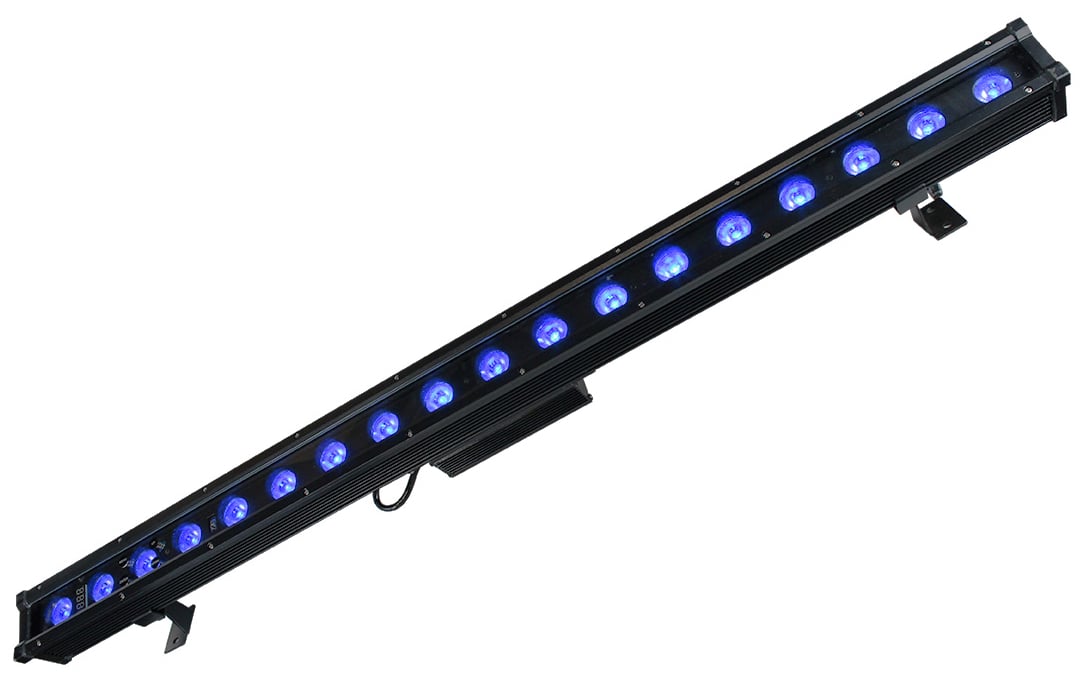

With the Motif Vignette™ from Blizzard Lighting, you'll get an IP65 rated outdoor lighting fixture capable of making a statement, while able to provide brilliant, richly mixed colors, and lighten the mood with a soft, gentile touch. This superb luminaire features 18x 10-watt high output Quad-Color RGBW LEDs with 25 degree beam angle, all housed in an attractive, 1-meter linear package.

Offering everything the smaller Motif Sketch™, and Motif Fresco™ lights do, plus a whole lot more, it's among the latest and greatest in the Motif™ series of IR remote-controllable outdoor fixtures. It can be controlled by its own unique IR remote control (sold separately) that's simple to use and provides the exact same functionality of its onboard LED control panel, but with the addition of quick access shortcut buttons to its auto mode and custom programs.

The Motif Vignette can also be controlled via 10/7/5/4 or even only 3 DMX channels, or directly with the easy-to-use, easily accessible LED control panel found right on the face of the unit, right under its water-tight tempered glass lens. The 4x electronic touch sensitive menu buttons really make programming (and button pushing) a breeze.

It has highly efficient, natural convection cooling thanks to an attractive cast aluminum housing with heat sink design which means no internal cooling fan is necessary in these fixtures, so there's absolutely zero operational noise. Motif Vignette LED fixtures make an ideal choice for any "sound-sensitive" situation.

Other exceptional features of the Motif Vignette fixtures include many onboard preset colors + white color temperature settings, menu key lock, flicker-free constant-current LED driver, variable electronic dimmer & strobe, color calibration settings, (5) onboard programs, (3) customizable programs, and 32-bit dimming curve settings for smoother (and slower) dimming functionality.

Dual mounting brackets are also included, as well as an IP-rated AC power input cord with cable cap, 3-pin extended IP rated DMX I/O plugs, a set of IP rated DMX I/O cables, and either black or white colored housing selection (please specify when ordering).

And you can rest assured it's also backed by Blizzard's 2-year warranty.

Blizzard Lighting Motif Vignette Includes:

  • 1 x Motif Vignette™ LED Fixture
  • 1 x IP Rated AC Power Cord with Cable Cap
  • 1 x Set of IP Rated DMX In/Out cables
  • 1 x User Manual

Blizzard Lighting Motif Vignette Main Features:

  • Exceptional color mixing from 18x 10-watt Quad-Color LEDs
  • Advanced heat sink design for zero fan noise
  • Multiple onboard color presets and auto programs
  • User adjustable program speed & fade times
  • 0-100% variable electronic dimmer
  • Variable electronic strobe
  • Durable cast aluminum housing and mounting brackets
  • Tempered glass lens and watertight internal gaskets
  • Easy-to-use 4-button LED control panel menu
  • Built like a rock (It hits the gym regularly)
  • USITT DMX-512 (3/4/5/7 and 10-channels)
  • 3-pin Input/Output
  • Easy to use IR remote control (sold separately)

Blizzard Lighting Motif Vignette Specifications:

  • Power:
    • Operating voltage: 100-264VAC, 50-60 Hertz
    • Power Consumption: 83W, .98A, PF: .68
  • Light Source: 18x 10-watt LEDs, 100,000 hours
  • Optical: 25°
  • Thermal: 104° F (40° C) ambient
  • Control:
    • USITT DMX-512
    • DMX channels: 3/4/5/7 and 10-channels
    • Input: 3-pin XLR Male
    • Output: 3-pin XLR Female
    • Operating Modes: DMX512, Master/Slave, Auto, Standalone
  • Physical:
    • Dimensions (WxDxH): 39.8" x 2.7" x 4" (1001 mm x 68.8 mm x 100.1 mm)
    • Weight: 9 lbs (4.1 kg)
  • Warranty: 2-year limited warranty, does not cover malfunction caused by damage to LEDs

NOTE:The information and specifications contained in this document are subject to change without notice.
