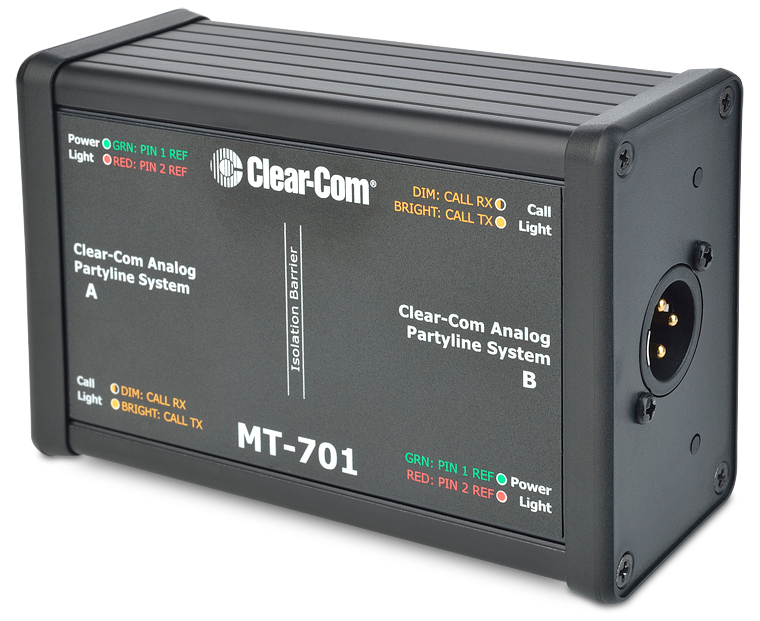

Clear-Com MT-701
Isolation Box for Partyline Interface

OUR PART #:  MT-701

The MT-701 isolation box effectively reduces the hum in Clear-Com Encore Partyline products when multiple grounds are present.
Learn More
Our Price: $288.00
List Price: $320.00
You save 10%!
Write the first review.
Clear-Com MT-701
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The MT-701 isolation box effectively reduces the hum in Clear-Com Encore Partyline products when multiple grounds are present. The isolation box is also capable of bridging two Encore partyline systems together making it an effective tool for any audio enthusiast.

Clear-Com MT-701 Isolation Box Features:

  • New transformer provides 6dB gain improvement overthe MT-1
  • Only one termination required between connected systems
  • 4 LEDs for status information
  • Easy installation with standard XLR cables
  • High-quality enclosure for professional use and appearance

Clear-Com MT-701 Isolation Box Specifications:

  • Audio
    • Pin 2 Impedance: >5000 Ohms
    • Max Level: +2 dBu
    • Distortion: <0.2% THD (200Hz - 10KHz, -10 dBu)
    • Frequency Response: 100KHz - 10 KHz, +2 dBu
    • Nominal Input Level: -18 dBu (Clear-Com)
  • Connectors
    • (1) XLR-3M
    • (1) XLR-3F
  • Power Supply
    • Power Consumption: <5 mA
  • Temperature
    • Operating: 32°F - +122°F (0°C - +50°C)
  • Dimensions
    • 3.2 in W x 1.8 in H x 5.0 in D
    • (81.1 mm x 46.1 mm x 126 mm)
  • Weight
    • 0.6 lb (0.272 kg)
