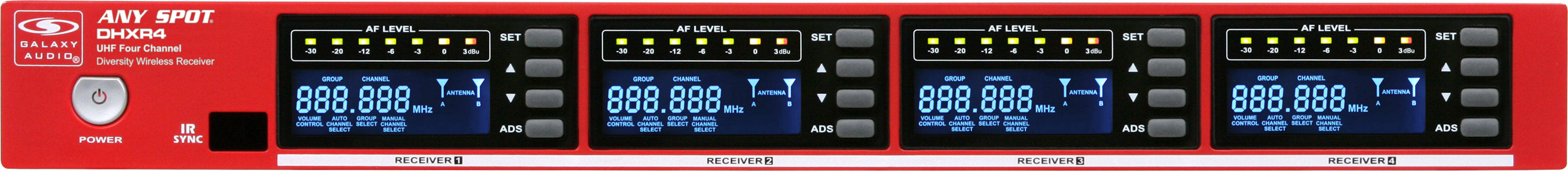

Galaxy Audio DHXR4
Four Channel Receiver

OUR PART #:  DHXR4

Galaxy Audio's DHXR4 Receiver has a built in antenna combiner and power distributor.
Learn More
Selected Model Price: $799.99
List Price: $1,499.99
Save up to 47%!
Write the first review.
Galaxy Audio DHXR4
Select a Model: (shipping times are approximate)
Qty:
Related Products

Galaxy Audio's DHXR4 Receiver has a built in antenna combiner and power distributor. The DHXR4 has four independent XLR outputs (one for each channel) as well as mixed output, allowing the user to submix the microphones on the DHXR4 and come out of one XLR or ¼" output.

NOTE: Any Spot wireless Systems work on code D and L Frequencies.  To learn more, please consult your Sales Pro.

Galaxy Audio DHxR4 Receiver Features:

  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Diversity Antennas
  • Squelch Adjustment
  • Tone-key Squelch
  • XLR/¼" Output
  • Detachable BNC Antennas

Galaxy Audio DHxR4 Receiver Specifications:

  • Audio Output Level: (+/-30kHz deviation, 1kHz tone) XLR connector (into 600 Ohms load) -12dBV ¼" connector (into 3k Ohms load)-18dBV
  • Output Impedance: XLR connector 200Ohms ¼" connector 1k Ohms
  • XLR Output: Impedance balanced
  • Pin 1: Ground (cable shield)
  • Pin 2: Audio
  • Pin 3: No Audio
  • Sensitivity: -93dBm for 30dB SINAD, typical
  • Image Rejection: >90dB
  • Dimensions: 1.7" x 8.3" x 6.3" (44mm H x 212mm W x160mm D)
  • Weight: 31.75oz (900 g)
  • Power Requirements: 12-18 V dc at 400mA, supplied by external power supply
