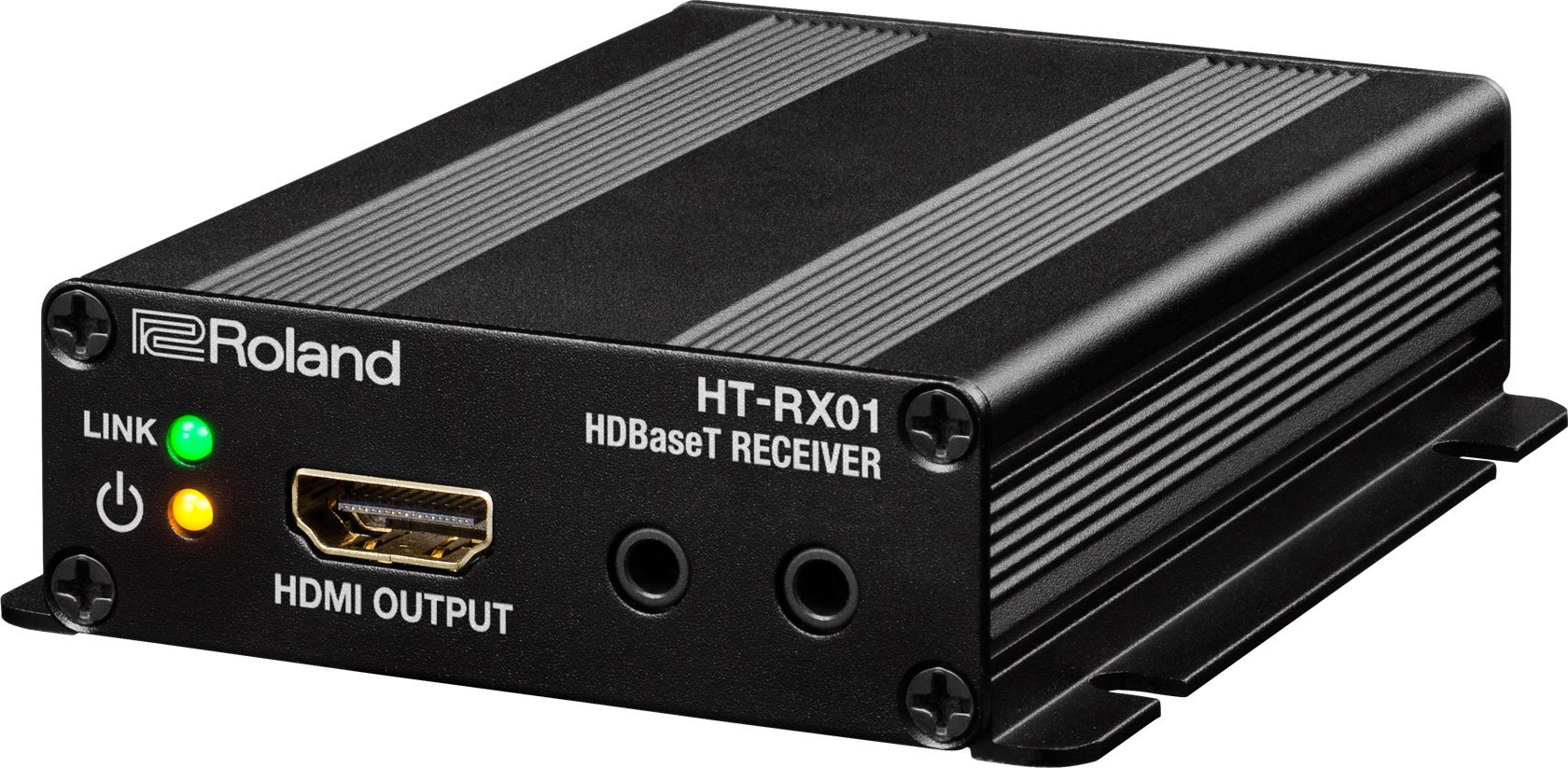

Roland System Group HT-RX01
HD BaseT-Compatible Receiver


Roland's HT-RX01 is a HDBaseT-compatible receiver capable of transmitting HDMI signals up to 100 meters (328.08 feet) over an Ethernet cable.
Learn More
Our Price: $250.00
Write the first review.
Roland System Group HT-RX01
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Roland's HT-RX01 is a HDBaseT-compatible receiver capable of transmitting HDMI signals up to 100 meters (328.08 feet) over an Ethernet cable. The HT-RX01 can be used as a receiver for the HDBaseT output from XS series multi-format matrix switchers. Using the RS-232C signal transmission function of the XS series lets you transmit RS-232C signals input to the XS series device along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.

Now long-distance HDMI transmission is possible by connecting an Ethernet cable to the HT-TX01 or HT-RX01 enables transmission of HDMI signals over a distances of up to 100 meters. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. In addition to HDMI signals, RS-232C signals can also be transmitted, making it possible to send control signals along with video and audio reducing system wiring.

Roland HT-RX01 Includes:

  • AC adaptor
  • AC plugs (3 types)
  • RS-232 conversion cable (2 m (6 ft 6 inches))
  • ferrite core x 3
  • Owner's Manual

Roland HT-RX01 Specifications:

  • Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p,720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600,1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200,1920 x 1200

*RGB formats: Conforms to VESA DMT Version 1.0 Revision 11.
*The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
*1920 x 1200/60Hz : Reduced blanking

  • Audio Formats: The maximum is PCM 8ch, Dolby Digital,True HD DTS-HD Master Audio
  • Input Connectors:
    • HT-TX01: HDMI x 1 : Type A 19 pins
    • HT-RX01: RJ45 x 1
  • Output Connectors:
    • HT-TX01: RJ45 x 1
    • HT-RX01: HDMI x 1 : Type A 19 pins
  • Other Connectors: RS-232 x 1 : 9 pins D-sub type

NOTE: *when using additional RS-232 cable

  • Transmission distance: The maximum is 100m (328 ft)

*To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable.
*The available distance depends on the quality of the LAN cable.

  • Operating temperature range:
    • 0° to 40°C
    • 32° to 104°F
  • Operating temperature humidity: 10 to 85 % (no condensation)
  • Storage temperature range:
    • 20° to 60°C
    • 4° to 140°F
  • Storage temperature humidity: 10 to 85 % (no condensation)
  • Current Draw: 2 A
  • Power Supply: AC Adaptor
  • Dimensions (WxDxH):
    • 81 x 93 x 24 mm
    • 3-3/16" x 3-11/16" x 1"
  • Weight excl. AC adaptor: 11 oz (300 g)
  • Size and Weight:
    • Width: 3-1/4" (81 mm)
    • Depth: 3-11/16" (93 mm)
    • Height: 1" (24 mm)
    • Weight: 0 lbs. 11 oz. (300 g)
