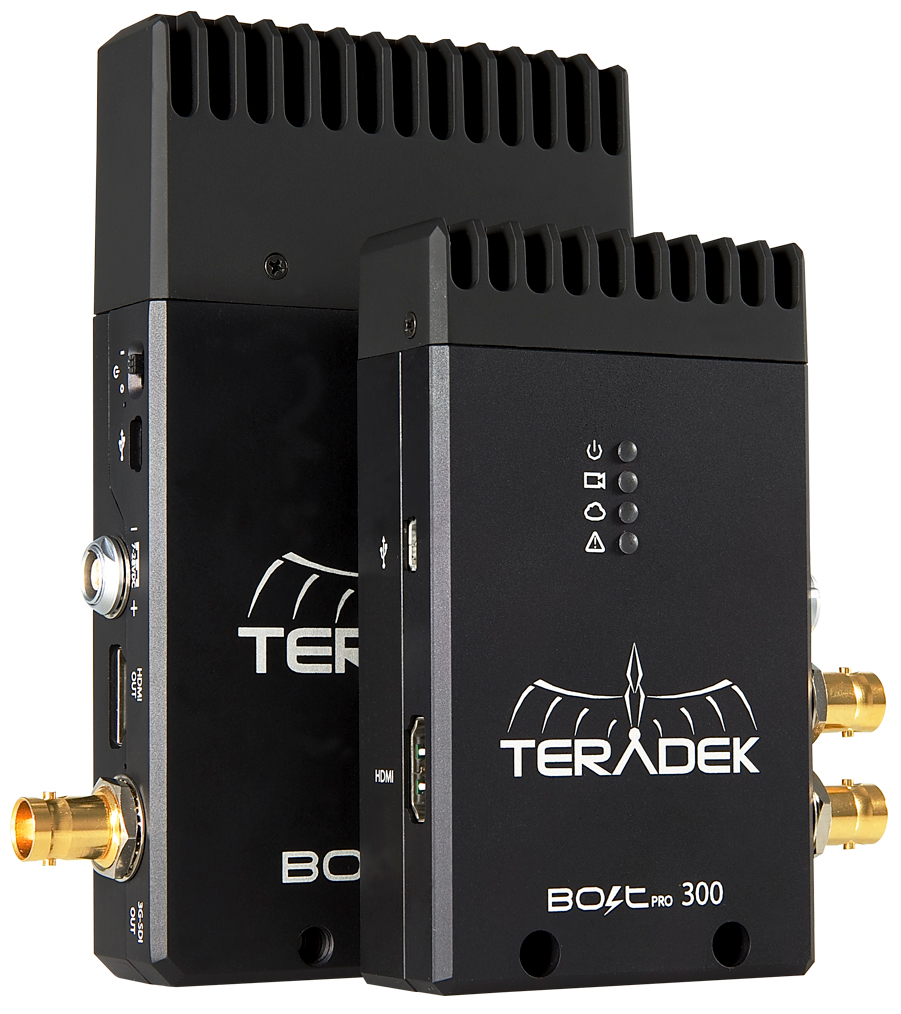

Teradek Bolt Pro 300 HDMI
Tx/Rx Video Transmitter/Receiver Set


Our Price: $1,990.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Teradek Bolt Pro 300 HDMI, part of the Teradek Bolt Pro series, is a zero delay (< 1ms) wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 300 ft over the unlicensed 5GHz band, is multicast capable up to 4 receivers, includes the USB 3.0 GRAB Engine, and supports timecode as well as metadata pass-through.

NOTE: PSU 2-Pin Lemo 18W AC adaptor is not included.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's GRAB Engine. This feature allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

3D LUT Integration
The Bolt Pro 300 HDMI has integrated 3D LUTs that output custom graded video, great for directors and producers who want to monitor footage with a color palette that's closer to final grade rather than flat RAW images. Custom LUTs can be loaded via the Bolt Manager.

Real-Time Cross Conversion
Supports real-time cross conversion from TX to RX, letting you automatically cross convert from HDMI to 3G-SDI, or vice versa, without any extra hardware, providing added convenience.

Teradek Bolt Pro 300 HDMI Includes:

  • Bolt Pro 300 HDMI Transmitter
  • Bolt 300 HDMI Receiver
  • 1/4 20" Thumb Screw
  • 1/2 20" Lightstand Adapter
  • PSU 2-Pin Lemo 18W
  • Hot Shoe Adapter
  • Bit 118 P-tap to 2-pin Lemo
  • 2x HDMI Cable
  • 1-Year Warranty

Teradek Bolt Pro 300 HDMI Features:

  • 3G-SDI
  • HDMI
  • 5GHz
  • 1080p60
  • Multicast
  • Fanless RX
  • Metadata/Timecode

Teradek Bolt Pro 300 HDMI Specifications:


  • Video resolution:
    • 1080p60/59.94/50/30/29.97/25/24/23.98
    • 1080psf30/29.97/25/24/23.98
    • 1080i60/59.94/50
    • 720p60/59.94/50
    • 480p59.94/576p50 (via HDMI ports only)
    • 480i(NTSC)/576i(PAL)
  • Color sampling: Y:Cb:Cr = 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later); RGB 4:4:4 (HDMI out, 8-bit color)
  • Inputs (Transmitter only):
    • 1 x 75 Ohm BNC
    • 1 x Type A receptacle HDMI
  • Outputs:
    • Transmitter: 1 x 75 Ohm BNC(Loop-out)
    • Receiver:
      • 1 x USB 3.0 micro B receptacle
      • 1 x 75 Ohm BNC
      • 1 x Type A receptacle HDMI
  • Delay (TX to RX): <0.001sec when="" no="" video="" format="" conversion="" is="" enabled="" td="">


  • Format support: 48kHz 24-bit PCM


  • Frequency:
    • Non-DFS Frequencies:
      • US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
      • EU & JP: 5.19 ~ 5.23 GHz
    • DFS Frequencies:
      • US: 5.27 ~ 5.55 GHz and 5.67 GHz
      • EU & JP: 5.27 ~ 5.67 GHz
  • RF power: 17dBm EIRP  15dBm EIRP
  • Range: Up to 300ft line of sight
  • Unicast/Multicast: Yes (both Transmitter and Reciever)
  • Noise rejection: Can coexist with WiFi® and 5GHz cordless phones


  • Input: 2-Pin Lemo 7-28 VDC (both Transmitter and Receiver)
  • Internal battery: No
  • Consumption (1080p60):
    • Transmitter: 6.5 Watts
    • Reciever: 8.2 Watts


  • Manufacturer Part#: 10-0910
  • LCD screen: No
  • Menu joystick:
    • Transmitter: No
    • Receiver: Yes
  • Dimensions:
    • Transmitter: 1.06" x 2.61" x 4.42" (27.0 x 66.1 x 112.3mm)
    • Receiver: 1.0" x 3.5" x 5.8" (25.2 x 88.9 x 146.5mm)
  • Weight:
    • Transmitter: 9.2 oz (262 g)
    • Receiver: 12.2 oz (346 g)
  • Firmware: Upgradeable via Mini-USB
  • Operating temperature: 0° ~ 50° C
  • Chassis material (both Transmitter and Receiver):
    • Cap: Plastic
    • Body: Milled aluminum
    • Hot-shoe mount
  • Mountability: Multiple mounting options with 1/4" holes (both Transmitter and Receiver):

NOTE/WARNING: To avoid power failure with third party cables, power the device on without a video source connected. If the unit boots up, then the system is ready for use. If it doesn't boot up, the power cable doesn't have the correct polarity and will need to be replaced before a video source is connected.
