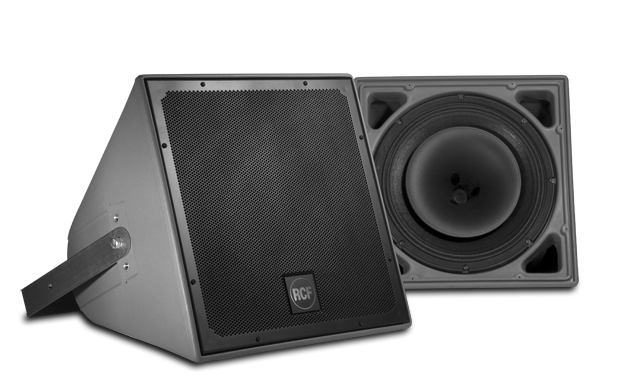

RCF P6215
Weatherproof Passive Coaxial Two Way Speaker

OUR PART #:  P6215

The RCF P6215 is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system for very high output and longer throw applications.
Learn More
Our Price: $1,499.00
List Price: $2,149.00
You save 30%!
Write the first review.
RCF P6215
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The RCF P6215 is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system for very high output and longer throw applications. The high-frequency section is a constant directivity CMD horn loaded to a 1.3” RCF Precision compression driver with a 2.5” diaphragm assembly for smooth, wide dispersion. The low frequency transducer is a 15” woofer with a 3” voice coil. The cabinet is equipped with 12 x M10 brass inserts, a stainless steel U-Bracket and pair of spacers for 90° mounting. P6215 meets the requirements of IP 55 code (International Protection Rating).

RCF P6215 Features:

  • Cabinet is a single piece rotational moulded in mediumdensity polyethylene, fully UV protected and waterproof IP 55
  • Front grille in custom perforated aluminium withopen-cell fibres and water repellent woven fabric backing
  • Stainless steel bracket
  • One 15" high-output LF transducer with 3" voice coil
  • One RCF Precision 1.3" C. Driver with 2.5" voice coil
  • 60° x 60° conical horn
  • 10° X 20° enclosure sides for array configurations
  • Active Mosfet Compression Driver Protection
  • 12 brass suspension points (M10)
  • Line transformer

RCF P6215 Specifications:

  • Frequency Response: -10 dB: 75 Hz - 20000 Hz
  • Max SPL @ 1m: 134 dB
  • Horizontal coverage angle: 60°
  • Vertical coverage angle: 60°
  • Directivity index; Q: 12.8
  • System Sensitivity: 100 dB
  • Nominal Impedance: 8 Ohms
  • Power Handling: 600 W
  • Peak Power Handling: 2400 W
  • Protections: Dynamic
  • Crossover frequencies: 1100 Hz
  • Dimensions (H x W x D): 463 x 463 x 433 mm (18.22 x 18.22 x 17.04 in)
  • Net Weight: 19.2 kg (42.32 lbs)
