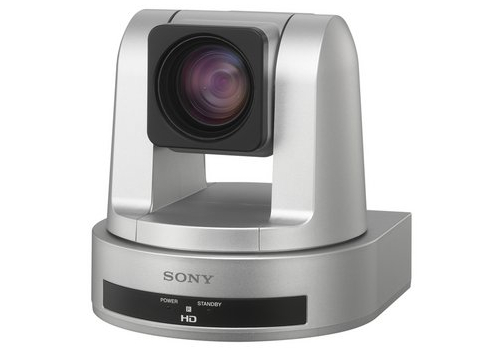

Sony SRG120DU
Full HD USB 3.0 Plug & Play, UVC Video Compatible PTZ Camera


Our Price: $1,950.00
List Price: $2,449.00
You save 20%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Sony SRG-120DU HD PTZ camera merges plug-and-play simplicity with suburb image quality. Sony continues to expand its popular SRG PTZ Camera line with this USB 3.0 UVC Video Compatible PTZ Camera. Affordable and professional it delivers 1080/59.94p Full HD, and is designed to easily interface with a dedicated computer system via the common USB technology found on most computers. Just connect the camera directly to any standard PC thru the USB 3.0 input, and you're quickly connected with popular Unified Communications and Collaboration (UCC), as well as multimedia streaming devices, offering an ideal solution for visual communications and remote monitoring applications. Its high-sensitivity 1/2.8-type Exmor™ CMOS sensor as well as the latest View-DR™ technology provide extremely wide dynamic range, plus with Sony's full capture Wide-D technology it compensates for backlight or changing lighting conditions. Additionally, XDNR technology reduces noise and gives clear imaging in low lighting conditions. An extremely wide field of view (71°), and a 12x optical/12x digital zoom auto focus lens makes it ideal for small to mid-sized rooms. The SRG-120DU has fast and silent pan/tilt/zoom capabilities with control via VISCA protocol (RS-232 and RJ45 [IP] connectors. It's great for noise restricted environments like hospitals, classrooms and meeting rooms thanks to its less than 35dB drive motor noise. Comes in a silver housing, and its all-in-one, compact, lightweight design makes for easy integration into an array of locations and environments. Use the Sony SRG-120DU camera to convert any classroom, boardroom, courtroom, or medical space into a professional video collaboration environment.

Sony SRG-120DU Features/Highlights:

  • 1/2.8-type Exmor® CMOS Sensor
  • Full HD (1920 x 1080) Picture Quality
  • 12x Optical/12x Digital Zoom
  • View-DR® Wide Dynamic Range Technology for extreme lighting conditions
  • XDNR® Noise Reduction Technology for clear images in low-light conditions
  • 71° Wide Horizontal Viewing Angle
  • Smooth and quiet PTZ movement
  • VISCA™ Protocol over IP as well as RS-232 control
  • Compatible with Sony’s RM-IP10 Joystick Controller

Sony SRG-120DU Specifications


  • Image Device: 1/2.8-type Exmor CMOS Sensor
  • Effective Pixels: Approximately 2.1 megapixels
  • Lens: 12x optical/12x digital zoom
  • Minimum Object Distance: 10 mm (Wide) to 1500 mm (Tele)
  • Shutter Speed:
    • 1/1 to 1/10000 sec (59.94 Hz system)
    • 1/1 to 1/10000 sec (50 Hz system)
  • Gain: Auto/Manual (0 to +43 dB)
  • White Balance:
    • Auto
    • Indoor
    • Outdoor
    • One-push auto
    • ATW
    • Manual
  • Pan Angle/Speed: Pan: +/- 100 degrees / 300 degrees/sec
  • Tilt Angle/Speed: Tilt: +/- 25 degrees / 126 degrees / sec
  • Horizontal Viewing Angle: 71 degrees wide
  • Digital Zoom: 12 x
  • Focus System: Auto/Manual
  • Sync System: INT
  • Wide Dynamic Range: Yes


  • Camera Control Interface:  RS-232/RJ45

Video Output

  • Minimum Illumination: 1.8 lx (50 IRE, F1.8 30 fps)
  • S/N Ratio: 50 dB
  • Video Output: HD USB 3.0
  • Signal System :
    • 1080/59.54p, 50p, 29.87p, 25p
    • 720/59.94p, 50p, 29.97p, 25p


  • Dimensions: 6-1/8" W x 6-1/4" H x 6-1/8" D (153 x 156 x 153 mm)
  • Weight: 3 lbs, 8.4 oz (1.6 kg)


  • Requirements:  DC 12V (DC 10.8 to 13.2 V)
  • Consumption:  16.8 W


  • Operating Temperature:  32°F to 104° F (0°C to 40° C)
  • Storage Temperature:  -4°F to + 140°F (-20°C to 60°C)
