Radio Design Labs D-RT2
Remote Control Selector - Power On/Off

OUR PART #  D-RT2

Our Price: $95.87
List Price: $137.39
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' D-RT2 is a wall panel remote control selector designed for turning an audio or video source on or off.

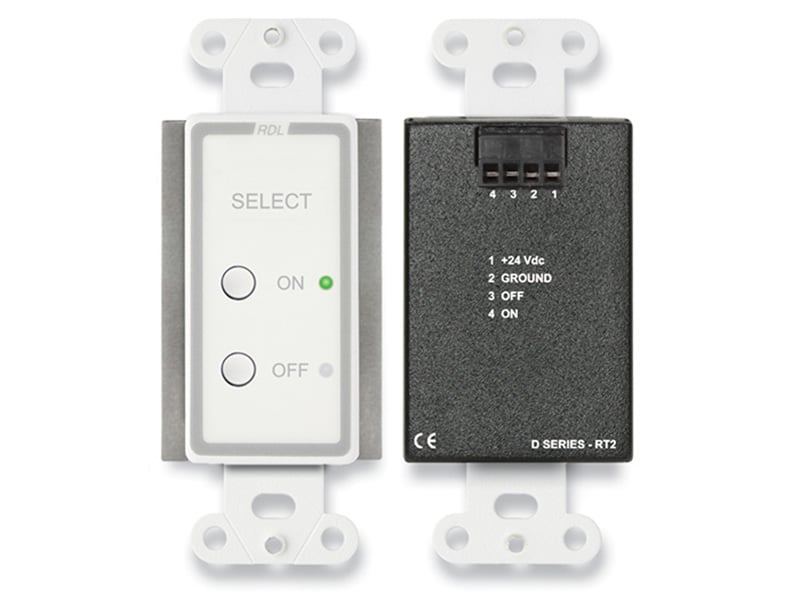

The front panel of the D-RT2 features two pushbuttons with two associated LEDs. Upon initial power-up, the OFF mode is selected. Touching the other button de-selects OFF and immediately selects ON. An LED adjacent to each button shows which mode is selected.

In a typical installation, the D-RT2 may be used to turn an audio or video source on or off. To turn on an audio source, the D-RT2 may be connected to an RDL ST-SSR1 or ST-RX2 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. In each of the above examples, only one output terminal is needed for triggering, therefore a single shielded pair (3-conductor cable) is required for remote connection. For more complex switching networks, both outputs (ON and OFF) may be used. In an audio or video control installation, the D-RT2 may be mounted adjacent to an RDL remote volume control, such as the RLC2, RLC3 or RLC10K.

In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote.

NOTE:Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product. Please click here for more information on the PS-24AS power supply.

Radio Design Labs D-RT2 Features:

  • Remote Selection of ON or OFF
  • Single-Button Selection for Each Function
  • Open-collector Switching
  • 3-wire or 4-wire Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL® Remote Controls
  • LED Indication

Radio Design Labs D-RT2 Specifications:

  • Selectors (2): Momentary pushbuttons, (1 for ON, 1for OFF)
  • Indicators (2): Green/Red LEDs, (indicates status ON or OFF respectively)
  • Connections: Detachable terminal block; Power input; Separate open-collector outputs for ON and OFF (25 mA max.)
  • Ambient Operating Environment: 0° C to 55° C
  • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
  • Mounting: Mounts in standard US electrical box, RDLWB- or SMB- series boxes; cover plate available separately
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625" x 4.625" x 2.125"
  • Shipping Weight: 0.45 lbs.
  • WEEE weight: 0.285 lbs.
