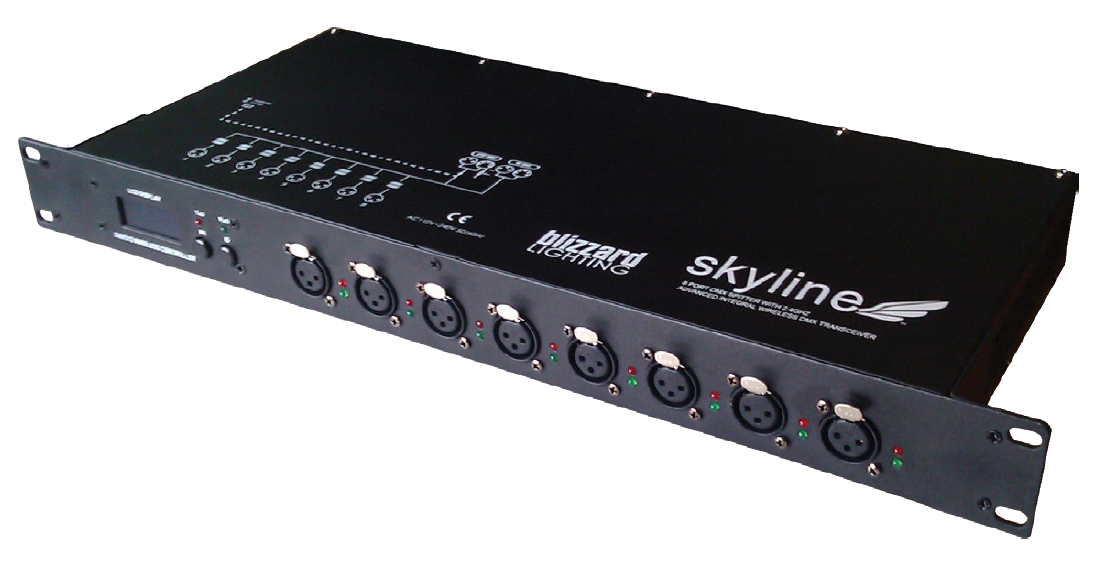

Blizzard Lighting SKYLINE
8 Port DMX Splitter with 2.4GHz Wireless DMX Transceiver

OUR PART #:  SKYLINE-BLIZZARD

If you like your Blizzard Lighting Pipeline™ and wished it could become wireless - your dreams have come true.
Learn More
Our Price: $299.99
List Price: $449.99
You save 33%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blizzard Lighting SKYLINE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

If you like your Blizzard Lighting Pipeline™ and wished it could become wireless - your dreams have come true. The Skyline™ is here Not only does this splitter give you the ability to plug in up to 8 DMX-Out from one DMX-In but also the ability to have Blizzard's Skywire™ fixtures in the mix as well. With so many entertainers using multiple LED fixtures and video mapping there are many occasions that will require the user to need many output to make fixture placement on their lighting rig easier. It’s important to have fast DMX response and proper DMX cabling management, and the Skyline™ will do just that. It not only provides instant response, but also a lower interference rate. The Skyline™ will allow you to increase the number of DMX outputs on your rig as well as add-in any of Blizzard's Skywire ability fixtures. It can also be used as a DMX transmitter itself and as repeater.

This rack mountable system features a transceiver (transmitter and receiver in one), giving you wireless connectivity up to 1000ft. (Line-of-Sight.)  The need for one cable connection in and out of every single fixture is in the past! The Skyline also has 2 DMX inputs and 2 DMX Thru Outs. You can have up to 16 wireless systems operate simultaneously. It also comes with 4 user-selectable transmission levels and an easy-to-read LCD display.

The Skyline also features 100% electrical isolation between input/output and 100% electrical isolation between output/output. Another factor is the Skyline's built in terminator resistor switch for completing a DMX chain properly.

Blizzard Skyline Features:

  • Transmits/receives DMX-512 wirelessly up to 1000ft (Line-of-Sight)
  • Ultra-stable 2.4ghz ISM operation
  • Up to 16 wireless systems may operate simultaneously
  • Automatic or manual channel selection
  • 4 user-selectable transmission levels
  • Easy to read LCD display
  • Extremely simple operation
  • Dual 3-pin DMX input and DMX thru
  • 8* 3-pin DMX outputs
  • 100% electrical isolation between in/output
  • 100% electronic isolation between output/output
  • Signal & power LED indicator for each output
  • Terminator resistor switch for end of a DMX chain
  • Power input via IEC connector on rear panel
  • FCC Compliant

Blizzard Skyline Specifications:

  • Dimensions (LxDxH): 19" x 7.5" x 1.875" (482 x 190.5 x 47.7 mm)
  • Weight: 6.2 Lbs. (2.8 kgs)
  • Power:
    • Operating Voltage 110-120V, 50/60Hz
  • Wireless Transceiver:
    • Operating Band 2.4Ghz ISM
    • Max Operating Range 1000 Feet (Line of Sight)
    • Frequency Groups 16
    • Max Transmission
    • Power 20dBm
    • Receiver Sensitivity -94dBm
