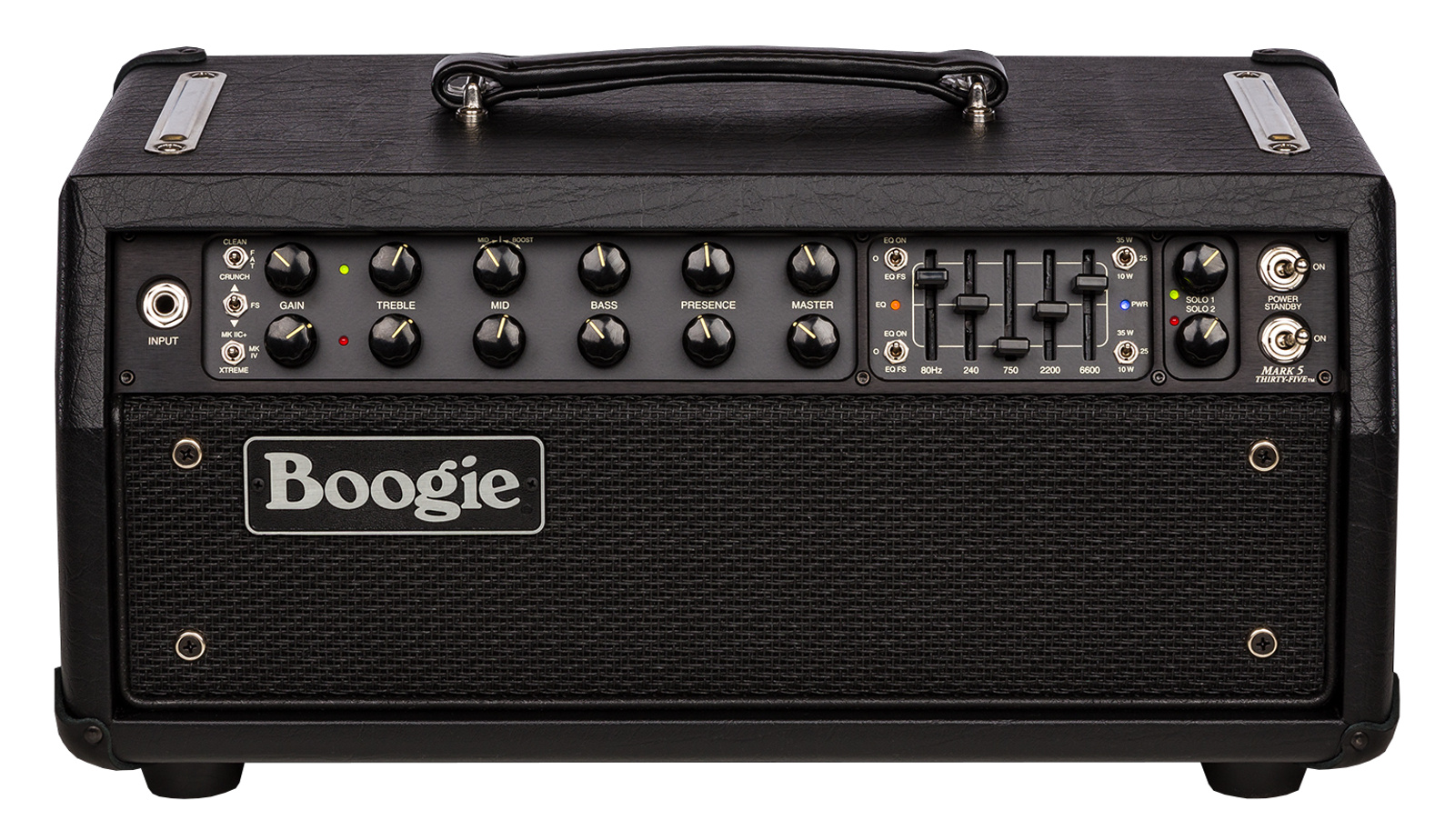

Mesa Boogie MARK-V-35-HEAD MARK FIVE: 35 Head Guitar Amplifier Head, 10/25/35W, 4xEL84 Tubes

OUR PART #: MARK-V-35-HEAD MFR #: 2.M35.BB

Copied to clipboard

Mesa Boogie's MARK FIVE: 35 builds upon the success of the MARK FIVE: 25 while adding a range of new features. ...Read more

Mesa Boogie MARK-V-35-HEAD MARK FIVE: 35 Head Guitar Amplifier Head, 10/25/35W, 4xEL84 Tubes Image 1
Mesa Boogie MARK-V-35-HEAD MARK FIVE: 35 Head Guitar Amplifier Head, 10/25/35W, 4xEL84 Tubes Image 2
Mesa Boogie MARK-V-35-HEAD MARK FIVE: 35 Head Guitar Amplifier Head, 10/25/35W, 4xEL84 Tubes
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Mesa Boogie's MARK FIVE: 35 builds upon the success of the MARK FIVE: 25 while adding a range of new features.

The Dyna-Watt™ technology within the Multi-Watt™ Channel Assignable power array offers more headroom, punch and power in 35 watts while also offering lower power options at 25 or 10 watts. Each of the 3 Power Level settings has its own sonic character and can be used to further authenticate the sound styles you are aiming at with your Mode choices and preamp settings. The power ranges and wiring styles are; 35 Watt (Dyna-Watt Power), 25 Watt (Dyna-Watt Power) and 10 Watt (Class AB Triode).

The MARK FIVE: 35 features 2 channels and 6 modes of power: Channel 1 covers the entire gain spectrum from chiming tight clean sounds, through furry, edge-of-clip, to Classic Rock CRUNCH and all the way up to burning saturated Lead sounds, while Channel 2 delivers the legendary MARK II-C+ and warmer, rounder MARK IV in all their glory and the XTREME Mode from the MARK FIVE. The MID/BOOST feature in Channel 1 provides added tone shaping to enhance gain over a broad midrange spectrum.

Mesa Boogie MARK FIVE: 35 Amp Head Features:

  • Amp Type: Tube
  • Chassis Material: Aluminum
  • Rectifier Type: Silicon Diodes
  • Rectifier Tubes: N/A
  • Variac Power Switch: N/A
  • Preamp Tubes: 6x Mesa 12AX7
  • Power Amp Tubes: 4x Mesa EL-84
  • Bias Switch for Alternate Power Tubes Types: N/A
  • Maintenance Free Fixed Bias: Yes
  • Wattage(s) Quick Reference: 10, 25 or 35 Watts - Channel Assignable
  • Built-In Power Amp Attenuation: N/A
  • Power Amp Details (Class & Wattage): Mesa'sPatented Multi-Watt™ Power Amp, featuring Dyna-Watt™ technology, providing three power levels and two wiring configurations (Pentode/Triode) via two 10/25/35 Watt Power Switches: Choose from 2 power tubes operating in Class A/B Triode for lush harmonics and a sweet, liquid feel at lower volumes, producing 10 Watts or; 2 or 4 tubes operating in Mesa's proprietary Dyna-Watt™ Class A/B Pentode for maximum power, punch and clarity, producing 25 or 35 Watts respectively.
  • Convection or Fan Cooling: Convection
  • Number of Footswitchable Channels (or Modes): Two Channels
  • Number of Style Modes: Six
  • Number of Style Modes Per Channel: Three
  • Types of Style Modes Per Channel:
    • Ch. 1 = Clean, Fat or Crunch
    • Ch. 2= Mark IIC+™, Mark IV™ or Extreme
  • Channel Controls: Each Channel features Independent 3-Position Style Mode Switch, 10/25/35 Watt Multi-Watt™ Switch, Gain, Treble, Mid/Boost* (Ch1), Mid (Ch 2), Bass, Presence, Reverb (back panel), Master, Footswitchable Channel Independent Solo and Graphic EQ Assignment Switch (On, Off or Footswitchable) - *The Mid/Boost Control on Channel 1 doubles as a standard Mid Control when set between 0 to 5 and turns into a Variable Gain Boost when set from 5 to 10
  • Graphic EQ and/or Contour: Selectable 5-Band Graphic EQ (Footswitchable, Channel Assignable or Off)
  • Reverb / Effects & Bypass Options: All-Tube, Long-Tank Spring Reverb with Independent Channel Controls
  • Effects Loop & Bypass Options: Fully Buffered Series FX Loop
  • Global Output Level Control: N/A
  • Global Solo Level Control & Bypassable Options: Footswitchable, Channel Independent Solo Controls
  • True-Bypass Options: N/A
  • Tuner Output: N/A
  • External Switching Jack Options and/or Midi: N/A
  • Speaker Outputs: One 8 Ohm and Two 4 Ohm
  • Cabinet Simulation - Direct Live/Recording Output: Built-in Mesa CabClone™ Cab Simulator with Internal Amp Load & Headphone Output -Featuring Closed Back, Open Back & Vintage Cabinet Simulations, Speaker On/Off and Ground Lift Switches
  • Headphone Output: Yes (see Cabinet Simulation for more information)
  • Slave Output: N/A

Mesa Boogie MARK FIVE: 35 Amp Head Specifications:

  • Wattage: Multi-Watt™ 10, 25 or 35 (Channel Assignable)
  • Power Tube Type: 4x Mesa EL84
  • Channels & Modes: 2 Channels / 6 Modes
  • Mode Voicings / Styles:
    • Ch. 1 = Clean, Fat or Crunch
    • Ch. 2 = Mark IIC+™, Mark IV™ or Extreme
  • Graphic EQ / Reverb / FX / Solo: Graphic EQ, Reverb, FX Loop & Ch. Independent Solo
  • Footswitchable Functions: Ch. 1/2, EQ, Solo Ch 1& Solo Ch 2
  • Speaker(s) & Impedance: N/A
  • Weight: 27 lbs
  • Dimensions (HxWxD): 9-1/8" x 18-7/8" x 10-7/8"
