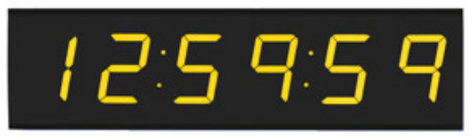

ESE ES-943U-AMBER Time Code Remote Display in Amber

The ES-943U-Amber is a 6-digit Time Code display featuring 4.0" bright LED displays - with this model using AMBER LED displays. The unit is housed in a black-textured aluminum wall-mount enclosure (7" H x 26" W x 3.5" D) and has a viewing distance of approximately 120-feet. The unit accepts, via the rear-mounted terminal block, either ESE Time Code™ (TC76™, TC89™, or TC90™), SMPTE/EBU Time Code (Time of Day only) or RS-232C ASCII Time Code(format "0", "1" or "A" at 9600 baud). The ES-943U-Amber will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time Code™ from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).

ESE ES-943U-Amber Features:

• Wall Mount Display
• Reads SMPTE/EBU, ASCII & ESE Time Code™
• Automatic Code Detection
• Six 4.0" Red LED Displays
• Viewing Distance 120'
• Switchable Between 12 & 24 Hour Format Display
• Switchable to Date display
• Optional Time Zone Offset
• NTP Option Available
• UL & 220-240 VAC options available (110-120 VAC is standard)
