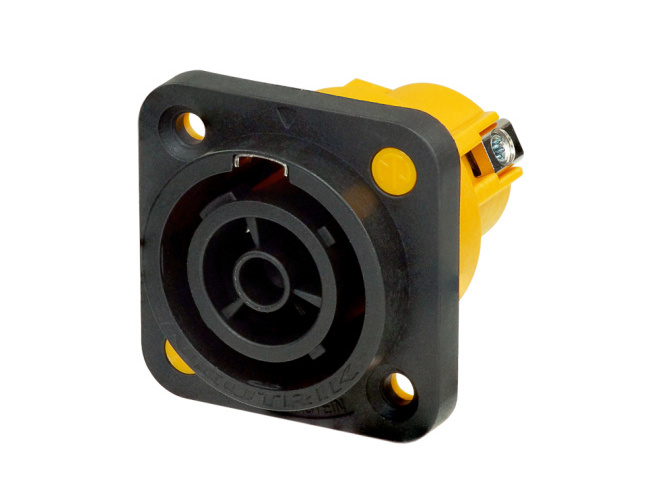

Neutrik NAC3FPX-ST Powercon True1 Appliance Outlet Connector with Screw Terminals

Neutrik's NAC3FPX-ST powercon TRUE1 is a locking 20 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powercon TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features

• Appliance outlet
• True mains connector with breaking capacity (CBC)
• Lockable 20 A single phase connector
• Easy and reliable twist lock system
• Extremely robust and reliable
• ENEC certified according to IEC 60320
• UL recognized components
• IP65 ingress protection in mated condition andunmated in combination with SCNAC-FPX (sold separately)

Specifications

• Electrical Specifications:
  • Contact resistance: = 3 mOhm (inner)
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 0.1 GOhm (after damp heat test)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 16 A rms (USA: 20 A)
  • Rated voltage: 250 V ac
• Mechanical Specifications:
  • Lifetime: > 5000 mating cycles
  • Wiresize: 2.5 mm²
  • Wiresize: 14 AWG
  • Wiring: Screw terminals
• Environmental Specifications:
  • Flammability: UL 94 V-0
  • Protection class: IP 20 (mated)
  • Temperature range: - 30 °C - +80 °C
