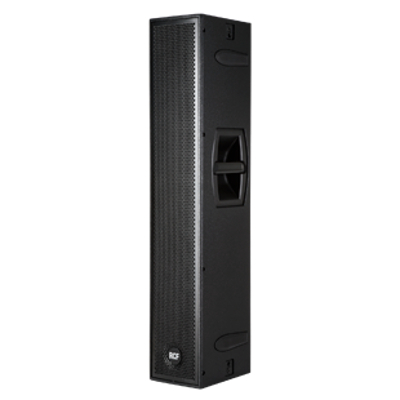

RCF NX L24-A
Active Two-Way Array System

OUR PART #  NX-L24A

Our Price: $2,399.00
List Price: $2,999.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The RCF The NXL 24-A is an active column speaker array system composed by 4 x 6” high power woofers and a 2.5” voice coil compression driver loaded from a waveguide on a 100° x 30° constant directivity horn. The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalisation, phase alignment, soft limiting and speaker protections. Equalisations are available to operate with a single column or in pairs.

The NX L24-A is a true active and high power ready to use two-way array system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the space requirement is reduced to the minimum.

RCF NX L24-A Features:

  • 1400 Watt
  • 131 dB max SPL
  • 65 Hz 20 kHz frequency response
  • (4) 6" Woofers
  • 2.5" voice coil RCF Precision C. Driver on waveguide
  • 100° x 30° slightly tilted pattern control
  • DSP controlled Input section with single or dual eq. preset
  • Pole mountable, Stackable, Flyable
  • Baltic Birch Plywood enclosure with internal structural metal bracings

RCF NX L24-A Specifications:

  • Acoustical Specifications
    • Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
    • Max SPL: 131 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 30°
    • Compression Driver: 1.4", 2.5" v.c.
    • Woofer: 4 x 6", 1.5" v.c.
    • Input/Output Section
    • Input connectors: Jack- XLR male
    • Output connectors: XLR female
    • Input sensitivity: -2 dBu / + 4 dBu
  • Processor Section
    • Crossover frequencies: 800 Hz
    • Protections: thermal, rms
    • Limiter: soft limiter
    • Controls: Volume, EQ Shape, Mic/ Line
  • Amplifier Specifications
    • Total power: 1400 W PEAK
    • High frequencies: 400 W PEAK
    • Low frequencies: 1000 W PEAK
    • Total power: 700 W RMS
    • High frequencies: 200 W RMS
    • Low frequencies: 500 W RMS
    • Cooling: convection
    • Connections: Powercon in-out
  • Cabinet
    • Cabinet Material: baltic birch plywood
    • Hardware: 4 x M8, 4 x quick lock
    • Handles: 2 side
    • Pole Mount/Cap: yes
    • Colour: black
  • Physical Specifications
    • Dimensions (H x W x D):  1056 x  201 x 274 mm (41.58 x 7.90 x 10.79 in)
    • Net Weight: 26.4 kg (58.8 lbs)
Pole Mount Kit for Stacking 2x NXL24 RCF AC-STACKING-NXL24 Pole Mount Kit for Stacking 2x NXL24

The RCF AC-STACKING-NXL24 is a pole mount kit for stacking 2x NXL24.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$229.00List Price: $319.00You save 28%!

Linking Kit for NX L24-A Line Array Speaker SystemRCF FLY LINK KIT NX L24-A Linking Kit for NX L24-A Line Array Speaker System

The RCF FLY LINK KIT NX L24-A is a linking accessory kit to link a second NX L24 to a flying NX L24-A (straight or 2 angles).

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$265.00List Price: $306.00You save 13%!

Pole Mount Kit for NX L24-A Line Array Speaker SystemRCF POLE MOUNT KIT NX L24-A Pole Mount Kit for NX L24-A Line Array Speaker System

The RCF POLE MOUNT KIT NX L24-A is a pole mount accessory kit for stacking one NX L24-A on to a SUB 8004-AS subwoofer or M20 pole mount.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$169.00List Price: $249.00You save 32%!

RCF NX L24-A
Active Two-Way Array System

OUR PART #  NX-L24A

Product Information:

The RCF The NXL 24-A is an active column speaker array system composed by 4 x 6” high power woofers and a 2.5” voice coil compression driver loaded from a waveguide on a 100° x 30° constant directivity horn. The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalisation, phase alignment, soft limiting and speaker protections. Equalisations are available to operate with a single column or in pairs.

The NX L24-A is a true active and high power ready to use two-way array system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the space requirement is reduced to the minimum.

RCF NX L24-A Features:

  • 1400 Watt
  • 131 dB max SPL
  • 65 Hz 20 kHz frequency response
  • (4) 6" Woofers
  • 2.5" voice coil RCF Precision C. Driver on waveguide
  • 100° x 30° slightly tilted pattern control
  • DSP controlled Input section with single or dual eq. preset
  • Pole mountable, Stackable, Flyable
  • Baltic Birch Plywood enclosure with internal structural metal bracings

RCF NX L24-A Specifications:

  • Acoustical Specifications
    • Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
    • Max SPL: 131 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 30°
    • Compression Driver: 1.4", 2.5" v.c.
    • Woofer: 4 x 6", 1.5" v.c.
    • Input/Output Section
    • Input connectors: Jack- XLR male
    • Output connectors: XLR female
    • Input sensitivity: -2 dBu / + 4 dBu
  • Processor Section
    • Crossover frequencies: 800 Hz
    • Protections: thermal, rms
    • Limiter: soft limiter
    • Controls: Volume, EQ Shape, Mic/ Line
  • Amplifier Specifications
    • Total power: 1400 W PEAK
    • High frequencies: 400 W PEAK
    • Low frequencies: 1000 W PEAK
    • Total power: 700 W RMS
    • High frequencies: 200 W RMS
    • Low frequencies: 500 W RMS
    • Cooling: convection
    • Connections: Powercon in-out
  • Cabinet
    • Cabinet Material: baltic birch plywood
    • Hardware: 4 x M8, 4 x quick lock
    • Handles: 2 side
    • Pole Mount/Cap: yes
    • Colour: black
  • Physical Specifications
    • Dimensions (H x W x D):  1056 x  201 x 274 mm (41.58 x 7.90 x 10.79 in)
    • Net Weight: 26.4 kg (58.8 lbs)
