Klark Teknik DN9680
8 Port AES50 Extender And Multiplexer With Up To 1000 Metre Range

OUR PART #:  DN9680

The Klark Teknik DN9680 is an 8 port AES50 extender and multiplexer with up to 1000 meter range.
Learn More
Our Price: $1,999.99
Write the first review.

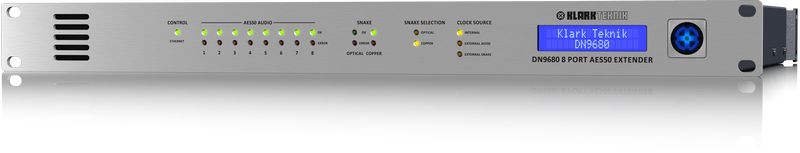

Klark Teknik DN9680
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Klark Teknik DN9680 is an 8 port AES50 extender and multiplexer with up to 1000 meter range. The DN9680 provides a high channel count solution to the 100 metre limitation that Ethernet and CAT5 cabling imposes on the physical size of AES50 networks. A pair of DN9680 units allow up to eight AES50 connections (192 bidirectional channels) to be extended by up to 1,000 metres via single mode optical fibre or 100 metres via CAT5 copper cable, greatly simplifying long haul cable connections due to the use of a single bidirectional snake cable.

DN9680 acts as a bidirectional multiplexer and demultiplexer, and combines the eight incoming AES50 streams into the outgoing snake connection, and simultaneously also takes the incoming snake connection and unbundles the eight AES50 streams and routes them to the corresponding AES50 ports. A snake system consisting of a pair of DN9680 units routes the incoming AES50 streams to the outgoing streams on a one-to-one port basis, so that the snake is transparent in use, only incurring a small propagation delay of 250 microseconds.

Klark Teknik DN9680 Features:

  • Multiplexes up to 8 AES50 connections into one optical fibre cable or CAT5 cable
  • Extends AES50 connections up to 1,000 m with optical fibre or 100 m with CAT5 cable
  • High channel capacity with 192 bidirectional channels@ 96 kHz
  • Internal "AES Grade 1" temperature-compensated wordclock (1 ppm)
  • Neutrik etherCON* connectors used for AES50 ports and copper snake connection
  • Dual-fibre Neutrik optical CON DUO* connector used for optical fibre snake connection
  • Internal web server allows browser-based configuration via Ethernet control port
  • Rugged 1U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply
  • Designed and engineered in England

Klark Teknik DN9680 Specifications:

  • AES50 Ports:
    • Type: Neutrik etherCON with LED status indication
    • Sample Rate: 96 kHz
  • Ethernet Control Port:
    • Type: Neutrik etherCON with LED status indication
  • Copper Snake Port:
    • Type: Neutrik etherCON
  • Optical Snake Port:
    • Type: Neutrik opticalCON DUO
    • Optical fibre: Single-mode dual fibre
  • Onboard Clock:
    • Type: Temperature-controlled crystal oscillator (TCXO) with 1 part-per-million (1 ppm) stability
  • Clock Source:
    • Options: Internal clock External AES50 clock External snake clock
  • Other Terminations:
    • Power: 3-pin IEC
  • Power Requirements:
    • Voltage: 100 to 240 VAC, 50 to 60 Hz
    • Consumption: < 50 W
  • Dimensions:
    • Width: 19.0" (483 mm)
    • Depth: 16.2" (412 mm)
    • Height: 1.7" (44 mm) (1U High)
  • Weight:
    • Net: 11.2 lbs (5.1 kg)
