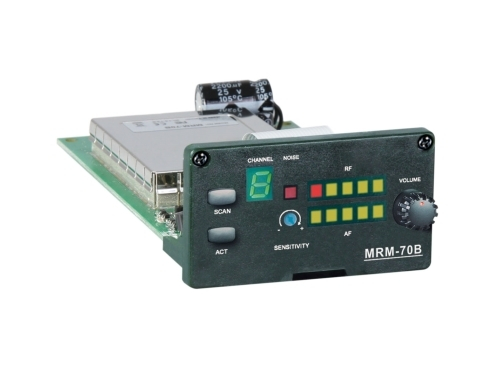

MIPRO MRM-70B
Diversity Receiver Module,UHF 16-Ch

OUR PART #:  MRM70B

The MIPRO MRM-70B is a diversity receiver module.
Learn More
Selected Model Price: $199.00
List Price: $269.00
Save up to 26%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MIPRO MRM-70B
Select model: (shipping times are approximate)
Qty:

Similar Products

The MIPRO MRM-70B is a diversity receiver module. The modular plug-and-play design allows for fast and easy installation or replacement of MIPRO MA-505, MA-705, MA-707, MA-708 and MA-808 portable PA systems. Installation or replacement takes less than a minute.

MIPRO MRM-70B Features:

  • Advanced diversity technology for optimum receptionquality.
  • Preset with 16 auto-scannable frequencies.
  • One-touch Scan for a clear, interference-freefrequency.
  • One-touch ACT™ syncs the transmitter and receiverfrequency automatically.
  • Interference warning indicator.
  • "Sensitivity" adjustor can be adjusted to miimizeinterference.
  • Easy-to-read LED channel display.
  • 5-segment RF and Audio meters.
  • Dual "PiloTone & NoiseLock" circuits minimizeinterference.
  • Modularized design allows easy installation andreplacement.
  • When installed, master level control enables volume be wirelesslycontrolled by an ACT-32HR transmitter microphone instead of a separate remote.(MA-708 and MA-808 portables)

MIPRO MRM-70B Specifications:

  • Frequency Range: UHF 480 – 934 MHz
  • Bandwidth: 24 MHz
  • Preset channels: 16
  • Channel Set-up: Scan & ACT Sync
  • Receiving Mode: CPU-controlled diversity receiving
  • Oscillation Mode: PLL Synthesized. Frequency stability ? ±0.005% (-10? – +60?)
  • Deviation: < ±40 kHz
  • Sensitivity: 10 dBµV at S/N > 80 dB
  • S/N Ratio: > 100 dBA
  • T.H.D.: < 0.5% @ 1 kHz (Dev.=32 kHz)
  • Frequency Response: 60 Hz – 15 kHz (Overall system)
  • Squelch: "PiloTone & NoiseLock" dual-squelch circuits
  • Spurious Emissions: < 82 dB
  • Audio Output: 610 mV rms
  • Power Supply: 12 – 15 V DC
  • Current Consumption: < 250 mA
  • Dimensions (W × H × D): 75 × 35 × 141 mm (3.0 × 1.4 × 5.6 ")
  • Weight: Approx. 126 g (4.4 oz)
  • Operating Temperature: -10? – +60?
