Roland JP-08
Roland Boutique Series 4-Voice Jupiter Synthesizer Module with 16-Step Sequencer

OUR PART #:  JP-08

The legendary JUPITER-8 synth is back as a limited-edition module no bigger than a book.
Learn More

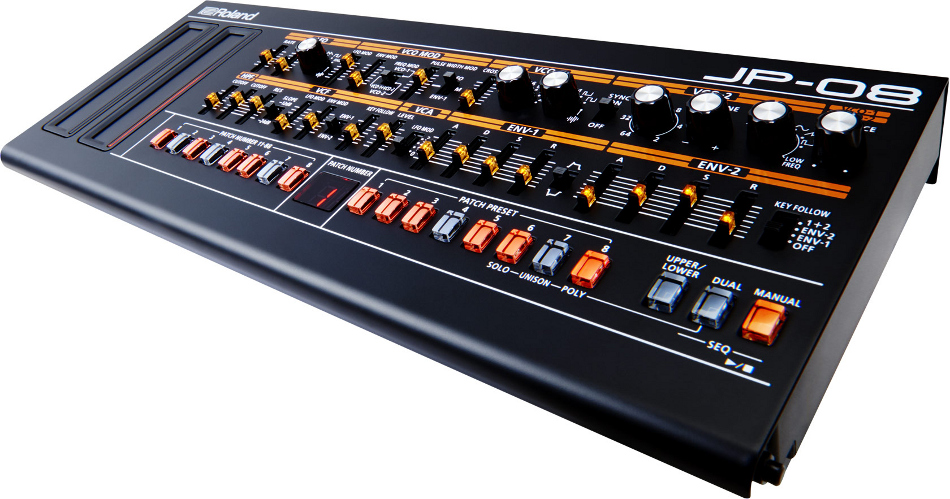

Roland JP-08 - Top Panel View
Roland JP-08 with K-25m Keyboard (sold separately)
Roland JP-08 with K-25m Keyboard (sold separately)

Click a thumbnail to see more images. (7 total)

Our Price: $299.99
List Price: $399.99
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Roland JP-08
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The legendary JUPITER-8 synth is back as a limited-edition module no bigger than a book. Part of the Roland Boutique series, the JP-08 is all about hands-on control and that iconic JUPITER sound. With an array of 36 knobs and sliders from the original JUPITER-8 front panel, the 4-voice JP-08 is highly programmable and encourages sonic experimentation, especially with the built-in speaker and battery operation. Using Roland’s acclaimed Analog Circuit Behaviour (ACB) technology the JP-08 faithfully reproduces the original JUPITER-8 sounds and adds a few new twists in the form of extra LFOs and expanded VCO range. You can even slide the JP-08 into the optional K-25m keyboard unit for a self-contained, go-anywhere synth experience.

Huge Synth, Small Package
The JUPITER-8 was a big synth in every way: physically imposing with loads of knobs and sliders, and most importantly, a huge sound. The JP-08 retains the big sound of the JUPITER-8 but shrinks everything else – including the price – into a module measuring under 12” across.

New Sound-Shaping Options
Even though the JP-08 is an authentic recreation of the JUPITER-8, we also included a few extras. The JP-08 adds several new waveforms to the original architecture, including TRI and NOISE for the LFO and SIN for VCO-1, and both VCOs have an expanded range for even more sound shaping potential.

Hands-On Control
With such an expressive sound engine, you’ll want to shape the sounds to match your mood. With 36 of the original parameters accessible from the front panel, the JP-08 is all about hands-on control, and even users of the JUPITER-8 will quickly feel at home as the user interface and programming ‘feel’ is highly reminiscent of the original.

Develop Your Ideas with a 16-Step Sequencer
The onboard 16-step sequencer is a sonic scratchpad that lets you try out new ideas without bringing lots of gear – it can even be used without a keyboard. And if there’s no keyboard connected, the ribbon controller lets you preview the sound, making it an ideal way to program patches quickly and easily.

Optional K-25m Keyboard Unit
The JP-08 works especially well with the K-25m, an optional 25-key velocity sensitive keyboard that takes your music making to the next level. Once docked in the keyboard, the module’s front panel adjusts to three positions for convenient access to the knobs and sliders.

Chain Mode
One of the killer features of the original JUPITER-8 was its ability to create huge pads, splits and layers using its 8 voices of polyphony. The JP-08 features a chain mode that allows you to connect two JP-08 modules using the MIDI ports and create one, 8-voice synthesizer, just like the original. Adding additional modules adds another 4 voices of polyphony with each module. This is especially great when controlling the JP-08 from a larger external keyboard. You can even edit the sound from the master module and control both units. Great for realtime filter sweeps and LFO effects.

Battery or USB Bus Power
Some of the best music is made away from the studio, so the Roland Boutique series runs on 4 x AA batteries, ready for when inspiration strikes. Alternatively, you can power the JP-08 via USB bus power.

USB Audio Interface for Direct Recording into Your DAW
The built-in USB port also functions as a high-quality 24bit, 44.1 kHz audio interface, for a fast, simple and reliable way of recording directly to your DAW application. You can keep your favorite patches and sequencer patterns safe too, via the USB data backup function.

Roland JP-08 Features:

  • Ultra-compact recreation of the iconic JUPITER-8 synthesizer
  • Retains the feel, sound, character and user interface of the original
  • 36 of the original synth parameters controllable from the front panel
  • Adds several additions not found on the original JUPITER-8, including extra waveforms, expanded VCO range
  • Chain mode allows two JP-08 to function as one 8-voice module
  • Highly portable for mobile music making
  • High-quality construction with metal front panel
  • Dual ribbon controllers for pitch bend, modulation, and sound preview
  • Battery-operated (4xAA) or USB powered
  • 24-bit / 44.1 kHz stereo IN/OUT USB audio interface
  • Built-in 0.5W mini-speaker for instant enjoyment
  • Compatible with optional K-25m keyboard unit

Roland JP-08 Specifications:

  • Maximum Polyphony: 4 voices
  • User Memory:
    • Patch Preset: 8
    • Patch: 64
    • VOLUME knob
    • Ribbon controllers 1, 2
    • LFO Section:
      • RATE slider
      • DELAY TIME slider
      • WAVE FORM select knob
    • VCO MOD Section:
      • LFO MOD slider
      • ENV MOD slider
      • FREQ MOD select switch
      • PULSE WIDTH MOD slider
      • PULSE WIDTH MOD select switch
    • VCO-1 Section:
      • CROSS MOD slider
      • RANGE select knob
      • WAVE FORM select knob
    • VCO-2 Section:
      • SYNC switch
      • RANGE select knob
      • FINE TUNE knob
      • WAVE FORM select knob
    • MIXER Section:
      • HPF Section: CUTOFF slider
    • VCF Section:
      • CUTOFF slider
      • RESONANCE slider
      • SLOPE switch
      • LFO MOD slider
      • ENV MOD slider
      • ENV switch
      • KEY FOLLOW slider
    • VCA Section:
      • LEVEL slider
      • LFO MOD switch
    • ENV-1 Section:
      • ATTACK TIME slider
      • DECAY TIME slider
      • SUSTAIN LEVEL slider
      • RELEASE TIME slider
      • Polarity switch
    • ENV-2 Section:
      • ATTACK TIME slider
      • DECAY TIME slider
      • SUSTAIN LEVEL slider
      • RELEASE TIME slider
      • KEY FOLLOW switch
      • PATCH NUMBER 1–8 buttons
      • PATCH PRESET 1–8 buttons
      • MANUAL button
      • UPPER/LOWER button
      • DUAL button
      • Power switch
    • Effects: Delay
    • Step Sequencer:
      • 16 step
      • 16 pattern
  • Nominal Input Level:
    • INPUT jack: -0 dBu
    • Display: 7 segments, 2 characters (LED)
  • Connectors:
    • PHONES jack: Stereo miniature phone type
    • OUTPUT jack: Stereo miniature phone type
    • INPUT jack: Stereo miniature phone type
    • MIDI (IN, OUT) connectors
    • USB port: MicroB type (Audio, MIDI)
  • Power Supply:
    • Rechargeable Ni-MH battery (AA, HR6) x 4
    • Alkaline battery (AA, LR6) x 4
    • USB Bus power
    • Current Draw: 500 mA (USB Bus power)
    • Expected battery life under continuous use: Approx. 6 hours (Rechargeable NI-MH battery)
  • Accessories: Owner's Manual; Leaflet "USING THE UNIT SAFELY"; Alkaline battery (AA, LR6) x 4
  • Options (sold separately): K-25m (keyboard unit)
    • Width: 11-13/16" (300 mm)
    • Depth: 5-1/16" (128 mm)
    • Height: 1-13/16" (46 mm)
    • Weight: 2 lbs., 3 oz. (970 g)
