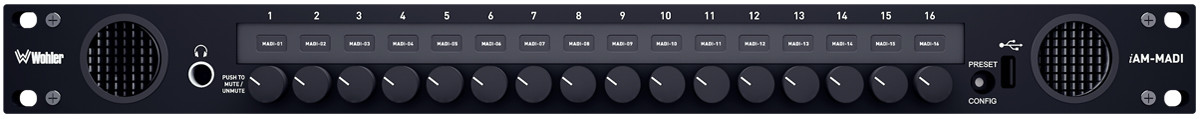

Wohler WOH-IAM-MADI-16
ADI Audio Monitor/ Mixer


Wohler has re-invented in-rack MADI monitoring and mixing with the new iAM-MADI, specifically designed for fast-paced OB and live-to-air production environments.
Learn More
Our Price: $3,977.26
List Price: $3,995.00
Write the first review.
Wohler WOH-IAM-MADI-16
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Wohler has re-invented in-rack MADI monitoring and mixing with the new iAM-MADI, specifically designed for fast-paced OB and live-to-air production environments. The iAM-MADI provides intuitive metering and monitoring of MADI audio, with instant access to 8 stored configurations of any user-defined channel groups (8 each) for easy navigation between all 64 channels in a MADI stream. The iAM-MADI comes equipped with BNC with options for multimode or singlemode fiber interfaces as standard.

In addition to its unique capabilities as a standalone MADI audio monitor and mixer, multiple units can be controlled and configured from a single PC workstation. The iAM-MADI supports fast configuration and use of multiple distributed units within a MADI network via an Ethernet connection with a free, downloadable software GUI.  An added benefit of the iAM-MADI is its ability to convert between optical and BNC. It’s the perfect solution for any application that requires a simple, compact system for monitoring MADI-delivered audio.

Wohler iAM-MADI-16 Mixer Features:

  • Fast selection and summing of multiple MADI channels
  • Accepts and converts MADI signals between optical and BNC I/O
  • Supports transmission up to 100m on coax cable
  • Supports transmission up to 2km distance with multi-mode optical fiber version
  • Supports transmission up to 20km distance with single-mode optical fiber version
  • Intuitive front panel operation
  • Channel names can be created and displayed for each input
  • Pre or Post metering options offer maximum flexibility
  • Stores and retrieves presets via USB or remote PC software control
  • Master volume, channel volume and balance with quick muting
  • Indvidual level meter for each channel
  • Built-in speakers, headphone jack, USB and Ethernet ports
  • Stereo analog outputs plus mono mix on balanced XLRs
  • Regenerated or Re-clocked optical and BNC I/O
  • Bypass relay switcher
  • Compact (4.25” deep) 1-RU chassis

Wohler iAM-MADI-16 Mixer Specifications:

  • Wohler Part Number: 8114-0050
  • Signal Inputs Accepted:
    • AES
    • MADI
  • Monitoring Outputs: Three
  • Signal Inputs:
    • Optical
    • MADI BNC
    • Ethernet
    • Four AES
  • Signal Outputs:
    • Reclocked or regenerated MADI optical
    • Reclocked or regenerated MADI BNC with switched loop through
    • Headphone (1/4” jack)
    • Three balanced analog audio outputs (left, mono mix, and right) (XLR-M)
    • AES output
  • Data Ports: Ethernet
  • Audio: Frequency Response (1/6 octave): 150 Hz to 16 kHz (± 5 dB) acoustic, 40 Hz to 20 kHz (± 1dB) electrical
  • Video:
    • # of Video Displays: 16
    • Display Characteristics: OLED
  • Rack Height: 1RU
  • Weight: 5 lbs. (2.3 kg)
  • Shipping Weight: 7 lbs. (3.2 kg)
  • Dimensions: 19” x 1.75” x 4.75” (482.6 mm x 44.5 mm x 120.7 mm)
  • Power Consumption: 60 W typical
