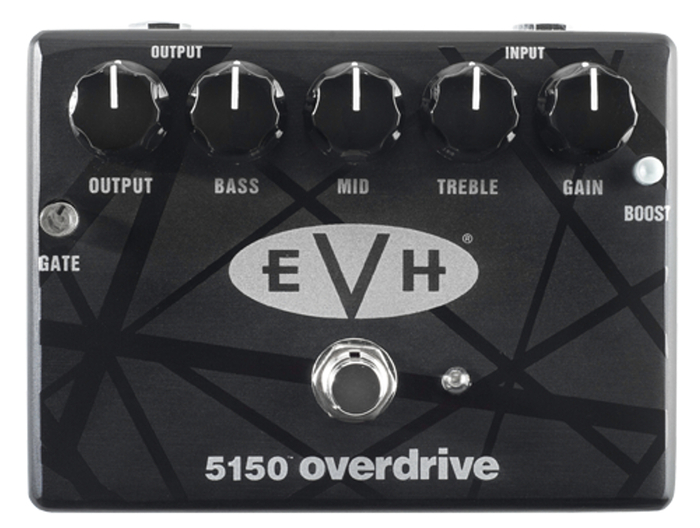

MXR Pedals EVH 5150 Overdrive
Eddie Van Halen Signature Overdrive Pedal

OUR PART #:  EVH-5150-OVERDRIVE

The EVH 5150â„¢ Overdrive is a collaboration effort with the MXR design team and Eddie Van Halen to deliver hypder-driven tones right at your feet.
Learn More
Our Price: $199.99
List Price: $285.70
You save 30%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MXR Pedals EVH 5150 Overdrive
Qty:
In Stock

Similar Products

The EVH 5150â„¢ Overdrive is a collaboration effort with the MXR design team and Eddie Van Halen to deliver hypder-driven tones right at your feet. It's hand-adjusted multi-stage MOSFETs joins a full complement of controls to deliver overdriven tube-like tones and exceptional sonic flexibility.

With Output and Gain controls to set your volume and distortion levels, and a 3-band passive tone stack EQ section to shape your sound to taste, the EVH 5150 Overdrive is an all-around useful tool whether you're in the studio or on stage.

MXR Pedals EVH 5150 Overdrive Specifications:

  • Nominal Output Level: -22 dBV
  • Maximum Output Level: 0 dBV
  • Noise Floor:
    • Gate Open: -76 dBV
    • Gate Closed: -93 dBV
  • Controls
    • Boost: Preamp Gain, +6 dB
    • Bass: ±5 dB, 30 Hz
    • Mid: ± dB, 650 Hz
    • Treble: ±5 dB, 10 kHz
  • Bypass: True Hardwire
  • Current Draw:
    • Bypassed: 12.5 mA
    • Effect on, Gate Engaged: 14.5 mA
  • Power Supply: DC 9 V
