Liberty AV Solutions 22-2C-SH-GRY
22 AWG Single-Pair Audio Riser Rated Cable

OUR PART #:  22-2C-SH-GRY

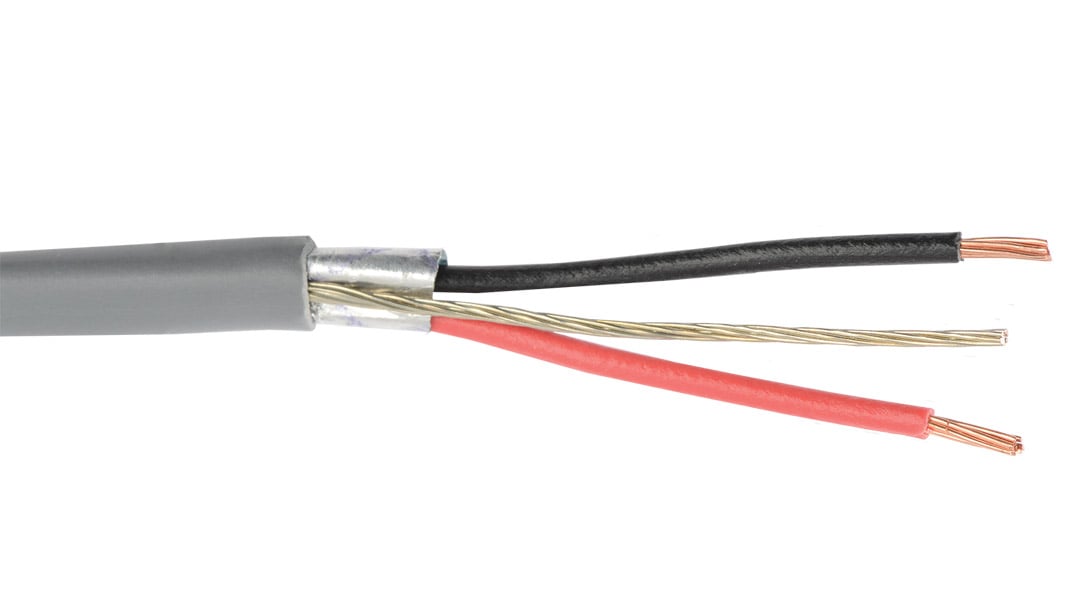

The Liberty AV Solutions 22-2C-SH-GRY is a 1000 ft reel of 22 AWG single-pair audio and control shielded riser rated cable with an overall grey jacket.
Learn More
Our Price: $167.40
List Price: $186.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions 22-2C-SH-GRY
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Liberty AV Solutions 22-2C-SH-GRY is a 1000 ft reel of 22 AWG single-pair audio and control shielded riser rated cable with an overall grey jacket. This cable is designed for applications such as instrumentation and control, balanced and unbalanced audio formats and infrared (IR), RS-232C signaling.

Liberty AV Solutions 22-SC-SH-GRY Features:

  • 7-strand annealed bare copper conductors
  • Semi-rigid PVC insulation
  • Twisted, shielded
  • Riser rated PVC jacket
  • UL 444, UL 13 CMR rated for the US and Canada
  • 1000 foot spool

Liberty AV Solutions 22-SC-SH-GRY Specifications:

  • Conductor:
    • 22 AWG
    • 7-strand annealed bare copper conductors
    • Diameter:  0.029" (0.73mm)
  • Electrical:
    • DC Resistance:  16.4 Ohms / 1000 ft
    • Mutual Capacitance:  39.7 pF/FT
    • Impedance:  47 Ohms
    • Velocity of Propagation:  55%
    • Voltage Rating:  300V
    • Maximum Current:  2.8A @ 25°C
  • Insulation:
    • Semi-rigid polyvinyl chloride
    • Wall Thickness:  0.008" (0.20mm)
    • Diameter:  0.045" (1.14mm)
  • Regulatory:
    • NEC:  CMR 75°C
    • CEC:  CMG FT4 60°C
    • EU RoHS-2 2011/65/EU Compliant
