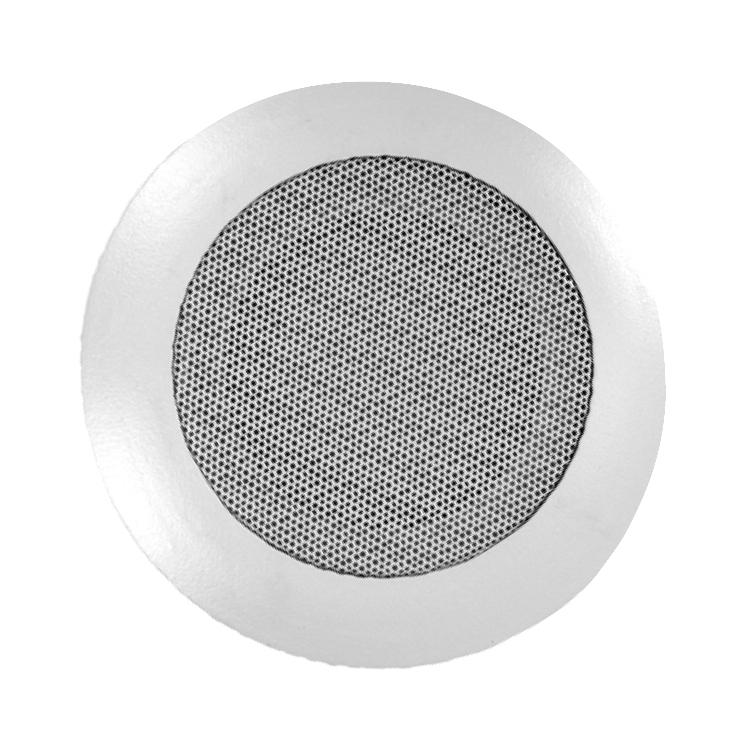

Lowell CN-4
4" Grille, White

OUR PART #:  CN-4

The Lowell CN-4  Torsion grille presents a clean appearance with a contoured edge for specifications requiring ceiling speakers to be void of visible mounting hardware.
Learn More
Sale Price: $21.58
List Price: $41.99
You save 49%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell CN-4
Qty:
Similar Products

The Lowell CN-4  Torsion grille presents a clean appearance with a contoured edge for specifications requiring ceiling speakers to be void of visible mounting hardware. The grille utilizes welded speaker studs and torsion brackets with springs to mount into torsion receptacles that
are welded into specified Lowell backboxes (order separately). The grille is ideal for 4” speaker installations in offices, hotels, airports,
restaurants and similar venues. The outer ring is precision formed from 20-gauge steel with a welded steel mesh center, inner ring
with speaker studs, and white powder epoxy finish for a long lasting quality appearance. Four welded studs (8-32 x 3/4”) are spaced
to mount a standard 4” (EIA 5”) driver using palnuts provided. The grille includes two torsion bracket/spring devices that allow the
speaker/grille assembly to mount into a torsion receptacle in specified Lowell backboxes. Each torsion bracket installs to opposite
speaker mounting studs with 8-32 nuts (provided). Each torsion spring installs to one of four holes in bracket with a shoulder bolt
and clip (provided). Versatile spring position on bracket allows easy depth adjustment. Torsion assemblies are typically installed before
the driver and will support a driver/transformer assembly weight up to 3.5 lbs.

Lowell CN-4 Features:

  • 20-gauge steel
  • 7.625” diameter
  • Mounting provisions: 4 studs, 2 torsion devices
  • White powder epoxy finish
  • Made in the U.S.A. with certified U.S. steel
Rails SS Speaker Ch PR 30L
Lowell SS30 Rails SS Speaker Ch PR 30L
30" channel rail pair, made of 16 gauge galvanized steel. Includes four 8-32 x ½" phillips truss-head machine screws & hex nuts.
15.61 16.62 6
In Stock
1 Pair of 23.75" Channel Support Rails (for Ceiling Speaker Mounting)
Lowell SS24 1 Pair of 23.75" Channel Support Rails (for Ceiling Speaker Mounting)
Lowell's SS Series channel rails are engineered to distribute the speaker assembly weight to the ceiling support system in a suspended 2 ft. x 2 ft. or 2 ft. x 4 ft. tile ceiling system.  Rails are often ...
8.12 8.64 6
In Stock
Acoustical Backbox for 4" Speakers
Lowell DX104 Acoustical Backbox for 4" Speakers
Lowell's DX104 backbox for 4-inch speakers is acoustically engineered for professional sound installations where the highest quality sound reproduction and fidelity must be attained. It is an acoustically treated large volume design ...
33.18 47.04 29
