QSC AC-S6T
AcousticCoverage Series, Surface Speaker, 6", Black, Sold In Pairs

OUR PART #  AC-S6T-BK

Our Price: $130.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

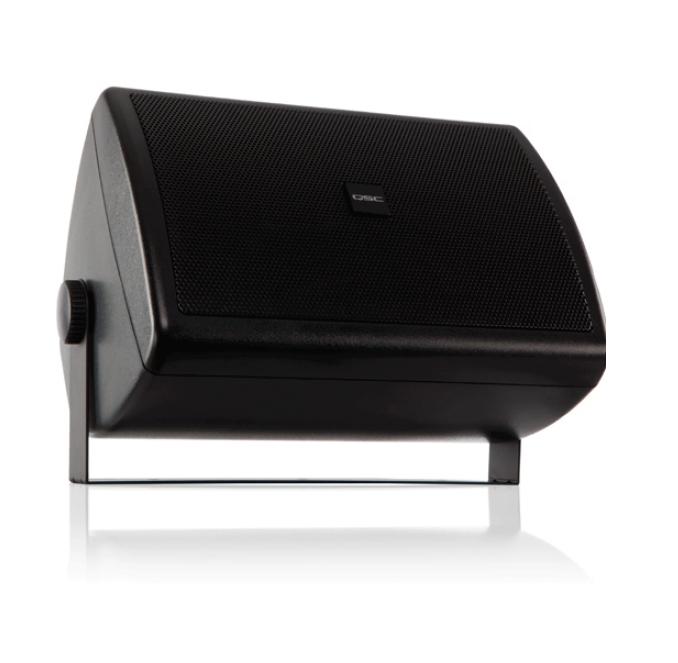

The QSC AcousticCoverage™ AC-S6T is a surface mounted 6.5” two-way loudspeaker with 70/100V transformer, suitable for a wide variety of voice paging and background music sound reinforcement applications.

Note: These speakers are priced individually but sold in pairs. For more information please contact your Full Compass Sales Pro.

A high quality 165 mm [6.5 in] polypropylene cone transducer with butyl rubber surround and a 25 mm [1 in] aluminium dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibility. With 130 degrees of conical coverage, the AC-S6T reduces the number of loudspeakers required for even coverage in close proximity.

The UV treated high impact ABS enclosure and ported baffle assembly has been optimally tuned for added musicality, creating low frequency extension down to 60 Hz. To maintain this frequency response, the AC-S6T utilizes a 30-watt low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8 Ohm bypass.

The AC-S6T features brass inserts to accept the included yoke mount and is secured using the supplied thumb bolts. The grille is adorned with a spring loaded and rotatable logo for installation convenience in either horizontal or vertical deployments.

QSC AC-S6T Specifications:

  • Effective frequency range: 60 Hz – 20 kHz
  • Rated noise power / voltage: 30 watts / 15.5 volts
  • Broad-band sensitivity: 86 dB SPL
  • Coverage angle (-6 dB): 130° conical (500 Hz - 5 kHz)
  • Directivity factor (Q): 6
  • Directivity Index: 8 dB
  • Ingress protection: IP-44
  • Operating environment: Designed for indoor use
  • Operating Temperature Range: -20 to 50° C [-4 to 122°F]
  • Net weight: 3.8 kg [8.3 lb]
  • Product dimensions: 303 x 215 x 197 mm [11.9 x 8.5 x7.8 in]
  • Shipping weight: 8.4 kg [18.6 lb] (pair packed)

QSC AC-S6T
AcousticCoverage Series, Surface Speaker, 6", Black, Sold In Pairs

OUR PART #  AC-S6T-BK

Product Information:

The QSC AcousticCoverage™ AC-S6T is a surface mounted 6.5” two-way loudspeaker with 70/100V transformer, suitable for a wide variety of voice paging and background music sound reinforcement applications.

Note: These speakers are priced individually but sold in pairs. For more information please contact your Full Compass Sales Pro.

A high quality 165 mm [6.5 in] polypropylene cone transducer with butyl rubber surround and a 25 mm [1 in] aluminium dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibility. With 130 degrees of conical coverage, the AC-S6T reduces the number of loudspeakers required for even coverage in close proximity.

The UV treated high impact ABS enclosure and ported baffle assembly has been optimally tuned for added musicality, creating low frequency extension down to 60 Hz. To maintain this frequency response, the AC-S6T utilizes a 30-watt low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8 Ohm bypass.

The AC-S6T features brass inserts to accept the included yoke mount and is secured using the supplied thumb bolts. The grille is adorned with a spring loaded and rotatable logo for installation convenience in either horizontal or vertical deployments.

QSC AC-S6T Specifications:

  • Effective frequency range: 60 Hz – 20 kHz
  • Rated noise power / voltage: 30 watts / 15.5 volts
  • Broad-band sensitivity: 86 dB SPL
  • Coverage angle (-6 dB): 130° conical (500 Hz - 5 kHz)
  • Directivity factor (Q): 6
  • Directivity Index: 8 dB
  • Ingress protection: IP-44
  • Operating environment: Designed for indoor use
  • Operating Temperature Range: -20 to 50° C [-4 to 122°F]
  • Net weight: 3.8 kg [8.3 lb]
  • Product dimensions: 303 x 215 x 197 mm [11.9 x 8.5 x7.8 in]
  • Shipping weight: 8.4 kg [18.6 lb] (pair packed)
