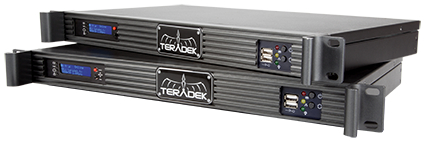

Teradek H.264 Encoder
HD-SDI Rackmount


Our Price: $2,990.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Slice is a rack mount HD-SDI high profile H.264 encoder and decoder solution for mission critical enterprise applications. Slice enables video professionals to broadcast low latency high definition 1080p video for IPTV, streaming servers, OTT content, set-top boxes, and recorders at an unprecedented price.

Slice encoders output a variety of stream types, including MPEG Transport Stream, RTMP, RTSP, and RTP Multicast. When broadcasting over Ethernet, Slice can utilize the powerful Zixi protocol, which ensures pristine HD quality video over challenging network environments.

Slice supports all standard resolutions up to 1080p at 10mbps. With the addition of a Sputnik server, Slice can utilize IFB communication and remote monitoring features that give broadcasters full control over their IP video deployments. Moreover, Sputnik allows Slice encoders to tunnel through firewalls, which means opening ports is a thing of the past.

Teradek Slice Rack Mount Encoder Specifications:

  • Video Inputs:
    • HD-SDI
    • SD-SDI: BNCs
  • Looping Video Outputs:
    • HD-SDI
    • SD-SDI: BNC
  • Supported Resolutions:
    • 1080i 50/59.94/60
    • 1080p 23.98/24/25/30
    • 1080PsF 23.98/24/25
    • 720p 50/59.94/60
    • 576i
    • 480i
  • Video Codec:
    • Compression Algorithm: Baseline, Main and High Profile H.264
    • Main and Baseline profiles
    • Bit Rate: 250 Kbps to 10 Mbps
    • Built in Video Scaler and Deinterlacer
  • Video Streaming Support:
    • Network Protocols:
      • TCP/IP
      • UDP
      • HTTP
      • DHCP
      • NTP
      • SSL
      • IGMP
    • Transport Protocols:
      • Zixi
      • RTP
      • RTSP
      • RTP over HTTP
      • MPEG-TS
    • RTMP (Adobe Flash Streaming)
    • HTTP Live Streaming
    • Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
  • Audio:
    • Audio Compression:
      • AAC-LC
      • MPEG Layer 2
    • Embedded Audio Input
    • Analog Line or Mic in, adjustable gain
    • Headphone output, adjustable volume
  • Physical:
    • Dimensions: 1U rack mount
    • Weight: 9lbs (144oz)
  • Interfaces:
    • Feature-rich WebUI for configuration and control
    • OLED LCD Display with joystick Navigation buttons
    • On/Off and Reset Switch
  • Network:
    • Ethernet: 10/100BASE-T
    • WiFi: Dual Band 802.11 a/b/g/n MiMO
  • Power:
    • 110/240V AC Power input
    • Nominal Power Consumption: 5W + 2.5W (max) per USB device
