Kramer WP-580T
HDMI over HDBaseT Twisted Pair Wall Plate Transmitter

OUR PART #:  WP-580T

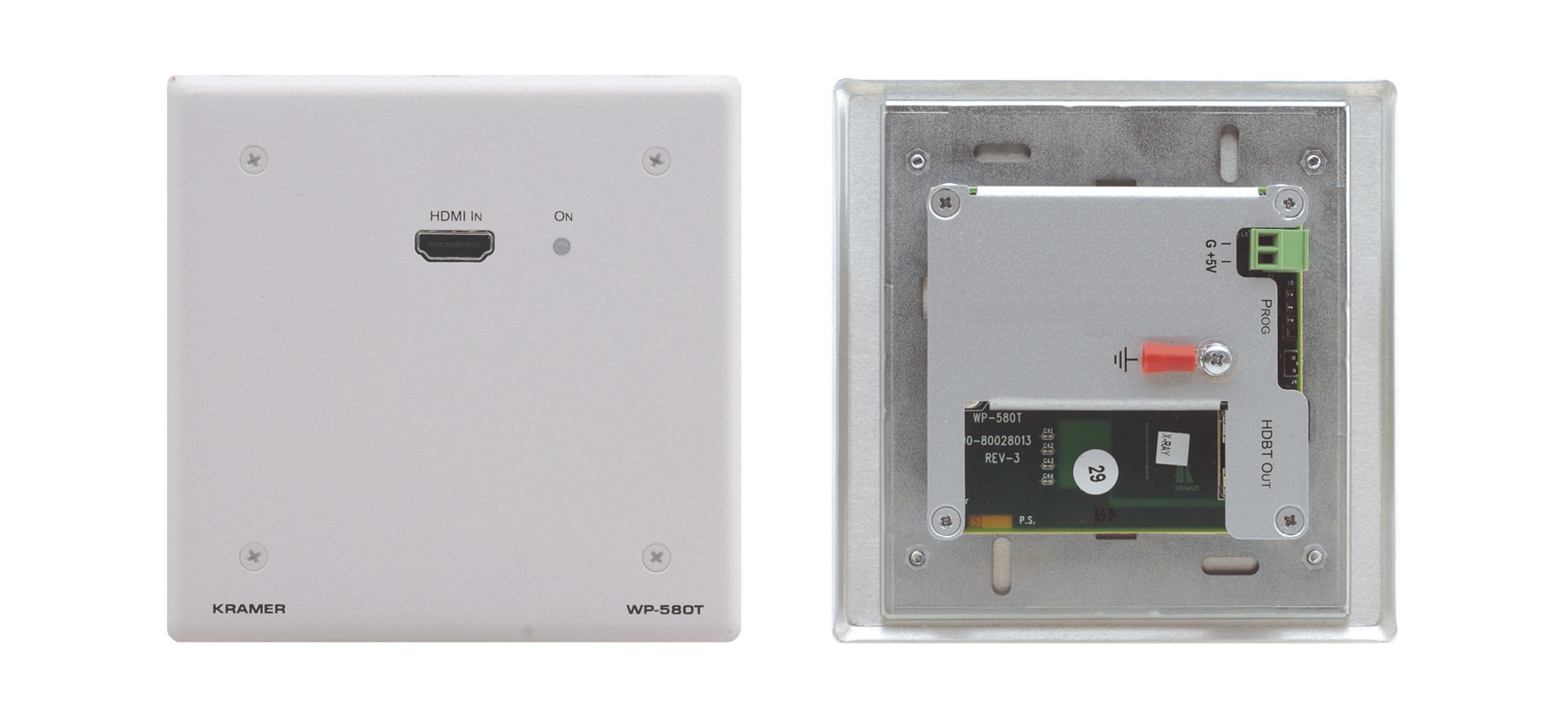

Kramer's WP-580T is a high-performance, HDBaseT twisted pair wall plate transmitter for HDMI signals.
Learn More
Our Price: $232.00
List Price: $290.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer WP-580T
Qty:
In Stock

Similar Products

Kramer's WP-580T is a high-performance, HDBaseT twisted pair wall plate transmitter for HDMI signals. The WP-580T inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP-580R receiver.

Kramer WP-580T Features:

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliance.
  • HDBaseT™ Technology.
  • HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
  • 3D Pass-Through.
  • EDID PassThru - Passes EDID signals between the source and display.
  • 2K & 4K Support.
  • System Range - Up to 70m (230ft).
  • Cable - For optimum range and performance using HDBaseT™, use Kramer's BC-HD Kat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
  • Indicators - Status LEDs for input, output, link and power.

Kramer WP-580T Specifications:

  • Inputs: 1 HDMI connector.
  • Outputs: 1 HDBaseT twisted pair RJ-45 connector.
  • Bandwidth: 10.2Gbps (3.4Gbps per graphic channel).
  • RS-232 Baud Rate: 115200.
  • Compliance With HDMI Standard: Supports HDMI and HDCP.
  • Power Consumption: 5V DC, 360mA.
  • Dimensions: 12.4cm x 3.12cm x 7.9cm (4.88"x  1.29"  x 3.12")
  • Weight: 0.6kg (1.4lbs).
  • Included Accessories: Power supply.
