Community CS8-B [RESTOCK ITEM]

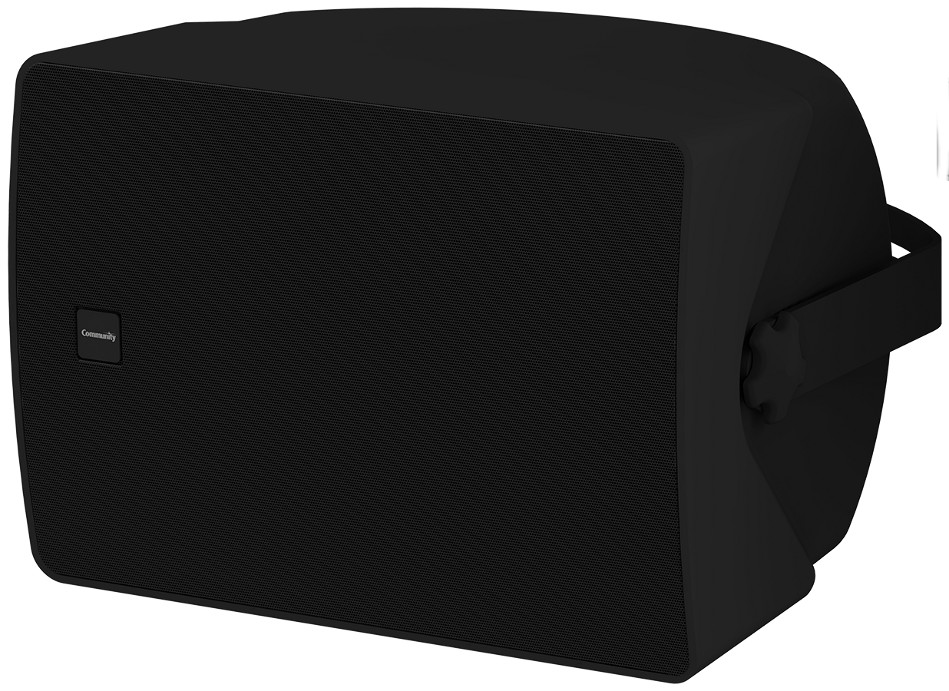

Commercial Design 8" 2-Way 60 Watt Full-Range Surface Mount Loudspeaker in Black

OUR PART #:  CS8-B-RST-01

A full-range, compact, 2-way speaker system...
Learn More
Sale Price: $100.00
List Price: $232.00
You save 57%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community CS8-B [RESTOCK ITEM]
Qty:
In Stock
Similar Products

A full-range, compact, 2-way speaker system, Community's CS8-B Commercial Design Series black surface mount loudspeaker is great for installations where space is a at premium. Easily outperforming larger size loudspeakers, the CS8-B offers high power handling, high sensitivity, and accurate sound reproduction. Its clean, simple architectural appearance will aesthetically fit in well in many environments, and combined with weather-resistance suitable for outdoor use, it can be employed for a wide range of speech and music uses. It comes equipped with an onboard autoformer allowing for large numbers of distributed loudspeakers to be powered from a 70V or 100V amplifier output, plus a convenient front-accessible power tap switch hidden behind a rotatable logo. The included multi-angle pan and tilt wall-mount yoke makes installation is simple and versatile, and provides for low profile mounting and precise positioning of the enclosure in either horizontal or vertical orientation.

This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Community CS8-B Features:

  • Clean and simple architectural design
  • Same components and voicing as the Commercial Design ceiling loudspeaker family
  • High efficiency, high output, high intelligibility, low distortion
  • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
  • Front-accessible power tap switch for selectable 8 Ohm or 70V/100V operation
  • Low profile pan-tilt mounting yoke included
  • Horizontal or vertical mounting orientation
  • Weather-resistant construction with treated drivers, 2-layer powder coated grilles and protected wiring ingress
  • Available in standard black or white finishes

Community CS8-B Specifications:

  • Loudspeaker Type:  Two-way, full-range, coaxial surface mount loudspeaker, 8 Ohm or 70V/100V operation
  • Operating Range:  45 Hz - 13.5 kHz (-10 dB)
  • Frequency Response:  70 Hz - 12.5 kHz (-3 dB)
  • Max Input Ratings (8 Ohm):  60W continuous, 150W program; 22 volts RMS, 43.8 volts momentary peak
  • Transformer Taps:
    • 70V:  30W, 15W, 7.5W, 3.75W, and 8 ohm selectable
    • 100V:  30W, 15W, 7.5W, and 8 ohm selectable
  • Sensitivity (1W/1m):  89 dB SPL (70 Hz to 12.5kHz 1/3 octave bands); 90 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output:  107 dB SPL / 113 dB SPL (peak 8 Ohm)
  • Nominal Impedance:  8 Ohms
  • Minimum Impedance:  6.5 Ohms @ 10 kHz
  • Nominal Coverage:  110º conical (+50° / -50°, 1kHz to 6 kHz)
  • Axial Q / DI:  5.5 / 7.4, 500 Hz to 6 kHz
  • Crossover Frequency:  2 kHz
  • Recommended Signal Processing:  60 Hz, 24 dB/Oct high-pass filter
  • Drivers:  LF 1x 8" cone; HF 1x 3/4" exit compression driver
  • Driver Protection:  Self-resetting solid-state circuit breaker
  • Input Connection:  4-pole Euroblock connector with two pair of non-interrupt parallel connections
  • Controls:  Front-accessible wattage / low impedance selector switch hidden behind the rotatable logo
  • Enclosure:  ABS plastic, matte finish, paintable
  • Finish:  Black
  • Mounting/Rigging Provisions:  Low profile, multi-angle, pan-tilt mounting yoke
  • Grille:  Dual-layer powder coated steel, black finish
  • Safety Features:  Built-in safety cable attachment eyebolt
  • Environmental:  IP55 rated loudspeakers, IP56-rated connector cover, designed to Mil Spec 810
  • Required Accessories:  Electronic high-pass filter
  • Supplied Accessories:  Low profile, pan-tilt mounting yoke; flat-head screwdriver
  • Optional Accessories:  M8 x 15.5mm Blind Insert for 3rd party accessory attachment
  • Dimensions: 9.73" H x 13.8" W x 12.4" D (247 x 351 x 315mm)
  • Weight (without bracket):  8.8 lbs (4.0 kg)
  • Weight (with bracket):  11.1 lbs (5.0 kg)
