Product Overview

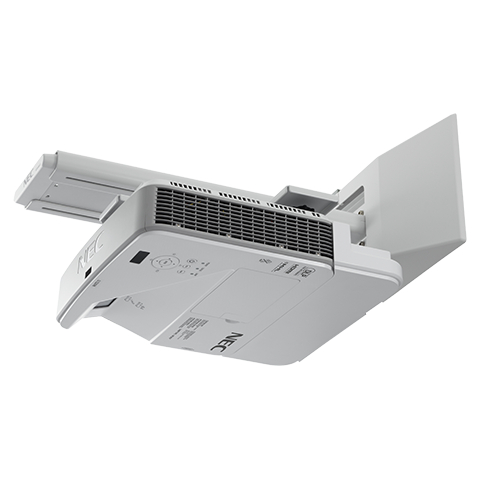

The NEC NP-U321H-WK interactive projector brings collaboration to both classrooms and conference rooms alike. Together with a Windows or Mac computer, this teaching tool will increase students' attention and interaction within the classroom, increasing their retention of subject matter. This bundle includes the 3200-lumen U321H ultra-short throw projector and the NP04WK1 wall mount kit. The UN321H-WK delivers an extremely short throw distance, and is even able to me mounted on the wall directly above the screen using the NP04WK1. Feautres of the projector include a powerful 8 watt speaker, closed captioning, RJ-45, and dual HDMI and VGA connectors.
NEC NP-U321H-WK Features:
- Interactive system utilizing dual pens and autocalibration converts a standard whiteboard into a complete interactive surface for annotation and collaboration. Ultra-short throw lens (0.25:1 throw ratio) eliminates shadows on the screen along with projected light in the presenter's eyes created by traditional front projection systems.
- Comprehensive input/output panel, including dual HDMI and VGA inputs
- ECO Mode™ technology helps extend lamp life and lowers power consumption
- Vertical Keystone adjustment helps ensure the image will fill the screen every time
- Remote monitoring and control of projector over network saves IT employee time and reduces costs related to projector operation
NEC NP-U321H-WK Specifications:
- Optical:
- Display Technology: DLP (0.65" DMD)
- Light Output (Lumens): 3200
- Resolution:
- Native: 1080p (1920 x 1080)
- Maximum: 1080p (1920 x 1080)
- Contrast Ratio (up to): 10,000:1
- Lamp Type: 260W AC
- Lamp Life (up to): 3000 hours nomal / 4000 hours eco
- Screen Size (diagonal): 85" to 100" (2159 to 2540 mm)
- Throw Ratio: 0.25 to 1
- Projection Distance: 1.47 ft to 1.83 ft (0.474 to 0.558 m)
- Projector Angle: 57.0°
- Lens:
- Zoom: 1
- Focus: Manual
- F number, fnumber: F = 2.4, f = 3.72 mm
- Keystone Correction: ±5° vertical
- Signal Compatibility/Connectivity:
- Synchronization Range:
- Horizontal (Analog/Digital): 15 - 100 kHz
- Vertical (Analog/Digital): 50 - 120 Hz
- Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
- SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- PC Signal Compatibility: VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
- Macintosh Compatibility: Yes
- Input/Output Terminals:
- RGB1 (Analog): VGA, 15-pin D-sub, Component video using ADP-CV 1E adapter
- RGB2 (Digital): HDMI/HML with HDCP
- RG3 (Digital): HDMI with HDCP
- Video 1: RCA
- Audio 1: L/R RCA (shared by video sources)
- Audio 2: L/R RCA (shared by video sources)
- Monitor Out: VGA 15-pin D-sub
- Audio Out: VGA 15-pin D-sub
- Microphone: 1/8" Stereo
- Audio: 8W Speaker
- External Control: RS-232 IR, Wired LAN, DDC/DI, USB
- Sync Compatibility: Separate Sync / Composite Sync / Sync on G
- Networking: RJ-45 Monitoring
- Electrical:
- Power Requirements: 100 - 240 V AC, 50/60 Hz
- Input Current: 3.5A/1.65A
- Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 323W / 272W / 3W / 0.18W
- Mechanical:
- Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
- Dimensions: 15.0" W x 12.3" D x 4.3" H (382 x 312 x 108 mm)
- Weight: 10.4 lbs (4.7 kg)
- Fan Noise: 34 dB nomral / 29 dB eco
- Regulations: USA UL (UL60950-1/IEC60825) FCC Part 15 Class B, C-UL (CSA60950-1/IEC60825) ICES-003 Class B
- Environmental:
- Operating Temperature: 41°F to 104°F (5°C to 40°C)
- Humidity: 20 - 80% non-condensing
- Storage: -4°F to 140°F (-20°C to 60°C)
- Included Accessories: Remote control, Batteries, RGB cable, User's Manual, Product Registration Card
- Limited Warranty: 2 years. Lamp warranty is 1 year or 500 hours, whichever comes first.
