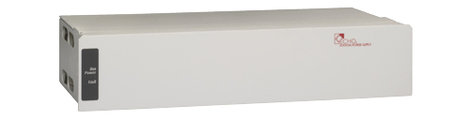

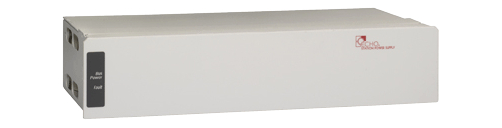

ETC/Elec Theatre Controls E-SPM
EchoConnect Station Power Supply Module

OUR PART #:  E-SPM

With the ETC E-SPM EchoConnect Station Power Supply Module , you get up to 1640 feet (500 meters) of EchoConnect power for up to 16 Echo control system stations...
Learn More
Our Price: $285.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls E-SPM
Qty:
In Stock

Similar Products

With the ETC E-SPM EchoConnect Station Power Supply Module , you get up to 1640 feet (500 meters) of EchoConnect power for up to 16 Echo control system stations, as well as responsive controls, plus up to 16 power controllers and power control panels.

Plug-and-play
No required software or programming means easy setup of your Unison Echo™ system. EchoConnect Station Power Supplies offer flexible infrastructure and topology-free control wiring making overall setup remarkably stress-free.

It's easy being green
The Unison Echo Control system was specifically developed with your energy concerns in mind. Keeping green has never been easier - the complete line of Echo products gives you maximum energy savings while adhering to the growing number of industry energy codes, including ASHRAE 90.1, CA Title 20/24 and IECC, all without breaking the bank.

Applications:

  • Houses of worship
  • Education
  • Hospitality
  • Healthcare facilities
  • Office buildings
  • Conference rooms
  • Meeting rooms
  • Retail

ETC E-SPM EchoConnect Station Power Supply Module Features:

  • Designed for use with any EchoConnect-enabledstation, Responsive Controls or Echo Power Controllers
  • EchoConnect: Two-wire, topology-free system gives youthe freedom to put stations where you need them
  • Multiple form factors and mounting options available
  • Plug and play: ready to go out of the box, no software or programming required
  • System Limitations:
    • Up to 500 meters (1640 ft) of control wiring
    • DRd, Wall- and Rack-Mount:
      • Up to 16 stations and Responsive Controls
      • Up to 16 power controllers or panels
    • Echo Station Power Supply:
      • Up to 6 stations and Responsive Controls
      • Up to 6 power controllers or panel
  • UL and cUL Listed
  • CE Marked

ETC E-SPM EchoConnect Station Power Supply Module Specifications:

  • Functional:
    • Provides EchoConnect power for up to 6 or 16 stations, or Responsive Controls and 6 or 16 power controllers or panels
    • Supports 500 meters (1640 feet) of control wiring from the DRd enclosure
  • Mechanical:
    • Echo Station Power Supply:
      • Mounts using half-inch conduit knockout
      • Constructed of injection-molded ABS plastic
    • DRd, Wall- and Rack-Mount:
      • 18-gauge formed steel construction
      • Fine-texture, scratch-resistant, epoxy paint
      • Convection cooled
      • Fully-contained plug-in module with no discretewire connections (DRd only)
      • Front panel status indicators
      • Wall-mount and 19-inch rack-mount variants available
  • Electrical:
    • 100V-277V, 50/60Hz, two-wire+GND power input
    • Optional 24V Aux power options for connected devices
    • EchoConnect two-wire control network utilizing low-voltage Class 2 wiring
    • Topology-free and polarity-independent wiring over Belden 8471 or equivalent and one #14 ESD drain wire
    • Wiring may be bus, loop, homerun or any combination of these
    • Up to 500 meters (1,640 feet) of control wiring per system
    • Supports optional Cat5 or better wiring using Belden 1583A or equivalent
      • Requires optional Cat5 termination accessories
    • UL and cUL Listed
    • CE Marked
  • Physical:
    • Dimensions: 2.6" H x 12.2" W x 5.9" D (67 x 310 x 150mm)
    • Weight: 4.8 lbs (2.18 kg)
    • Shipping Weight: 5.8 lbs (2.63 kg)
  • Environmental:
    • Echo Station Power Supply:
      • Ambient room temperature: 0-50°C / 32-122°F
      • Ambient humidity: 5-95% non-condensing
    • DRd, Wall- and Rack-Mount
      • Ambient room temperature: 0-40°C / 32-104°F
      • Ambient humidity: 10-90% non-condensing
